HOBBY KITS    (battery not included)
( Soldering required.   Buyers who do not have basic soldering skills & knowledge in electronics
are advised not to purchase these kits)



 9V batteries, button cells & soldering accessories & tools available at MR DIY stores


ES-45
Single Chip FM Stereo
Earphone Radio

(comes with a high quality
branded earphone)

[schematic]
RM 18.00   (without CR2032 battery)

 ES-38

  Speaker Protector for
Stereo Power Amp
     [schematic]

RM 25.00

ES-40

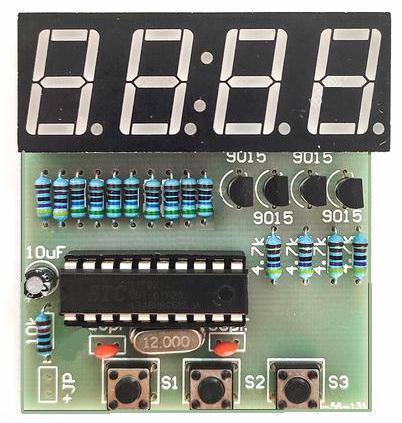

4-Digit Digital Clock Kit

(24 hour format)

(DC 4.5 - 6 V)

[schematic]

RM 20.00



ES-42

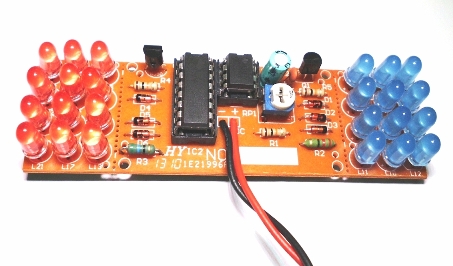

RED / BLUE LED Warning Strobe Lights

  [schematic]    RM 19.00

ES-43

 Sound / Music Controlled Flashing LED Kit
(DC 3V)
[schematic]      RM 11.50
ES-44

LED Fader Kit
(DC 9 ~ 12V )

[schematic]      RM 14.00

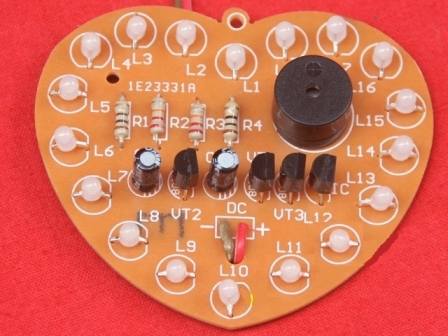

ES-41

Heart shape 2-colour Flashing LED Board with Music
  [schematic]
(DC 3 ~ 5V)


      RM 15.50



Lights, Sound, Games,..


ES-02

16-LED Running Lights Kit
 [schematic]    RM 16.50

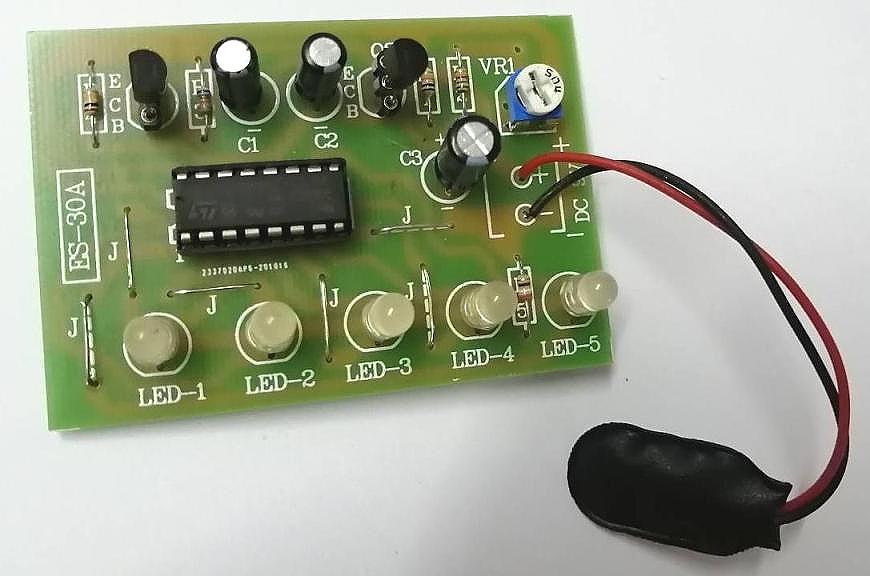

ES-30A

2-colour LEDs Knight Rider
Running Lights Kit
   [schematic]
RM 14.40

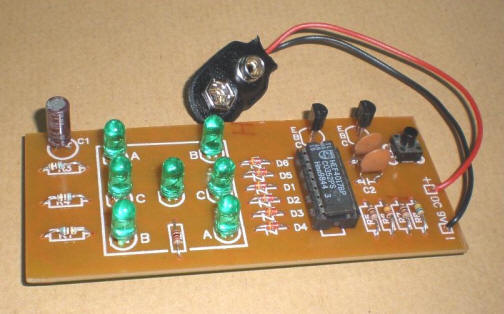

ES-05

Electronic Dice
 [schematic]
RM 15.40



ES-16

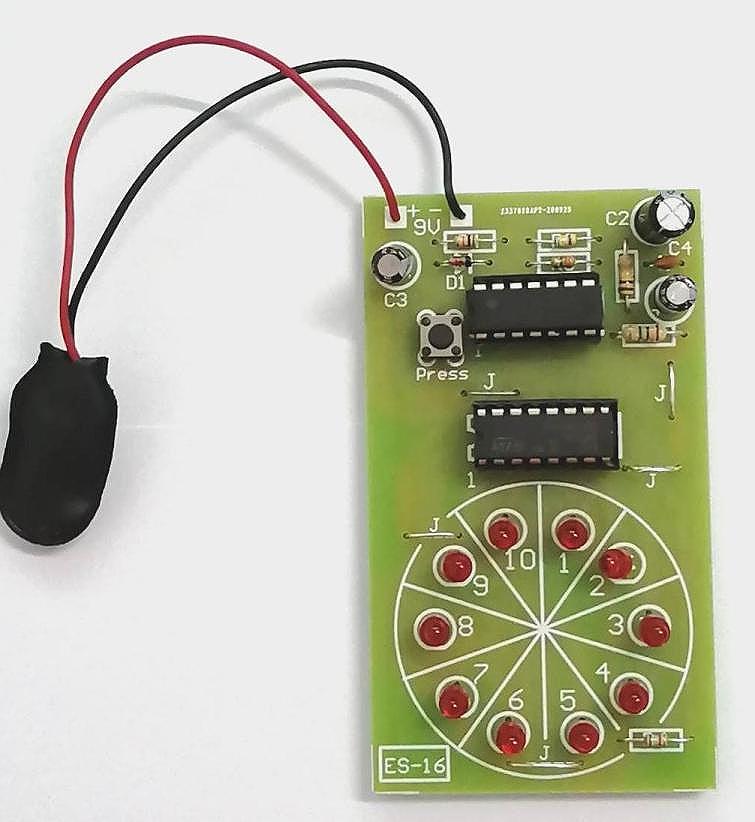

Wheel -of-fortune
  (10-LED's)
   [schematic]
RM 16.50

ES-04A

4-LED Flasher Kit
  [schematic]
RM 7.50

 ES-03

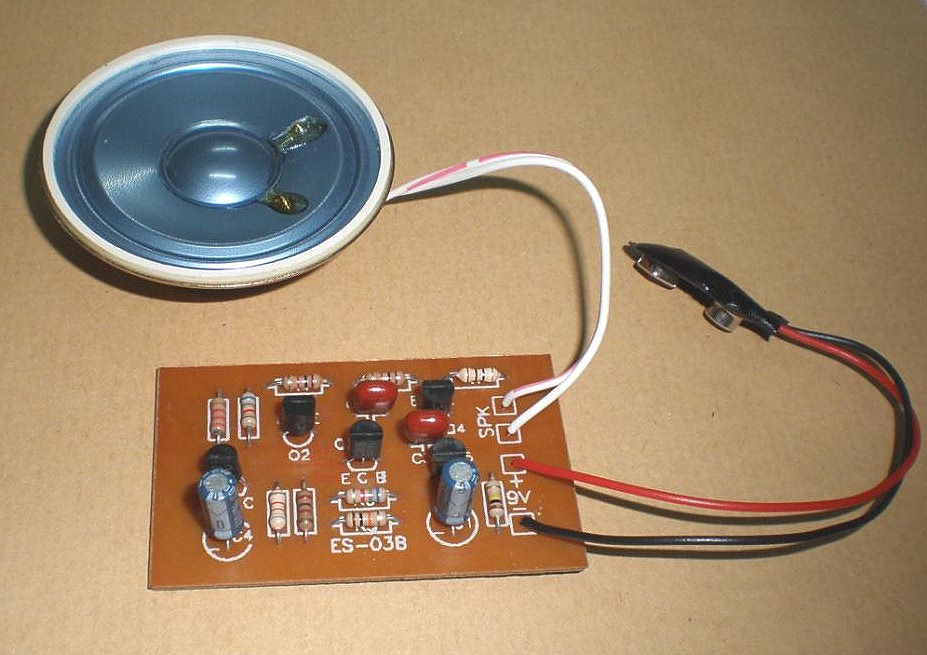

Transistor Electronic Siren Kit
[schematic]   RM 14.00

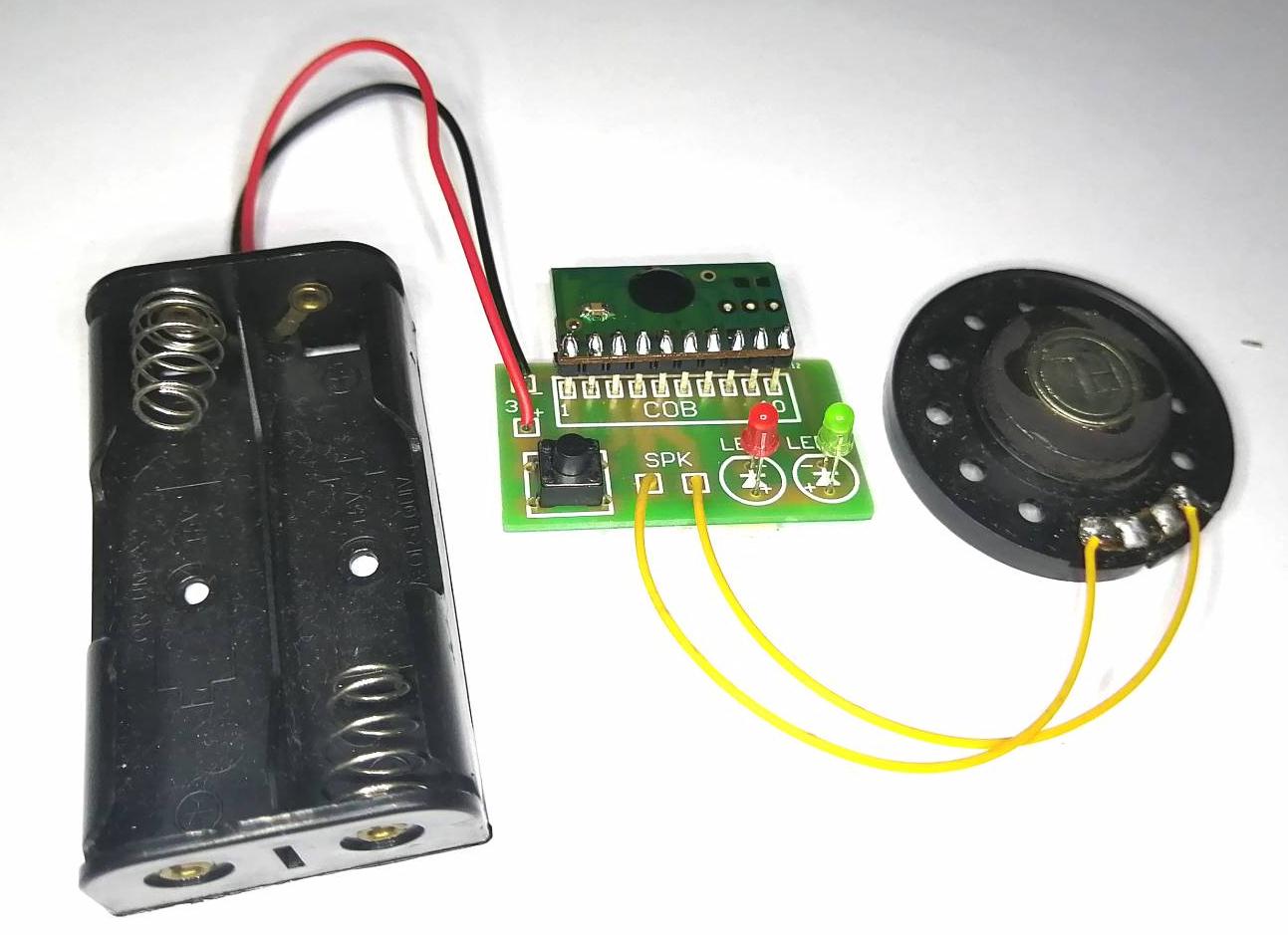

ES-08

 12 Melody Door Chime with blinking LEDs

[schematic]   RM 18.00

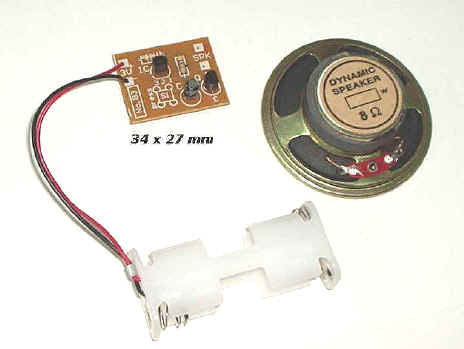

 ES-08A

Melody Module
(one melody)
[schematic]
   RM 14.00

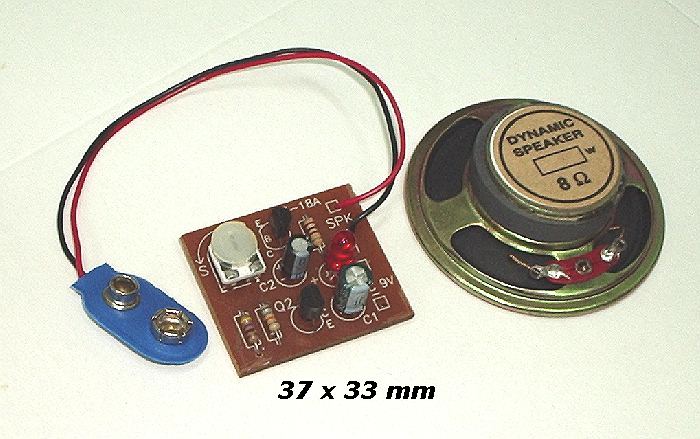

ES-18

Metronome with Flashing LED

[schematic]  RM 10.00

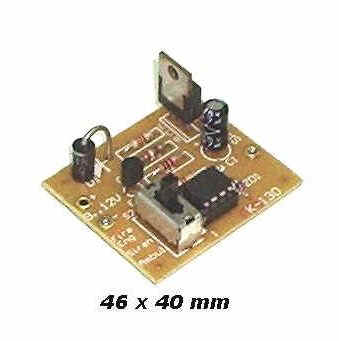

ES-130
4-Sound High Power Siren Driver Circuit
 (DC 9~12V)
 (Horn speaker NOT INCLUDED)
(Siren / Ambulance / Fire engine / Machine gun)    [schematic]

RM 13.80

ES-120A

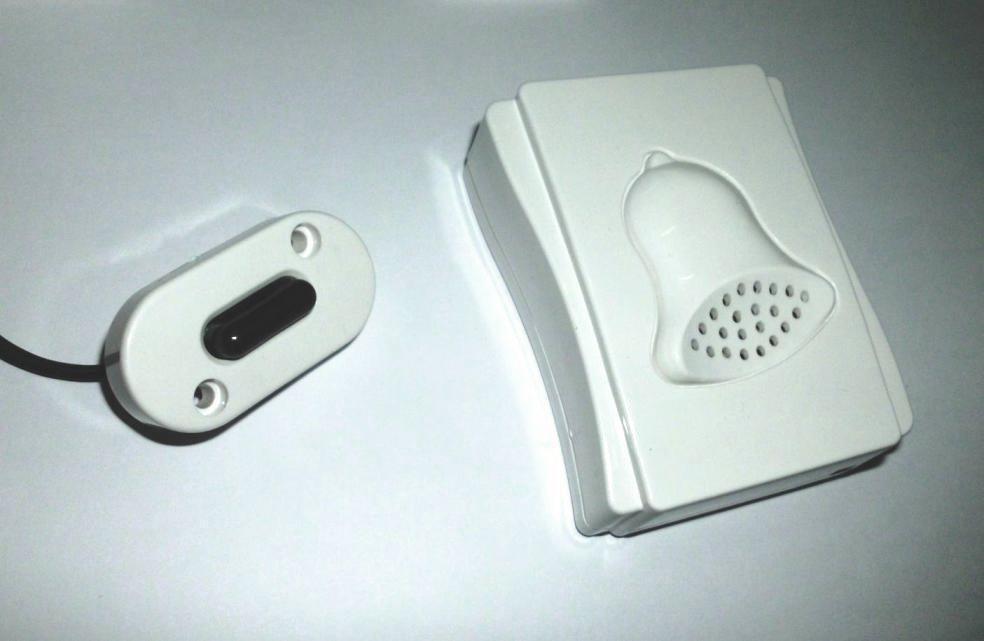

Single Melody Door Chime Kit
1 simple melody or ding dong sound,  randomly shipped
 (DC3V)    [schematic]

RM 12.60

ES-23

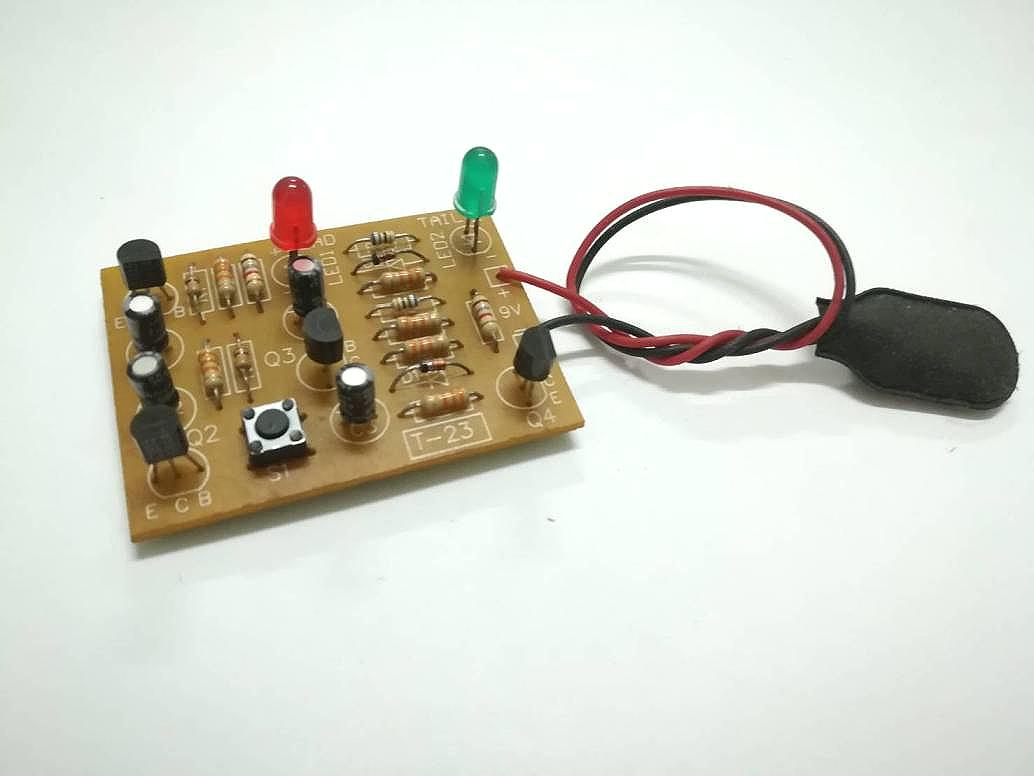

Electronic "HEADs" or "TAILs"

 [schematic]    RM 9.50

ES-34

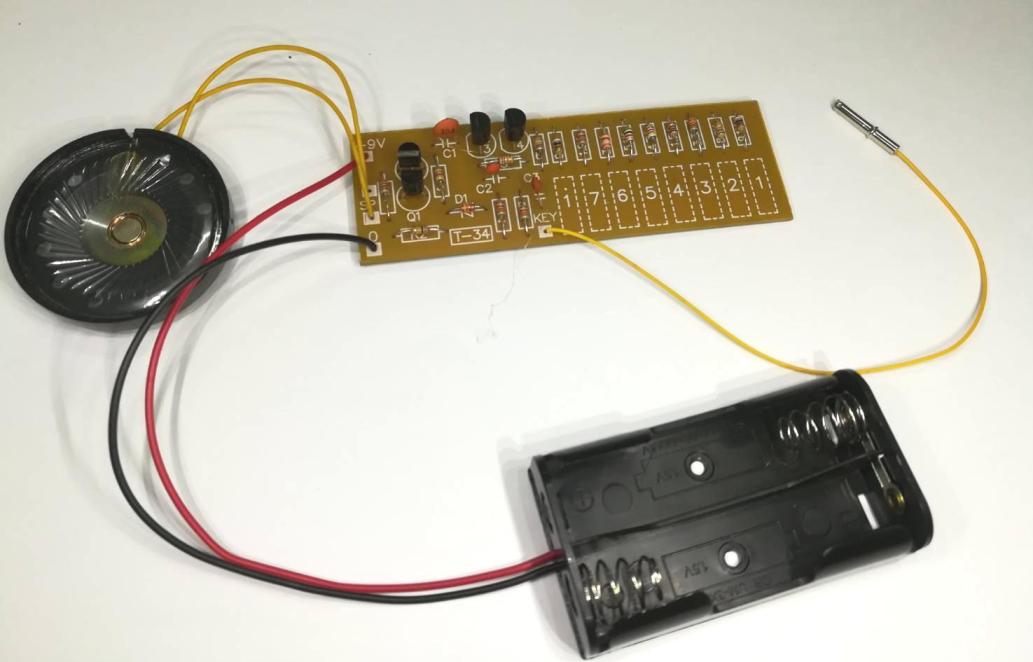

Simple Electronic Organ
  [schematic]
RM 13.50



ES-110

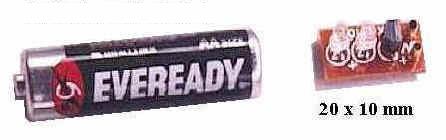

Miniature 2 Super Bright LEDs Flasher (DC3V)       [schematic]

RM 6.80



FM transmitter,  Remote Control, Counters, Automatic control,..


ES-06

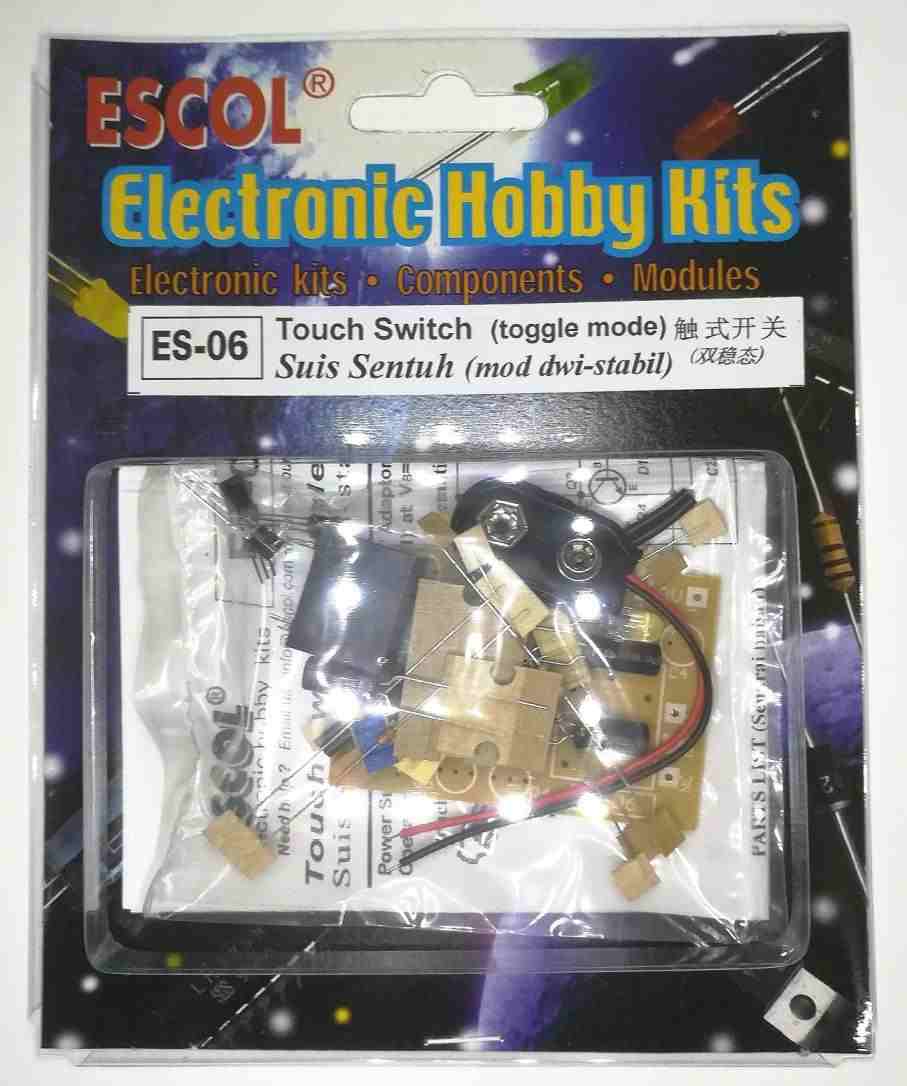

 Touch Switch    (toggle mode)

  [schematic]   RM 12.90

New,   2-in-1
DARK / LIGHT Detector

ES-07A

Light Control Relay
( 2 in 1 ) Dark/Light Detection mode
 [schematic]     RM 12.80

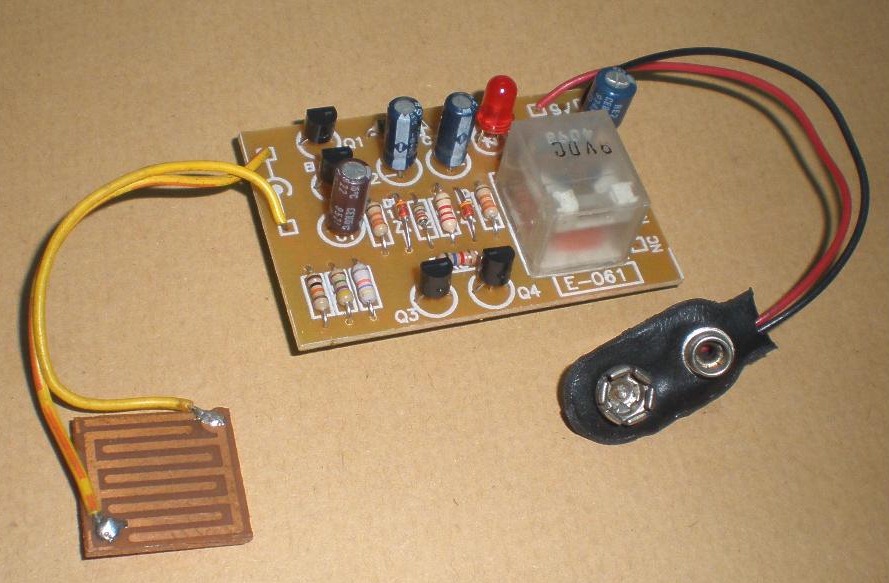

ES-10

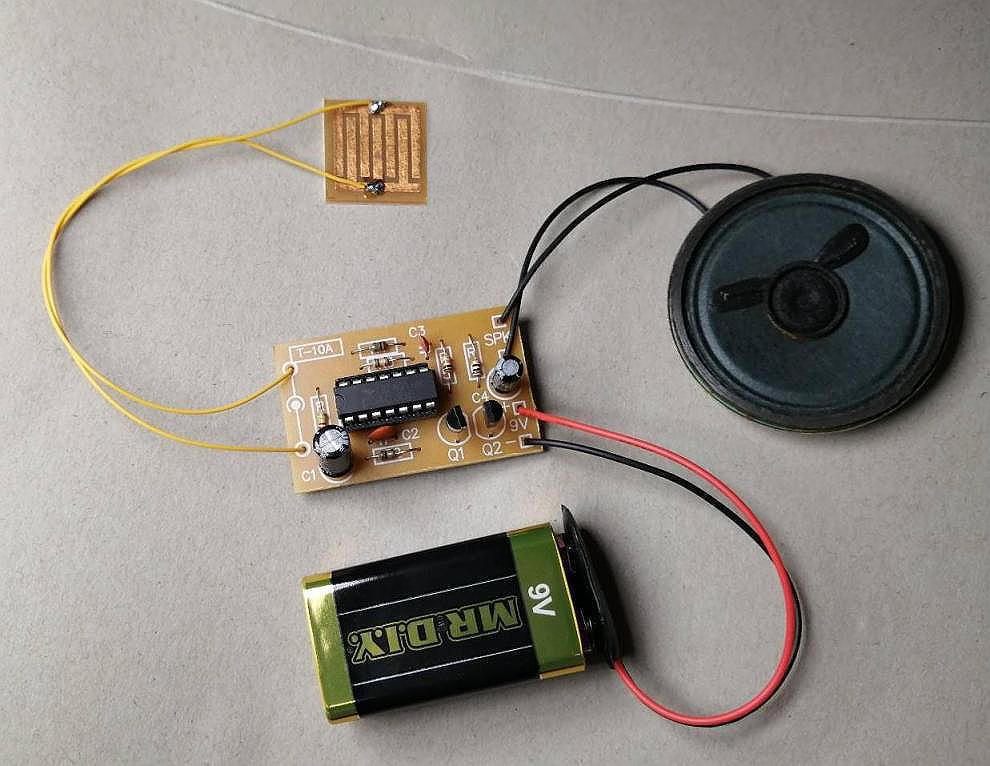

 Rain / Water Level Detector Kit     [schematic]

RM 12.60

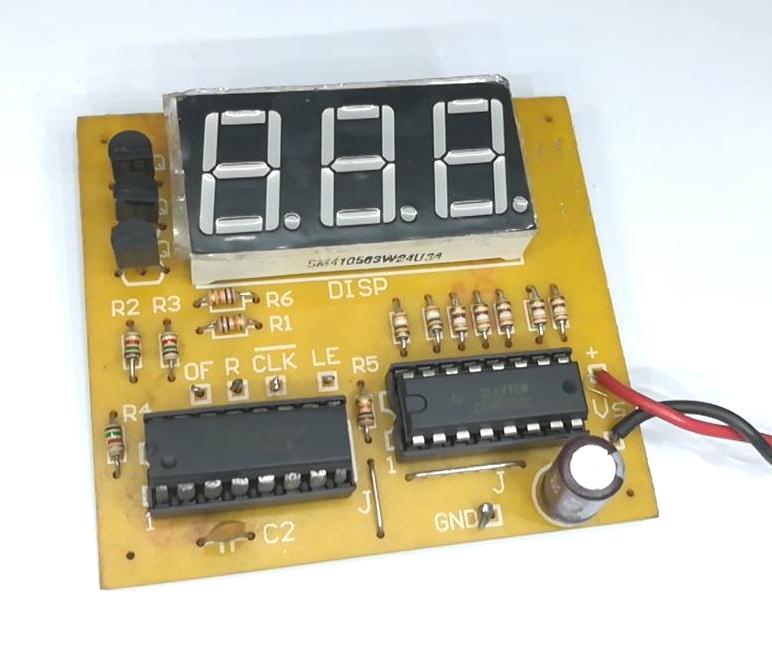

ES-12 (V 1.1)

3-Digit Up Counter

(Full functions : Reset, Clock, Overflow opt, Latch) enable)
 (Vs=+ 5 ~ 10V)     [schematic]


RM 38.00

ES-13

 Sound Actuated Switch
 (bistable mode)   [schematic]

RM 17.20


ES-14

0.5~100 Sec. IC Timer Kit
[schematic]

RM 18.50

ES-15

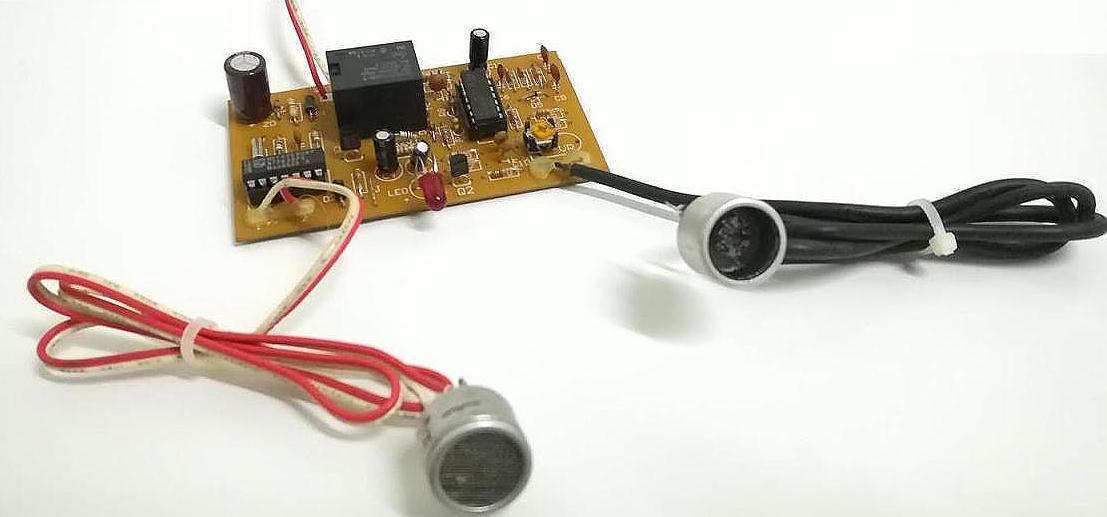

Ultrasonic Motion Detector
( with  plastic enclosure )  [schematic Ver.2]

RM 54.00

ES-17

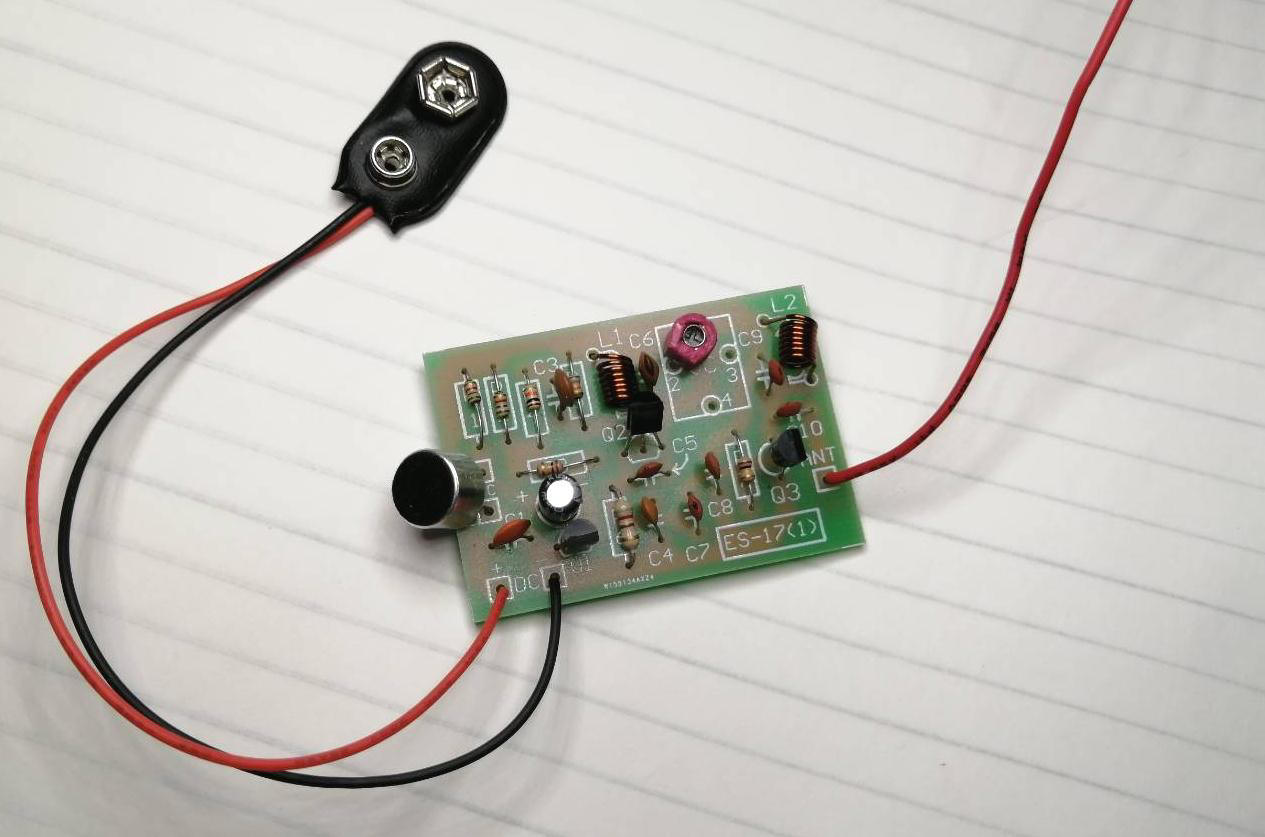

 FM Wireless Microphone
[schematic]  RM 12.40

Ceramic tuning tool

(for trimmer cap or coil adjustment)

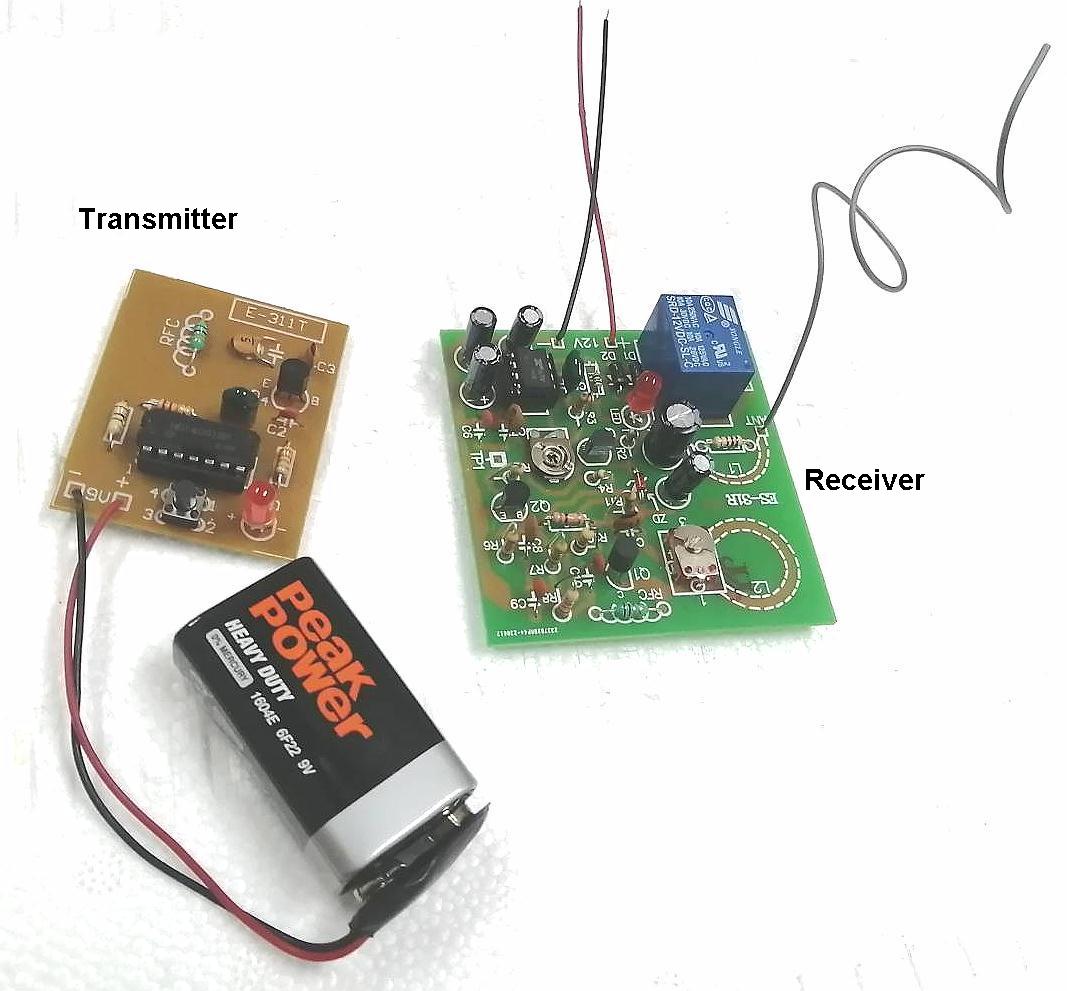

ES-31


UHF Radio Control Experiment
( Mode of operation :  "momentary" )
[schematic]

 RM 33.50



ES-160

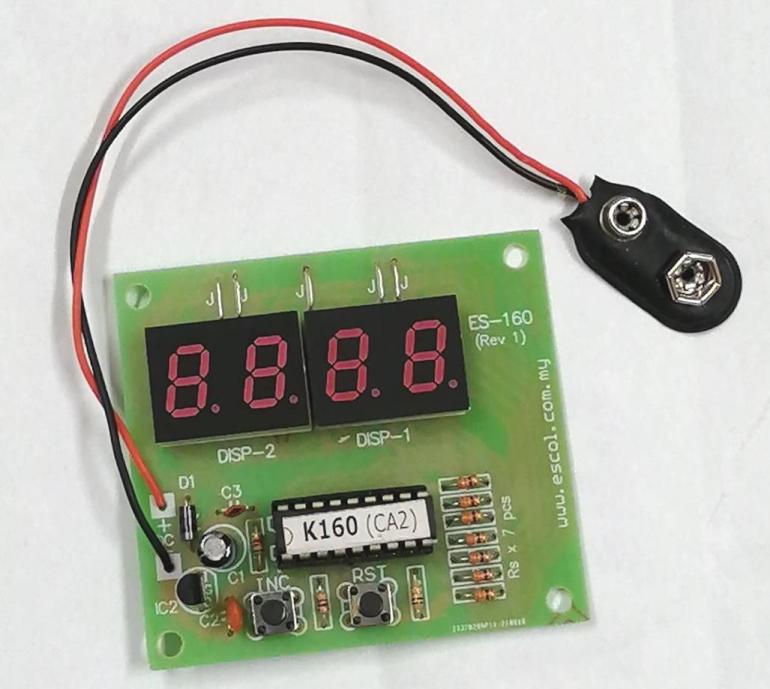

4-Digit Up Counter  (0 ~ 9999)
(DC 9~15V)   [schematic]
    RM  26.00

ES-180

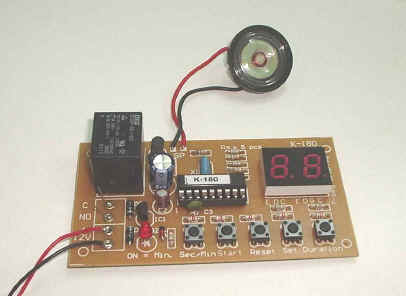

Countdown Timer with 2-digit displays & buzzer (DC12V)
 2-ranges: (1) 1~99 sec    (2) 1~99 min.
  [schematic]
RM  36.70

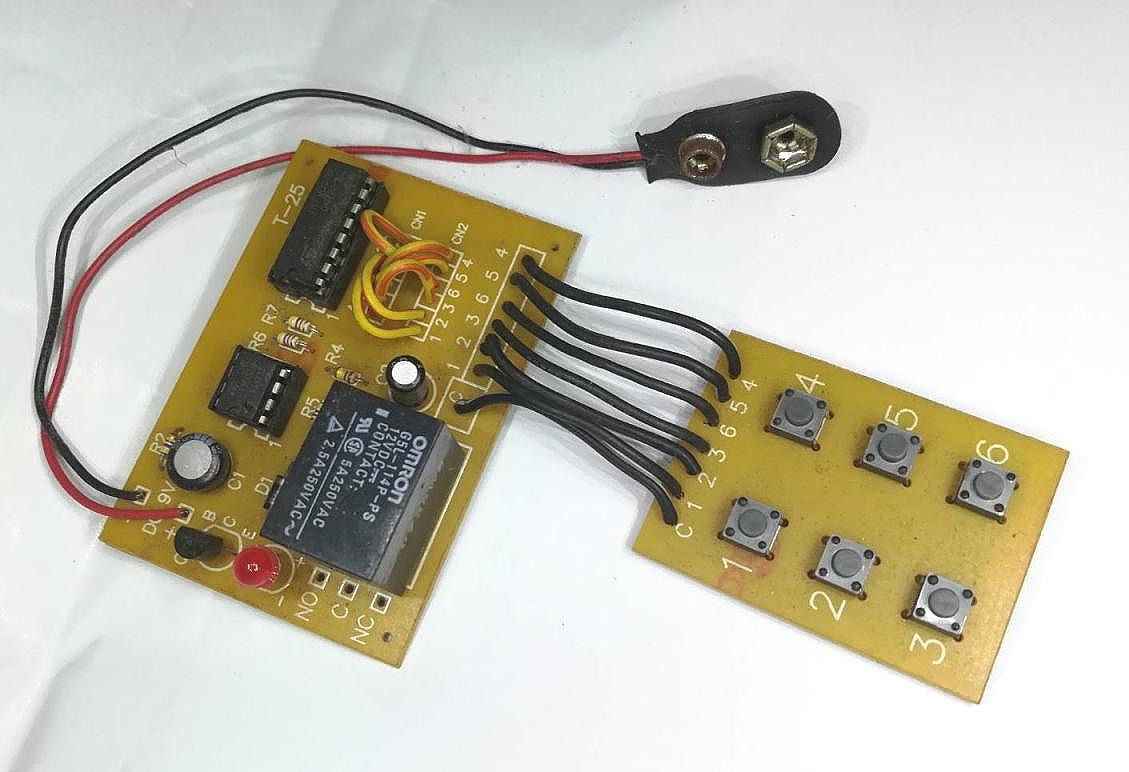

ES-25

Digital Combination Lock    [schematic]

RM  23.60

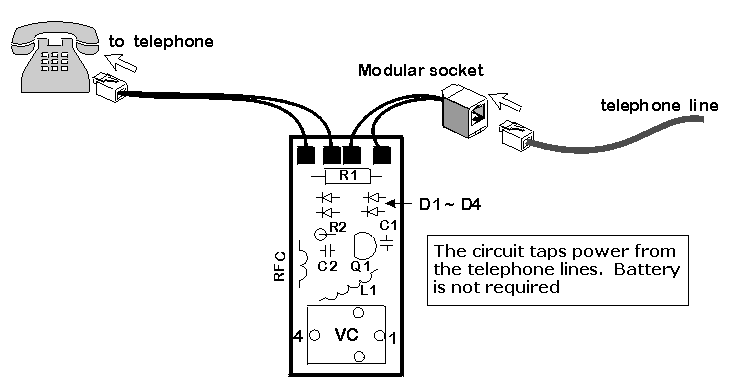

ES-170

Telephone FM Transmitter
  (battery not required)
  [schematic]

RM 12.50

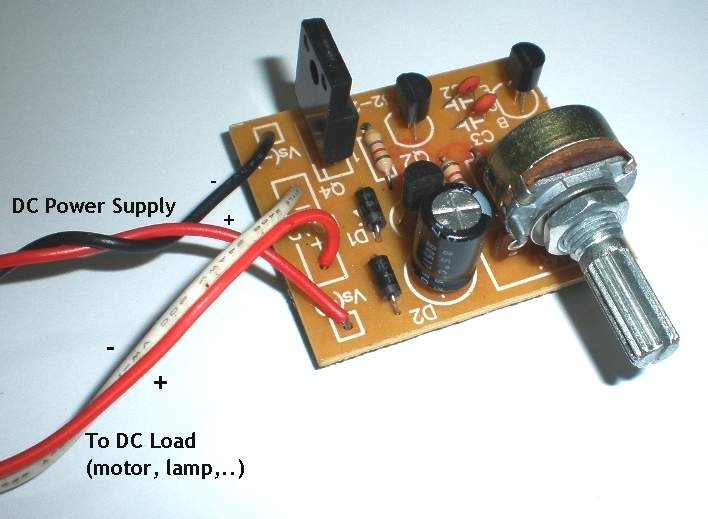

ES-32

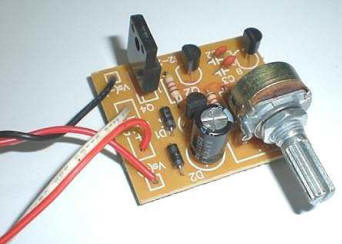

 PWM DC Light Dimmer / Motor Speed Controller Kit   [schematic]

RM 12.50

Ceramic tuning tool    (for trimmer cap or coil adjustment)

    suitable for ES-17,  ES-170, ES-31

ES-35

Door Knob Alarm     [schematic]


RM  17.50



ES-150

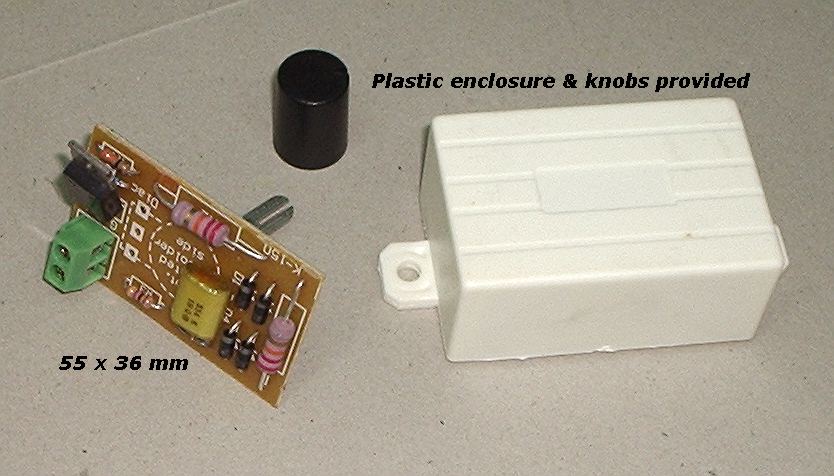

Mains Operated Light Dimmer (AC 230V, 600W)
(plastic box color : white or black)   [schematic]

RM 20.00


ES-28

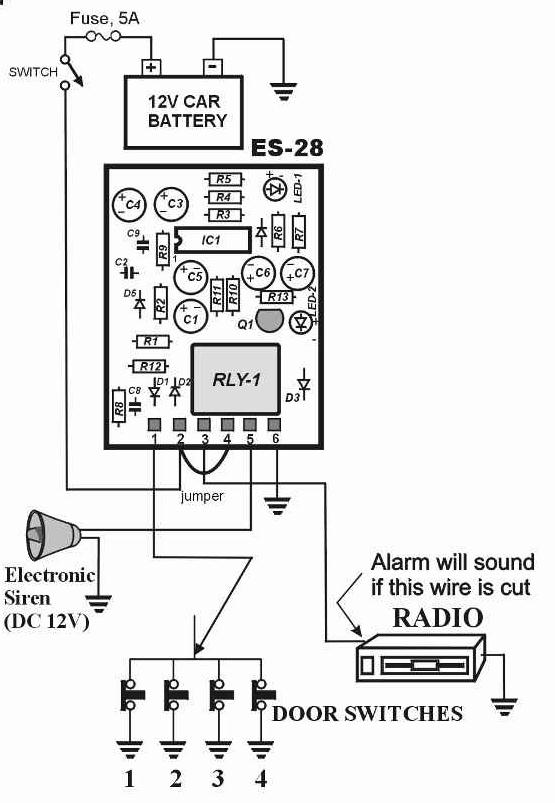

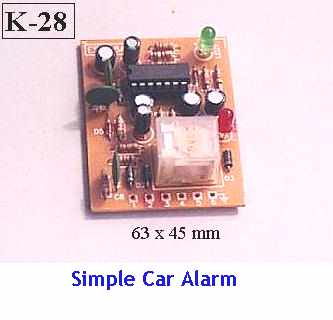

Simple Car Alarm Kit    [schematic]

RM 16.00




Audio, Power supply,  instruments, ...


ES-09B

Regulated DC Adaptor :    [schematic]
 2.5V, 3V, 5V, 6V, 9V, 12V   (@ 200 mA)

* Power transformer included *  RM 20.00

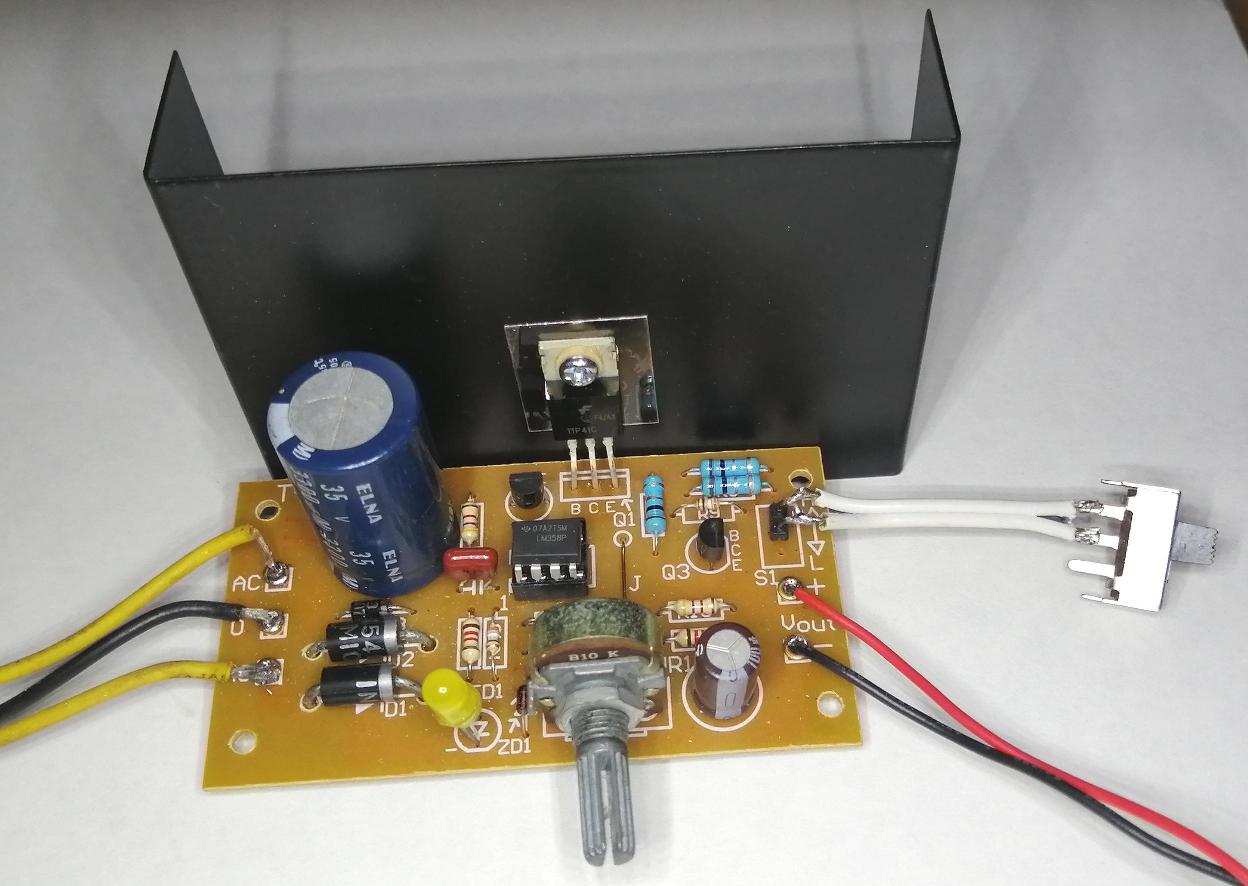

ES-29

DC 0~24V Adjustable Regulated Power Supply (0.6A/1.5A )    [schematic]

RM  27.00

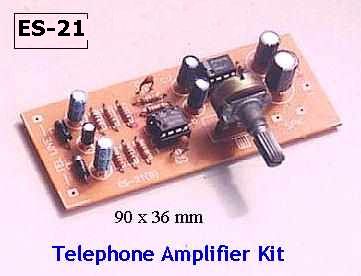

ES-21

Telephone Amplifier Kit   [schematic]

RM 24.00

ES-11

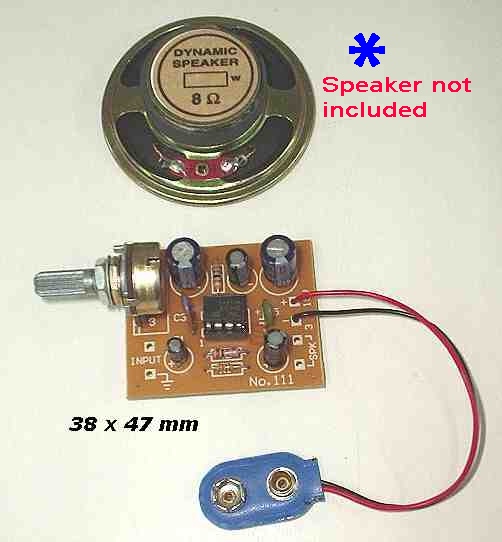

 1W IC Audio Power Amplifier

(Vs=+3V ~15V)   [schematic]   (Speaker not included)

RM 14.30

ES-22


 Simple Logic Probe    [schematic]

RM 10.00

 ES-38

  Speaker Protector for
Stereo Power Amp
     [schematic]

RM 25.00


List of available models by model #

Model Description Unit price
RM
ES-01A

 Singinng Bird Door Bell      [schematic]
LOCENG PINTU NYANYNIAN BURING

12.00
ES-02

 16-LED Running Lights Kit   [schematic]  (2 LEDs spin around a rectangle)
KIT  LAMPU  BERPUTAR 16 LED

16.50
ES-03

 Transistor Electronic Siren Kit  [schematic]
KIT SIREN  ELEKTRONIK

11.70
ES-04A

 4-LED Flasher Kit    [schematic]
KIT  PENGELIP  4 LED

   7.50
ES-05

 Electronic Dice    [schematic]
DADU  ELEKTRONIK

 15.40
ES-06

 Touch Switch     [schematic]  (toggle mode)
SUIS  SENTUH (mod dwi-stabil)

 12.90
ES-07A

 Light Control Switch   (2-in-1, Light/Dark detector)  [schematic]
SUIS KAWALAN  CAHAYA (LDR)

 12.80
ES-07
(old version)

(discontinued)
ES-08
 (Apr 2023)

 12 Melody Door Chime with blinking LEDs  (12 English melodies)  [schematic]
LOCENG PINTU MELODI DENGAN LED BERKELIP

18.00
ES-08
old version)
(discontinued)
ES-08A

 Melody Module (one melody)    [schematic]
MODUL  BER-IRAMA  (satu irama)

 14.00
ES-09B

 Regulated DC Adaptor :   2.5V, 3V, 5V, 6V, 9V, 12V  (@ 200 mA)   [schematic]
  * Power transformer included *

 20.00
ES-10

 Rain / Water Level Detector Kit     [schematic]
PENGESAN  HUJAN  /  PARAS  AIR

12.60
ES-11

 1W IC Audio Power Amplifier (Vs=+3V ~15V)   [schematic]
PENGUAT  KUASA AUDIO  IC 1W,  3-15V     (Speaker not included)

14.30
ES-12

 3-Digit Up Counter     (Vs=+ 5 ~ 10V)     [schematic]
MODUL  PEMBILANG  3  DIGIT
 (Full functions :  Reset,  Clock,  Overflow output, Latch enable)

38.00
ES-12
(old version)

(discontinued)
ES-13

 Sound Actuated Switch (bistable mode)   [schematic]
SUIS  TERAKTIF SUARA  (mod dwi stabil)

17.20
ES-14

 0.5~100 Sec. IC Timer Kit    [schematic]
KIT  PEMALAR MASA  IC  (0.5-100 SAAT)

18.50
ES-15

 Ultrasonic Motion Detector  ( with  plastic enclosure )  [schematic Ver.2]
SENSOR  PENGESAN  GERAKAN  ULTRASONIK

54.00
ES-16

 Wheel -of-fortune  (10-LED's)   [schematic]
RODA  BERTUAH

16.50
ES-17

 FM Wireless Microphone    [schematic]
MIKROFON  FM  TANPA  WAYAR

12.40
ES-18

 Metronome with Flashing LED    [schematic]
METRONOME  DENGAN  LED  BERKELIP

10.00
ES-21

 Telephone Amplifier Kit   [schematic]
PENGUAT  TELEFON

24.00
ES-22

 Simple Logic Probe    [schematic]
KUAH LOGIK MUDAH

10.00
ES-23

 Electronic "HEADs" or "TAILs"
"KEPALA  DAN  EKOR"  (permainan meneka siling)     [schematic]

 9.50
ES-25

 Digital Combination Lock  (two ICs)   [schematic]
KUNCI CANTUMAN DIGITAL

23.60
ES-25
(old version)

(discontinued)
ES-28

 Simple Car Alarm Kit    [schematic]
KIT PENGGERA KERETA

16.00
ES-29

 DC 0~24V Adjustable Regulated Power Supply (0.6A/1.5A )
BEKALAN KUASA DC 0-24V (0.6A/1.5A)    [schematic]

27.00
ES-30A

 2-colour LEDs Knight Rider Running Lights Kit   [schematic]
(1-row of LED's swinging left & right, changing colors with direction)

KIT 5-LED BERPUTAR `KNIGHT RIDER'

14.40
ES-31

 UHF Radio Control Experiment  (momentary)   [schematic]
KIT PERCUBAAN KAWALAN RADIO  (Remote Control)

33.50
ES-32

 PWM DC Light Dimmer / Motor Speed Controller Kit   [schematic]
PEMALAP LAMPU/PENGAWAL KELAJUAAN MOTOR DC (6->15V)

12.50
ES-34

 Simple Electronic Organ    [schematic]
ORGAN  ELEKTRONIK  MUDAH

13.50
ES-35

 Door Knob Alarm     [schematic]
PENGGERA  TOMBOL  PINTU

 17.50
ES-36

 Infra-red Remote Control Kit (momentary/toggle)
SUIS KAWALN JAUH INFRA-MERAH (momentary / toggle)     [schematic]

43.00
ES-38

 Speaker Protector for Stereo Power Amp
PELINDUNG SPEAKER UNTUK PENGUAT KUASA STEREO   [schematic]

25.00
ES-40

 4-Digit Digital Clock Kit  (24 hour format)   (DC 4.5 - 6 V)   [schematic]
KIT JAM DIGITAL 4-DIGIT

20.00
ES-41

 Heart shape 2-colour Flashing LED Board with Music   [schematic]  (DC 3 ~ 5V)
Papan LED Berkelip 2-warna dengan Muzik

15.50
ES-42

 RED / BLUE LED Warning Strobe Lights    [schematic]
(DC 9/12V)  Works best at 12V
Lampu Strobe Amaran LED MERAH / BIRU

19.00
ES-43

 Sound / Music Controlled Flashing LED Kit    (DC 3V)  [schematic]
Kit LED Berkelip Dikawal Suara & Muzik

11.50
ES-44

 LED Fader Kit   (DC 9 ~ 12V )    [schematic]

14.00
ES-45

Single Chip FM Stereo Earphone Radio   [schematic]  (battery not included)

18.00
ES-46

Temperature Controlled Relay / Heat Alarm  (DC 9V)  [schematic]
Relay Terkawal Suhu / Penggera Panas

13.50
ES-110

Miniature 2 Super Bright LEDs Flasher (DC3V)       [schematic]
Pengelip  LED

  6.80
ES-120A

Single Melody Door Chime Kit (1 simple melody or ding-dong sound  randomly shipped )  (DC3V)    [schematic]
Loceng Pintu 1 Irama atau Ding Dong

12.60
ES-130

4-Sound High Power Siren Driver Circuit  (DC 9~12V) (Horn speaker NOT INCLUDED)  (Siren / Ambulance / Fire engine / Machine gun)   [schematic]
Siren berkuasa (4 jenis suara)

13.80
ES-150

Mains Operated Light Dimmer (AC 230V, 600W)    [schematic]
Pemalap Lampu AC 230V

20.00
ES-160

4-Digit Up Counter  (0 ~ 9999) (DC 9~15V)   [schematic]
Pembilang 4-digit (microcontroller)

  26.00
ES-160
(old version)
(discontinued)
ES-170

 Telephone FM Transmitter  (battery not required)    [schematic]
 Memancar Telefon FM Tanpa Wayar  (batery tidak diperlukan)

12.50
ES-180

 Countdown Timer Relay with 2-digit displays & buzzer (DC12V)
 2-ranges: (1) 1~99 sec    (2) 1~99 min.
  [schematic]
 Pemasa countdown dengan relay, buzzer & 2 digit display

36.70



 Upgraded Models

Model Replaced by or
upgraded to
  Description Unit price
RM
ES-07 ES-07A
(current version)
Upgraded

with new circuit. Light/Dark detection modes

 Light Control Switch     [schematic]

SUIS KAWALAN  CAHAYA (LDR)

 12.80
(unchanged)
ES-12
(old ver)
ES-12
(current version)
3 single LED displays replaced by a single 3-digit display

 3-Digit Up Counter     (Vs=+ 5 ~ 10V)     [schematic]

MODUL  PEMBILANG  3  DIGIT

38.00
(unchanged)
ES-25
(old ver)
ES-25
(current version)
Upgraded  with
new circuit

 Digital Combination Lock  (one IC)  [schematic]
 KUNCI CANTUMAN DIGITAL

23.60
(unchanged)




  Discontinued Models

Model   Description Unit price
RM
ES-27 Discontinued

3-Way Tone Control Pre-amplifier with on-board regulated power supply
3-HALA (treble/mid-range-bass) PRA-PENGUAT KAWALAN TONE DENGAN `LOUDNESS CONTROL'    [schematic]

58.00
