ES-150     Mains Operated Light Dimmer ( AC 230V )

<<<<<< MORE kits .....  view other available kits >>>>>>

Max load current : 3A  ( without heat-sink )

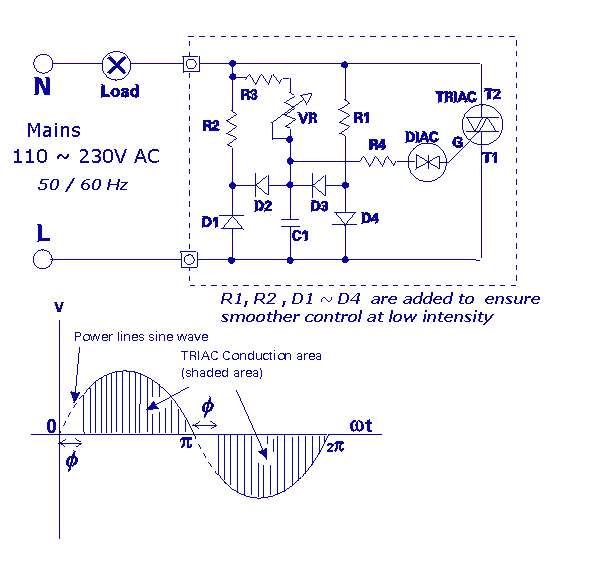

A light dimmer that uses TRIAC & DIAC.  Controls the brightness of  light bulbs.  Based on the standard dimmer circuit. A few additional parts were added to eliminate flickering at low light level. Works better then commercial units.

Plastic enclosure & knob are provided

Datasheet  for BT-136  (pdf)

Datasheet for Z0410MF  (pdf)

Datasheet for DIAC (DB3)  (pdf)

(plastic box color : white or black)
