ES-23      Electronic "HEADs" or "TAILs"
    (DC 5 ~ 9V)

<<<<<< MORE kits .....  view other available kits >>>>>>

This simple circuit lets you play the "coin guessing" game electronically.
You flip the coin by pressing the push button switch (S1) for a few seconds. When released, either LED1 or LED2 will remain lit to indicate the outcome (Head or Tail)

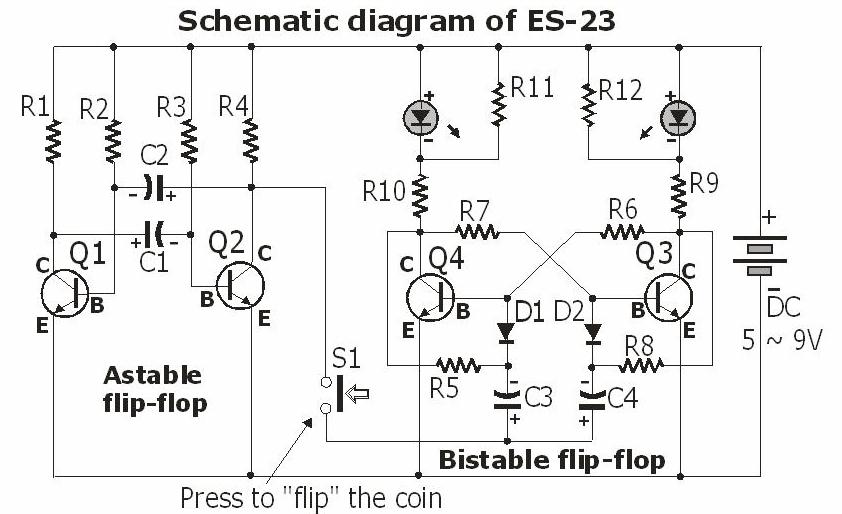

Operation : Transistors Q1 & Q2 form a astable flip-flops that generates a stable square wave. When S1 is pressed, this signal is fed to the bistable flip-flip (Q3 & Q4) which changes states rapidly & flashes the LEDs continuously. When S1 is released, the bistable flip-flop
stops & will be latched  in of the states. One of the LEDs will be on to show the outcome.
