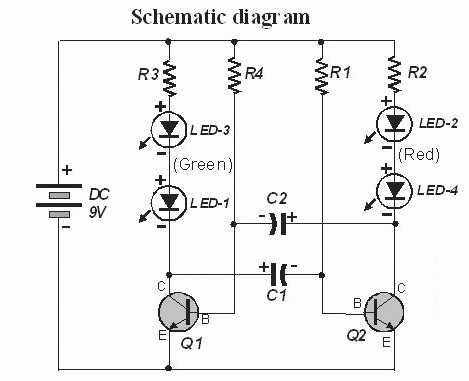

This kit demonstrates the operation of transistor-transistor astable flip-flop. Each transistor drives 2 LEDs in series alternately. Flashing rate can be changed by using different values of the electrolytic capacitors ( C1 & C2) . Runs on 9V battery. Can also operate from 6V supply but with lower LED brightness.
We sold thousands of these kits to schools. A great starter kit for beginners to learn soldering & reading schematic.
Sold without 9V battery. Battery clip included.
