Finished  Products
(  ASSEMBLED , TESTED, READY TO USE  )



click on picture to enlarge
1 receiver +
2
transmitters

 Wiring instruction
2-channel  Remote Control System

Ref. No.  :  RC-220    (assembled & tested)    UHF  ( 315  MHz)

Dual modes : Momentary / Bistable  (select via a slide switch)

Operating Voltage :
AC/DC 12 ~ 24V
Relay Contact : 7A, Normally open

Application :   Auto gate & home appliances remote control


Receiver unit comes with black plastic enclosue

RM 60.00 (nett) / Complete set

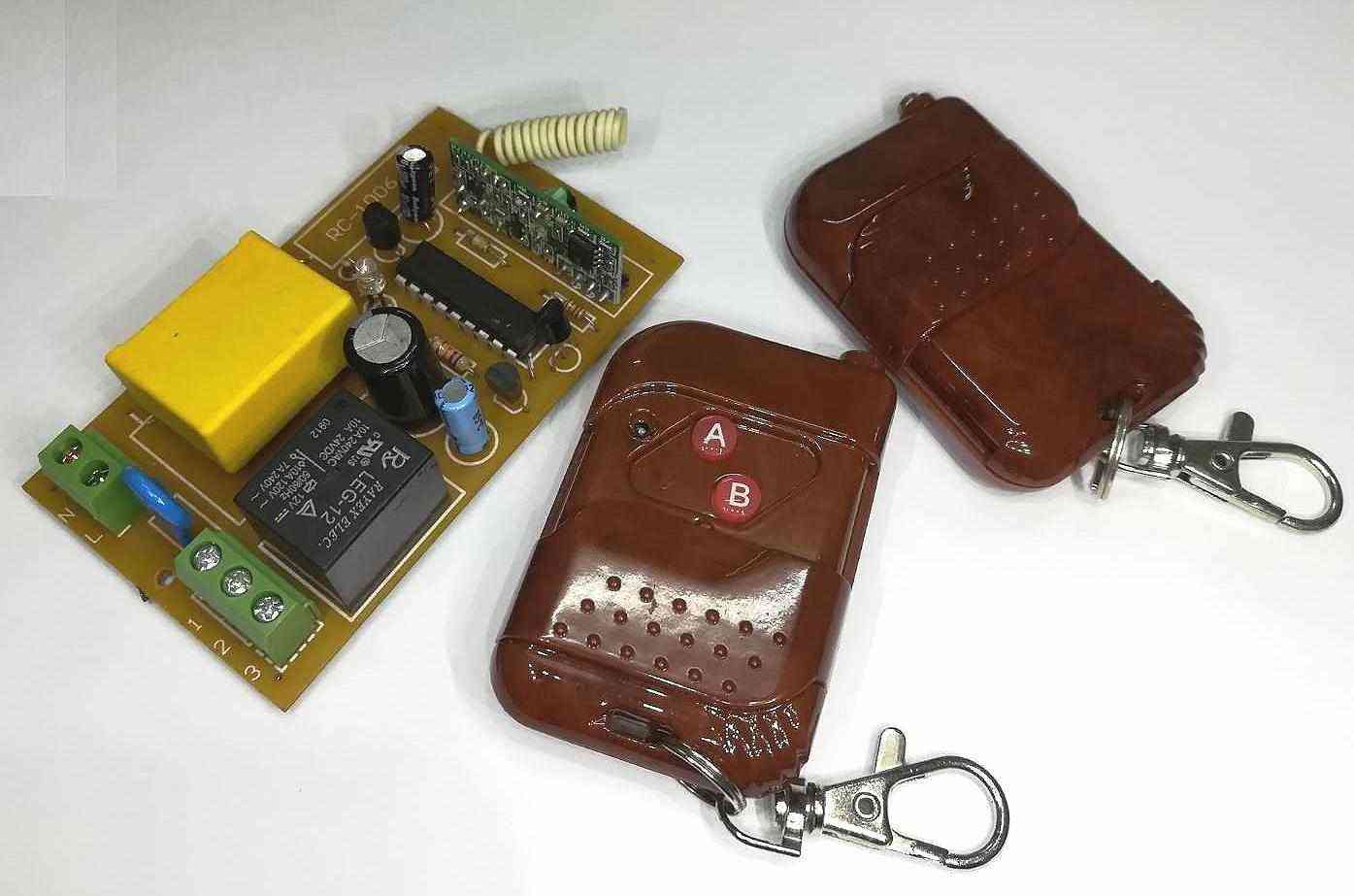

1 receiver (w/o casing)
2 transmitters

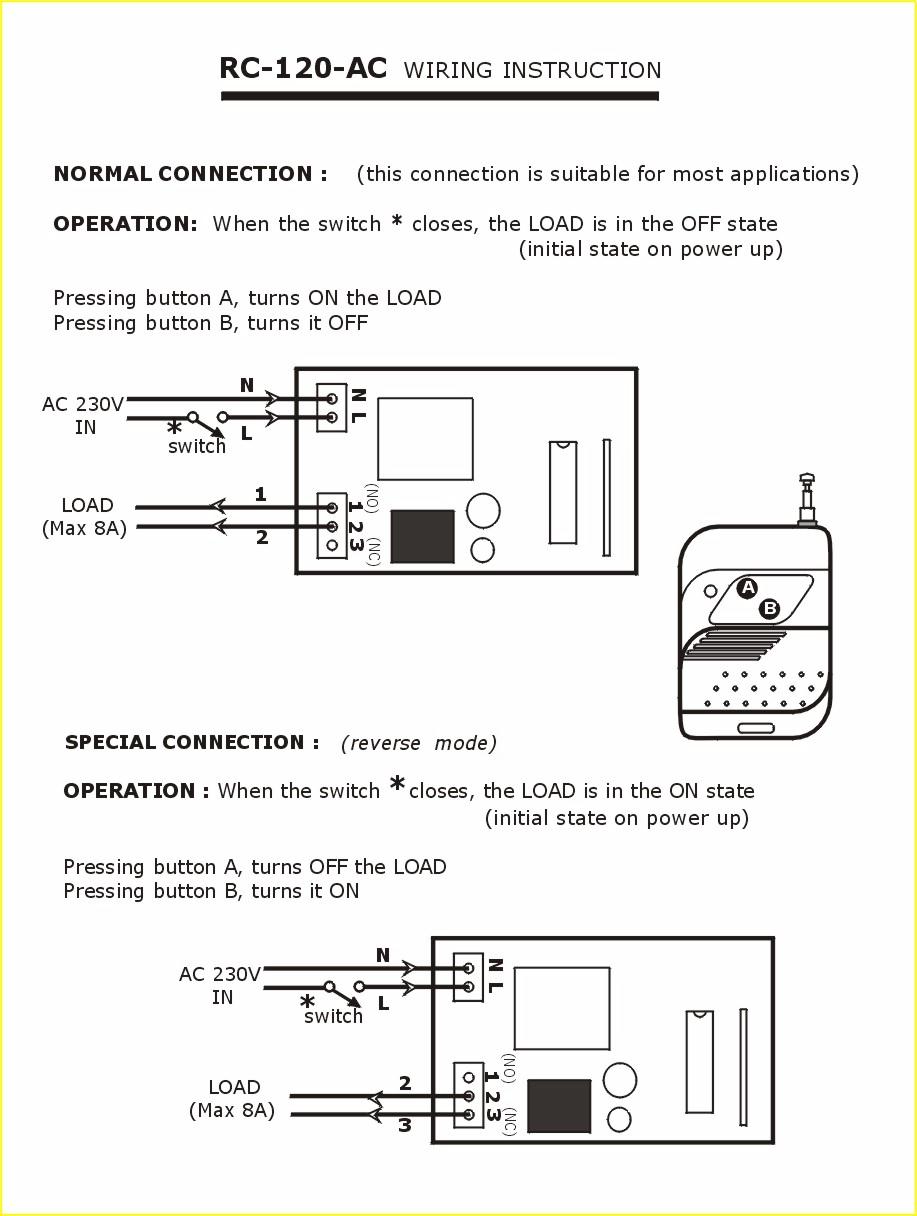

Wiring instruction


1-channel Remote Control System
(Latching mode )

Ref. No. :  RC-120-AC  (assembled & tested)    UHF  ( 315  MHz)


Operating Voltage :  AC 230V
Relay Contact : 8A, Normally open

Application :    home appliances remote control

 Each set consists of :
     *
2 sets pcs. of key-chain  transmitters &
     *
1 receiver board
Receiver unit comes with black plastic enclosue

 RM 50.00 (nett) / Complete set




click on picture to enlarge

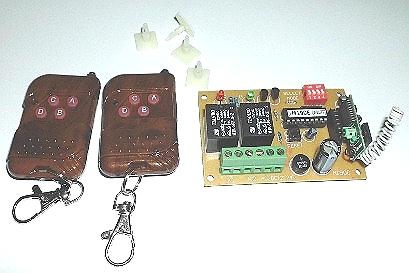

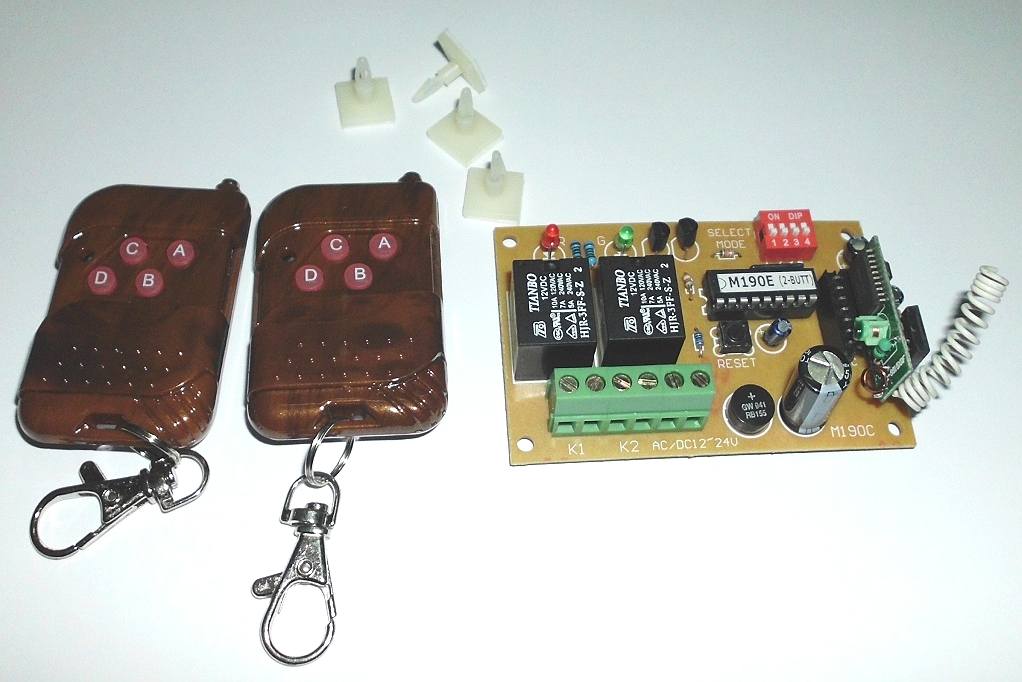

 1 receiver + 2 transmitters

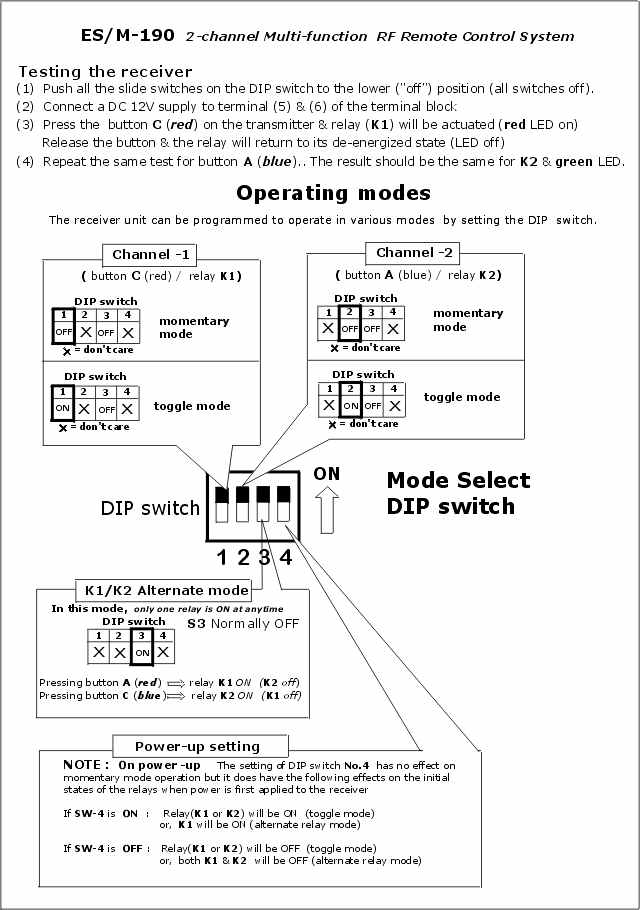

 Programming instruction
Multi-function 2-channel Programmable Remote control.

Ref. No.  :  M-190        (assembled & tested)     UHF  ( 315  MHz)


µC based.  Each channel can be individually programmed to operate in the momentary or toggle mode.

Operating Voltage :  AC/DC 12 ~ 24V
Relay Contact : 7A, Normally open.
Application :
  Auto gate remote control, general purpose remote control,...



  RM 100.00 Complete set




click on picture to enlarge
COLOUR : Black only

Automatic Light Sensor Switch    Ref. No. : M-140
Mains operated : AC 230V  600W max load
Application :
Garage /Corridor lights / Sign board lighting automatic switching. Turns lights OFF  during day time and ON at night

Click here for schematic & details

Installation & operating instruction sheet (pdf)

    RM 10.00 / set (net price)





Download datasheet here
