ES-110     Miniature 2 Super Bright LEDs flasher
( DC 3V)

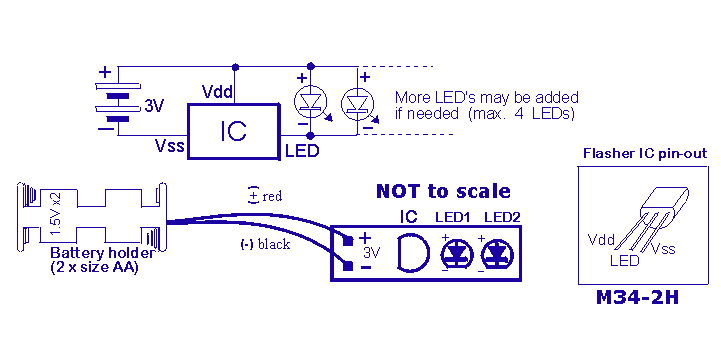

This very tiny circuit flashes 2 super-bright 3mm Red LEDs (may be increased to 4) at a rate of 2 pulses per second  & with an ON/OFF ratio of 1/8. The IC has internal osc which requires no external parts.  The kit can operate continuously for days on 2 pcs of size AA batteries.
Applications : Ideal for use as visual warning device, hazard light, . . .Great for beginners

Click here for  M34-2H datasheet (gif)






 Batteries not included
