SENSORS ,   MODULES,   DTMF,
TELEPHONE,  REMOTE CONTROL  ICs



RF  Receiver  Modules
(all modules assembled & tested)

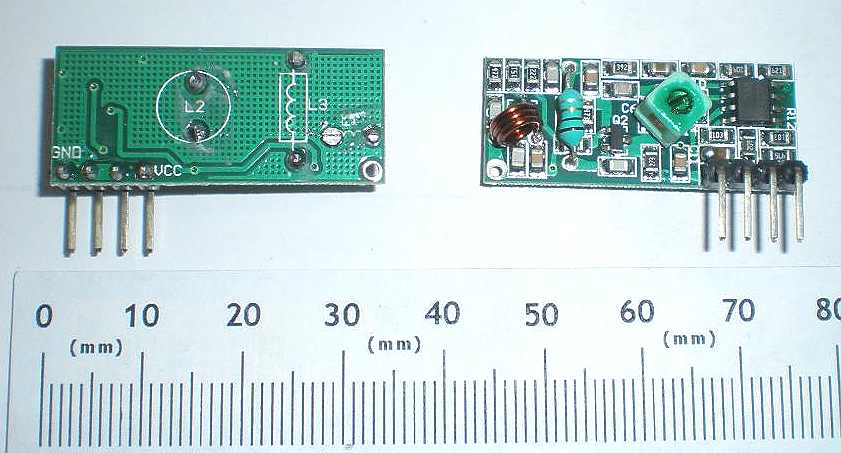

Basic Receiver Modules

RX208-315
(315 MHz)
RM 6.00 / pc

RX208-433
(433 MHz)

RM 6.00 / pc

Super regenerative receiver
See Datasheet (pdf) for details

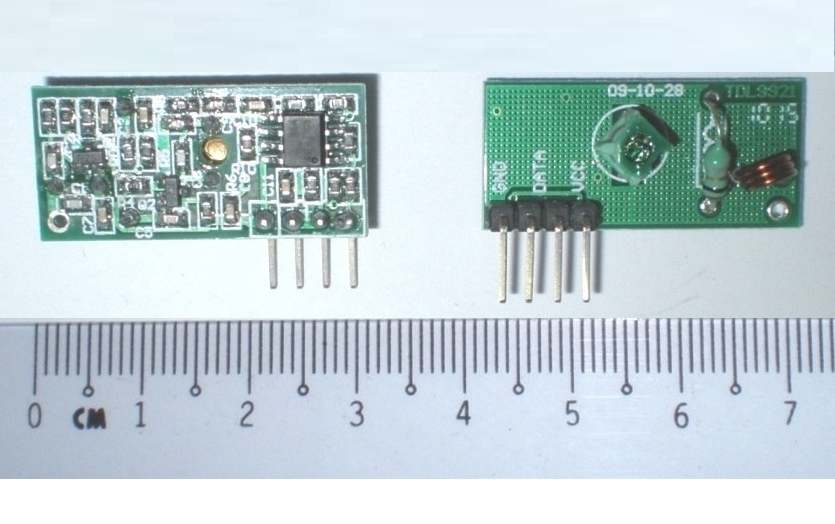

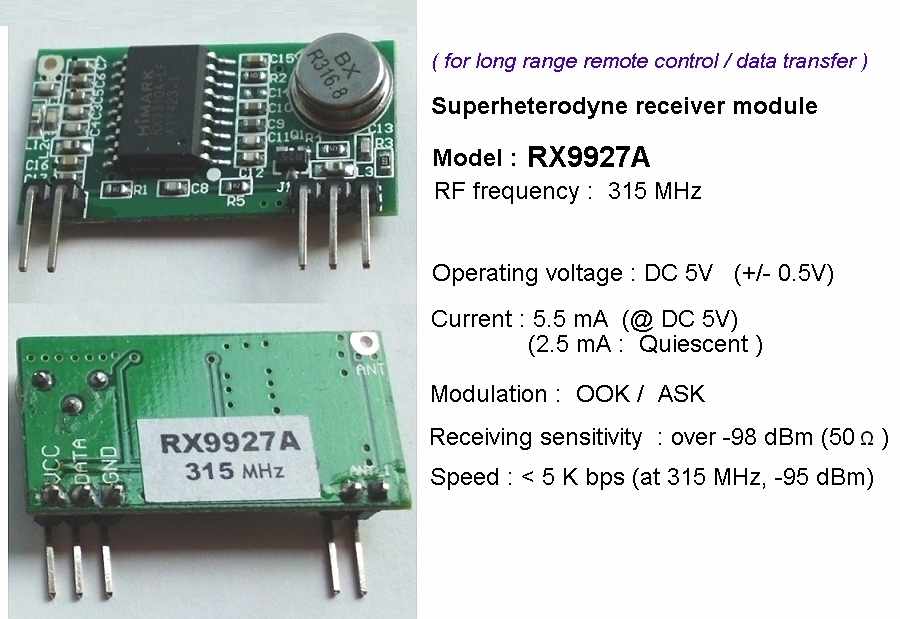

RX9927A-315
(315 MHz)

Super heterodyne receiver
RM
11.00
/ pc

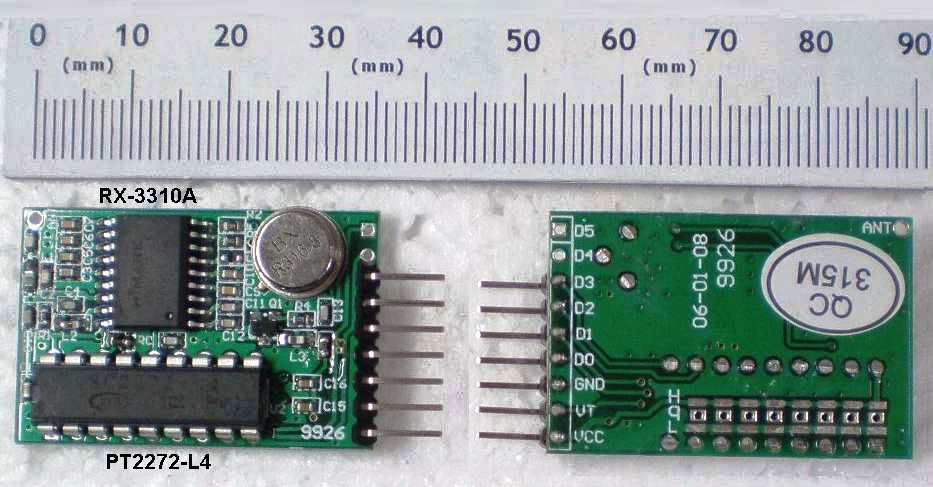

RX9926-315
(315 MHz)

Super heterodyne receiver
with decoder IC
Datasheet (pdf)
RM 17.50 / pc

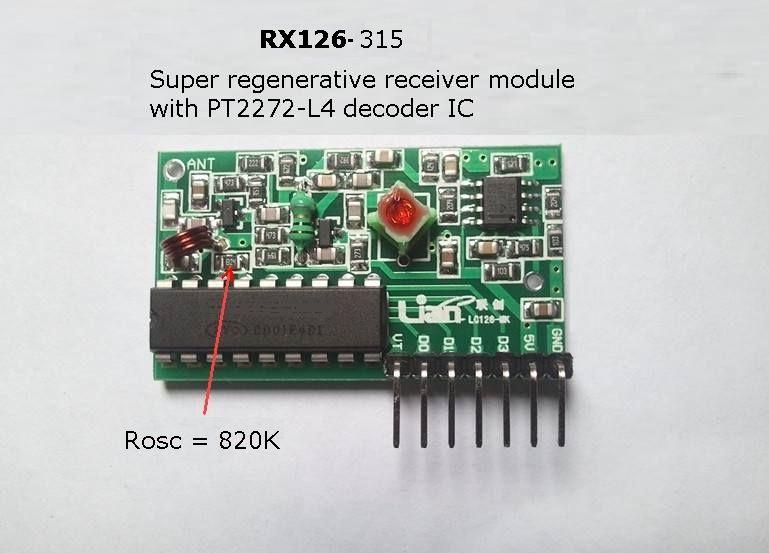

Low Cost Receiver Module
with decoder IC

RX126-315
(315 MHz)

Super regenerative receiver with decoder IC

RM 9.00 / pc

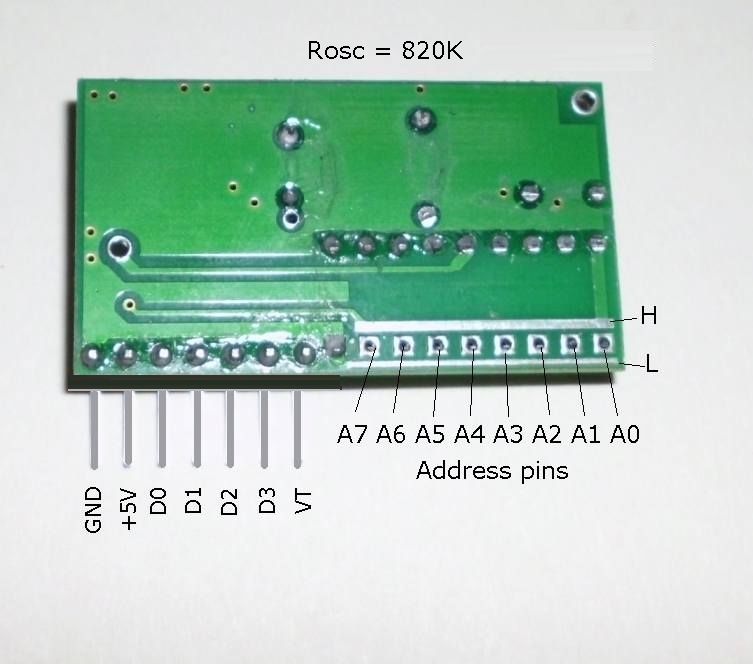

Pinout





RF  Transmitters & Modules

Basic Transmitter Modules
(
SAW resonator stabilized)

TX9906A-315
(315 MHz)
RM 6.00 / pc
TX9906A-433
(433 MHz)

RM 6.00 / pc

See datasheet (pdf) for details
Application example (pdf)

Basic Transmitter Modules
(
SAW resonator stabilized)

TX1000A-315
(315 MHz)
RM 6.00 / pc
TX1000A-433
(433 MHz)

RM 6.00 / pc

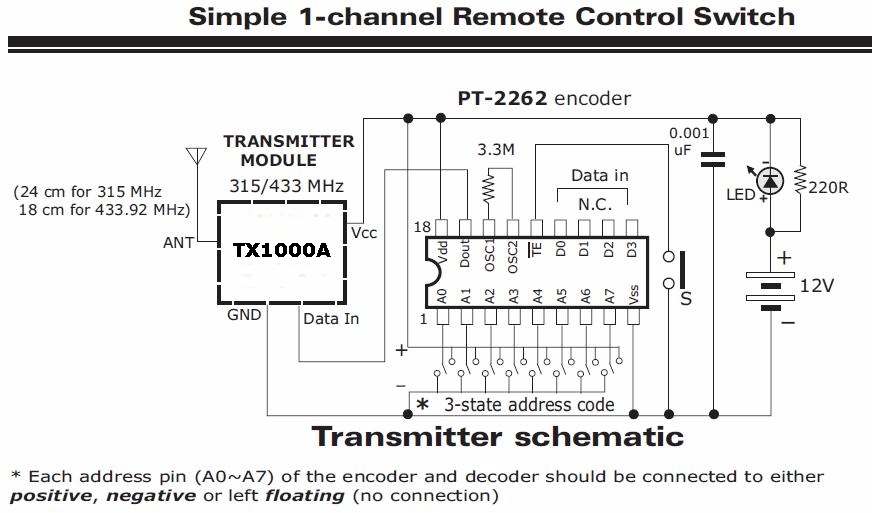

 Application example (jpg)

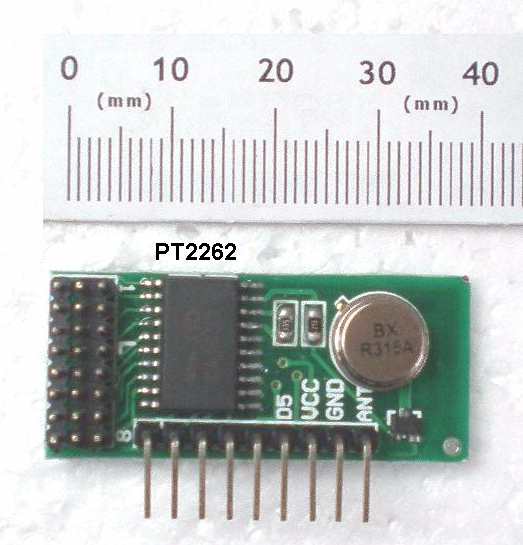

TX9902B-315
(315 MHz)

Transmitter module with encoder  PT2262
Datasheet (pdf)

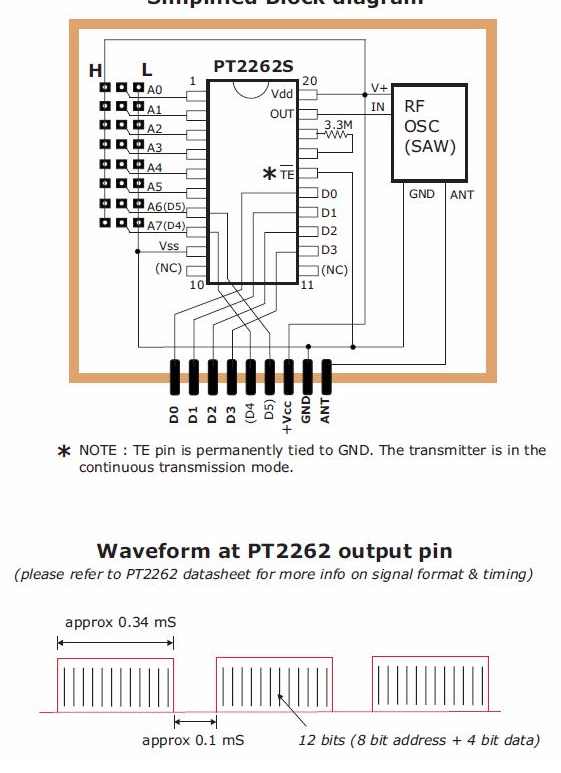

Block diagram

RM 13.50 / pc

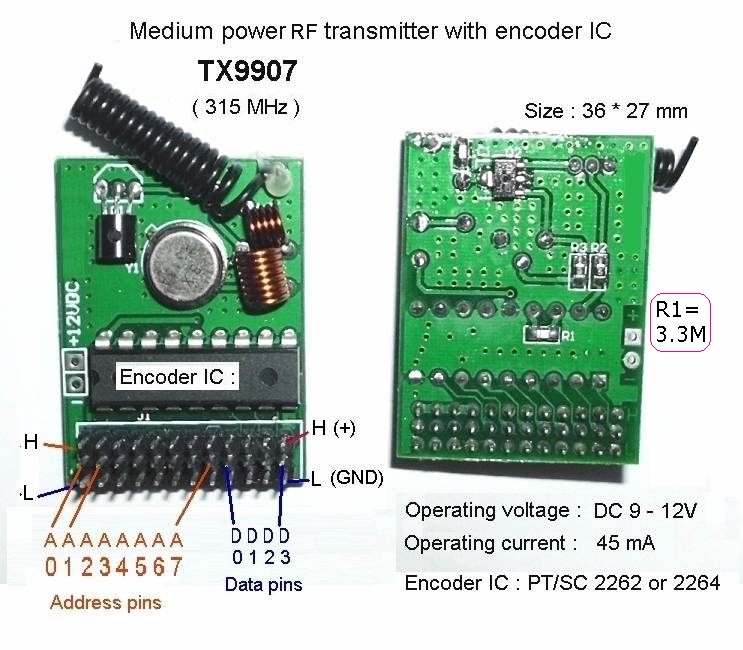

  TX9907-315
(315 MHz)

Medium Power Transmitter module  with PT2262 encoder

RM 13.00 / pc

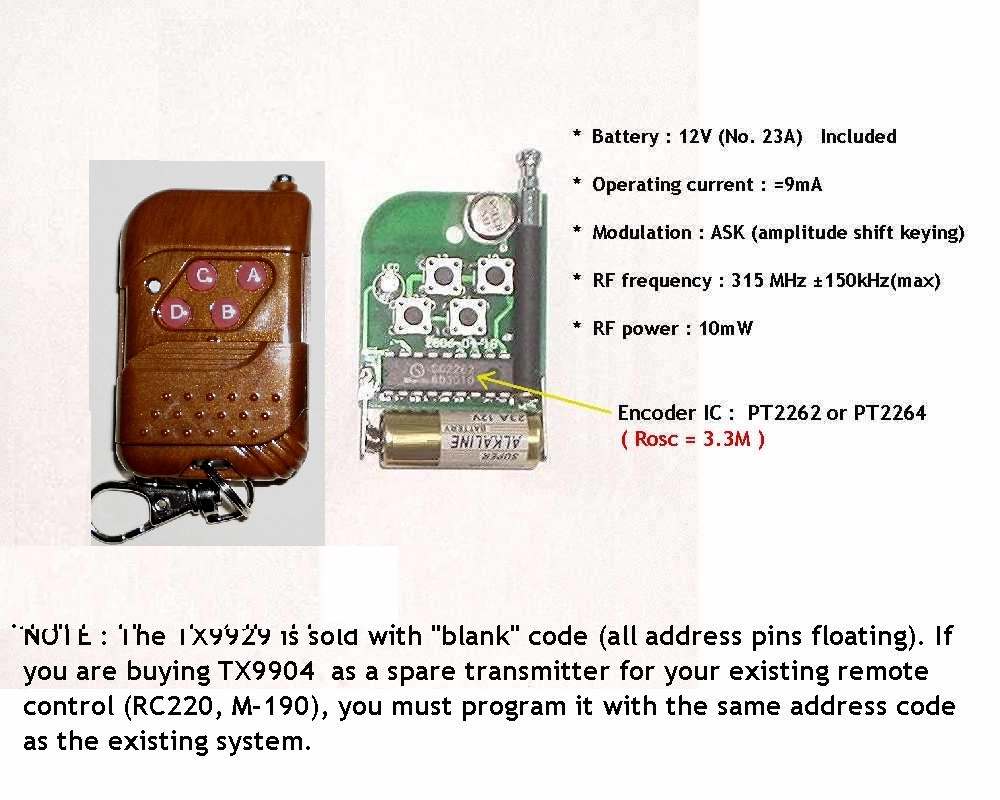

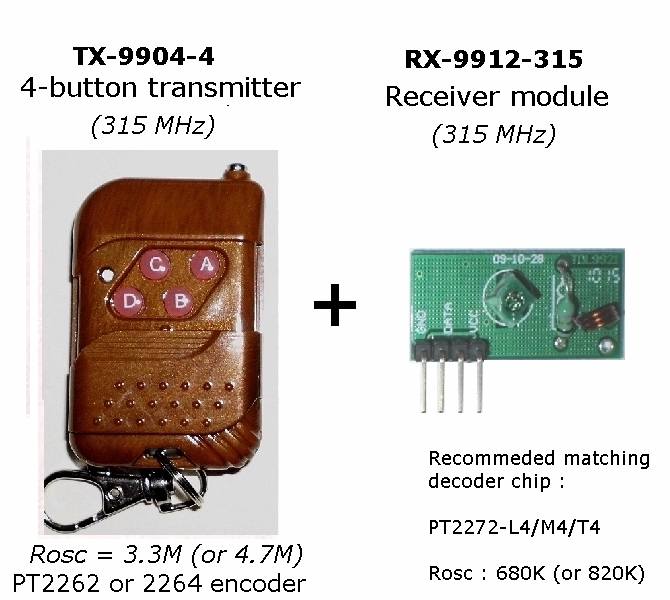

UHF,  4-button transmitter


Ref
No.
TX-9904-4

RM 19.00 / set

12V (No. 23A) battery included
Color :
Wood

SAW resonator stabilized, 315 MHz, Rosc=3.3M
Application :   General purpose transmitter for remote control of home appliances,  auto gate & wireless alarm systems

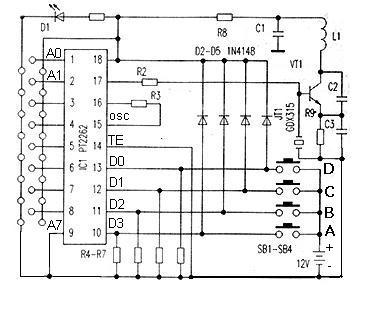

* Transmitter simplified schematic

Dimensions &
programming instruction

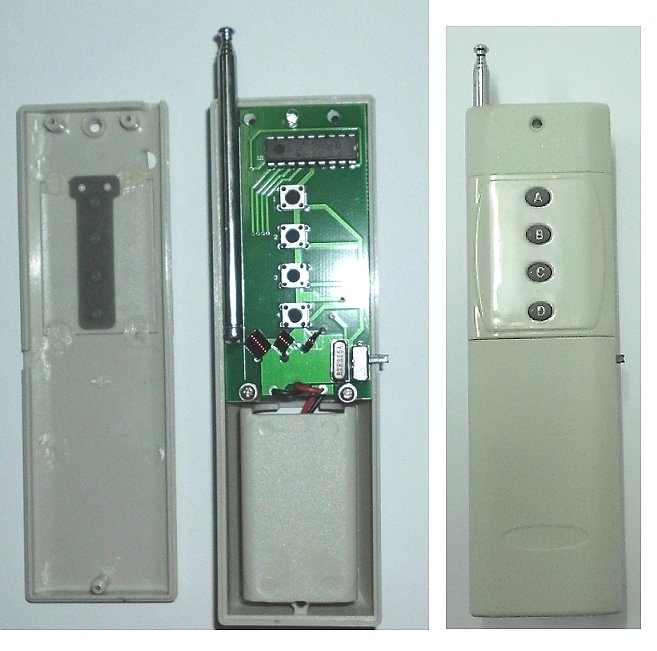

  4-button Long range RF transmitter
(315 MHz)

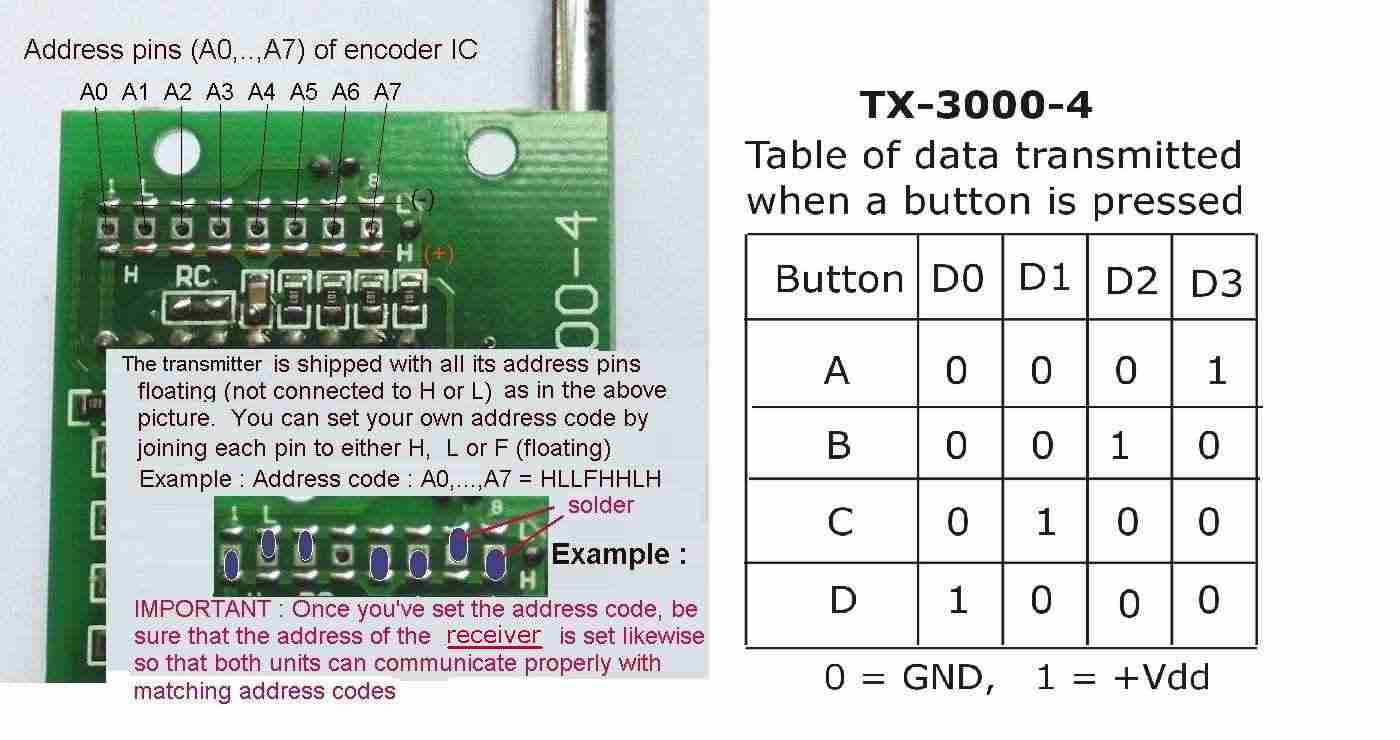

Address setting
Ref. No.:  TX-3000-4        RM 32.00 / set
9V battery included

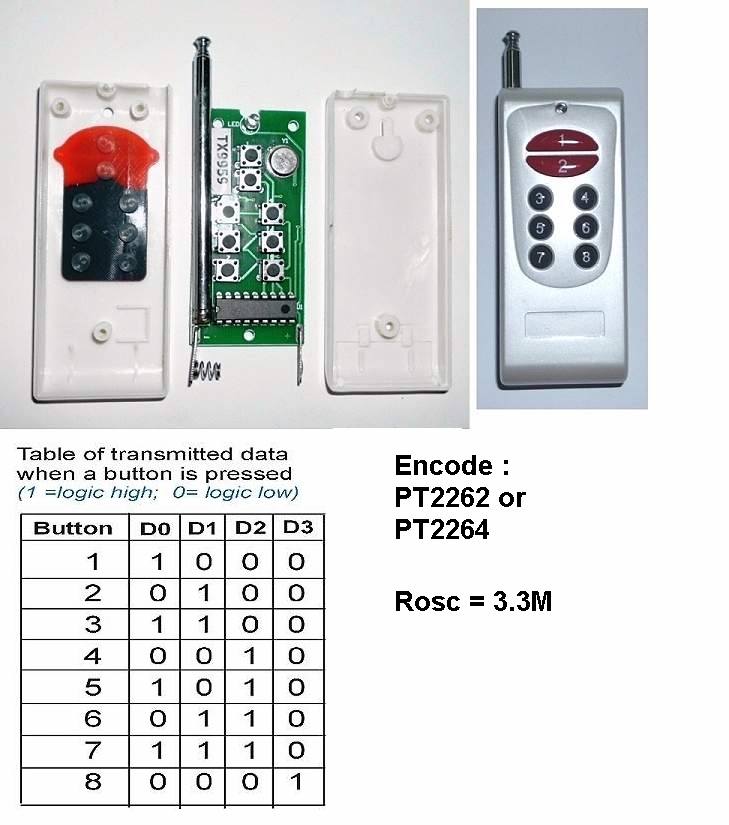

 8-button RF transmitter

(315 MHz)


Ref No.:  TX-9959        RM 21.00 / set
12V GP-23A Battery included



 Recommended Transmitter / Receiver Module  pairs

Low cost, general purpose  transmitter/receiver modules pair


+

Recommended Encoder & Decoder ICs :  PT2262 ,     PT2272-L4, M4 or T4

Ref No. Frequency Price/pair
1-208-315 315 MHz

RM 11.00 / pair

1-208-433 433 MHz

RM 11.00 / pair

For medium range transmitter/receiver module pair

Ref No. : 9904-208     315 MHz

RM
22.50
/ pair

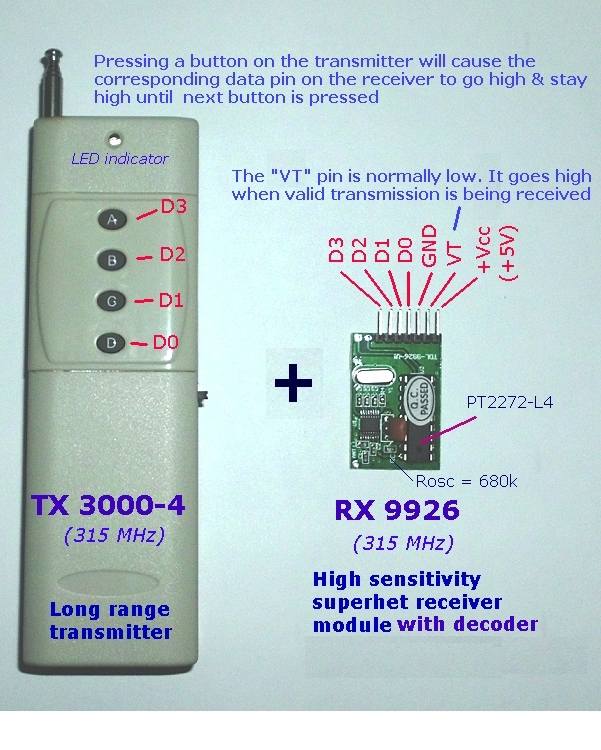

For long range control

9V battery included

Ref No. : 3-9926    315 MHz

RM
48.00
/ pair

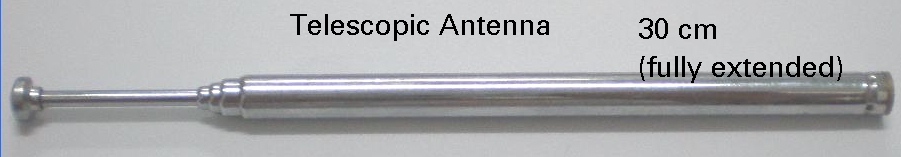

   Telescopic Antenna  ( 30 cm when fully extended)        RM 2.00 / pc.




Audio Power Amp. modules

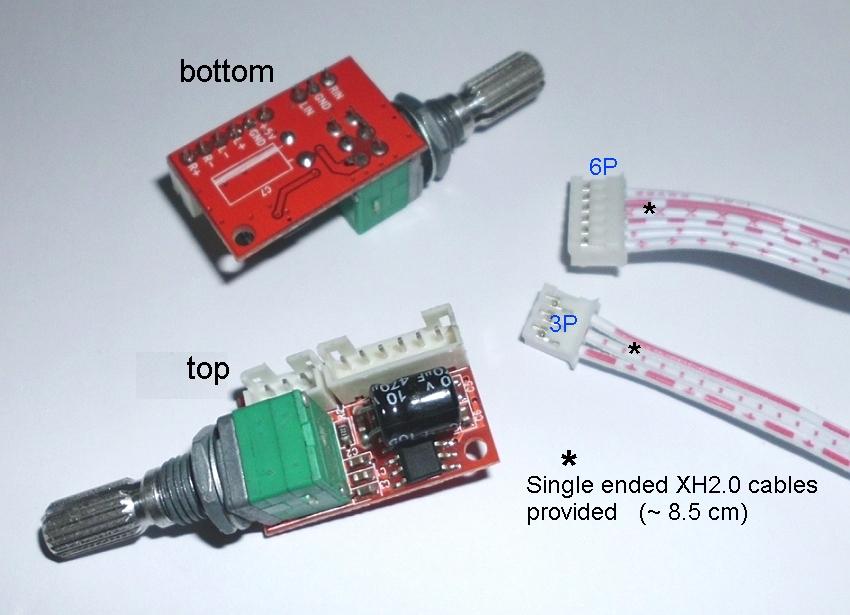

PAM8403  3W+3W Audio amp module
with volume control.
  (
DC 5V)
(assembled & tested)

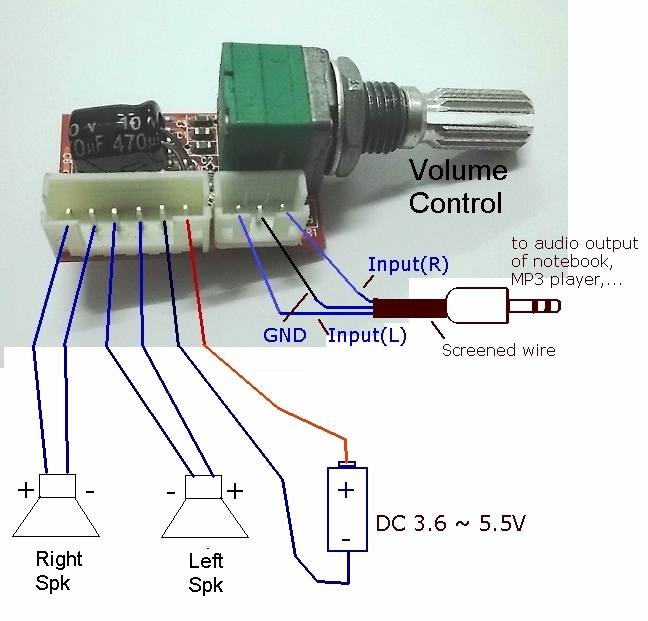

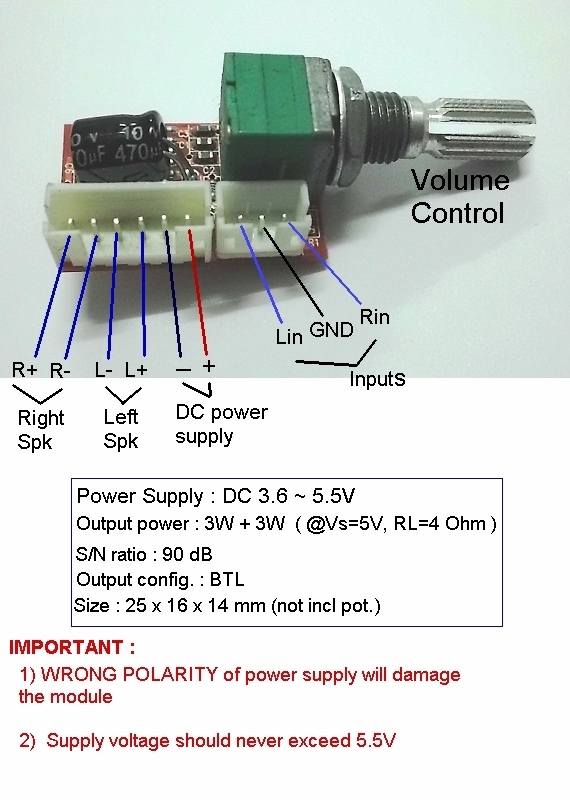

Pin-out & specs  /  Wiring diagram
* RM
7.00 / pc
(* price includes 3P & 6P cables & connectors)

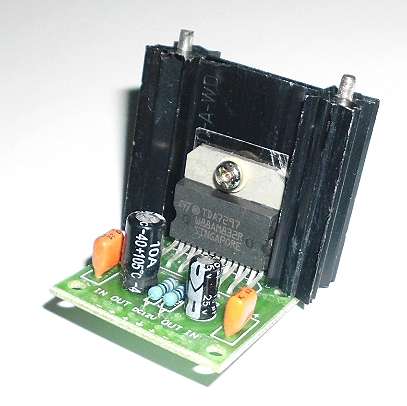

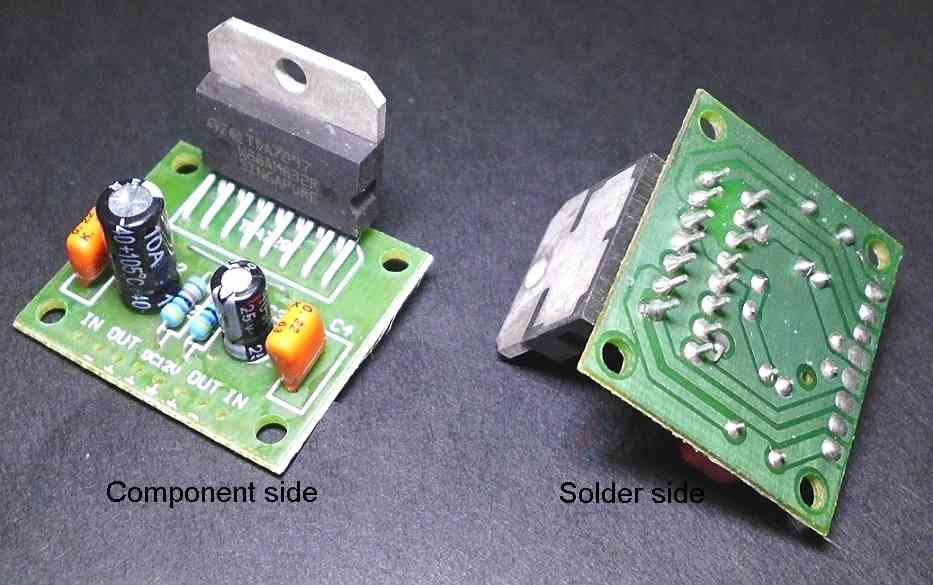

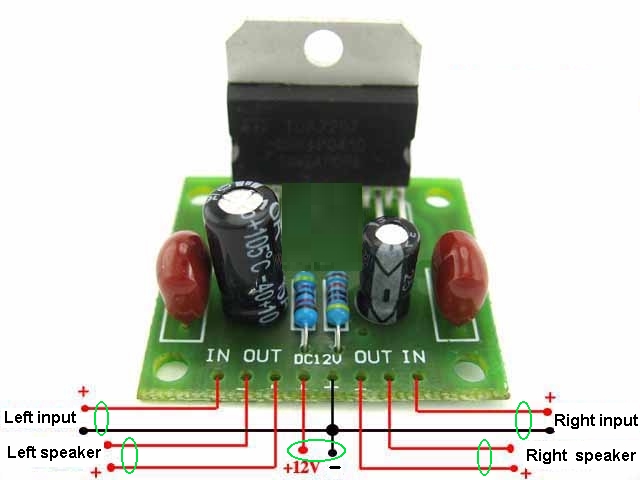

TDA7297 15W+15W Power Amp Module   (DC 12V)
(assembled & tested)
Free heat sink (actual H/S supplied may be in different shape & size.  Lmited time offer)..      Wiring diagram
RM 7.00 / set




Voltage Converter Modules

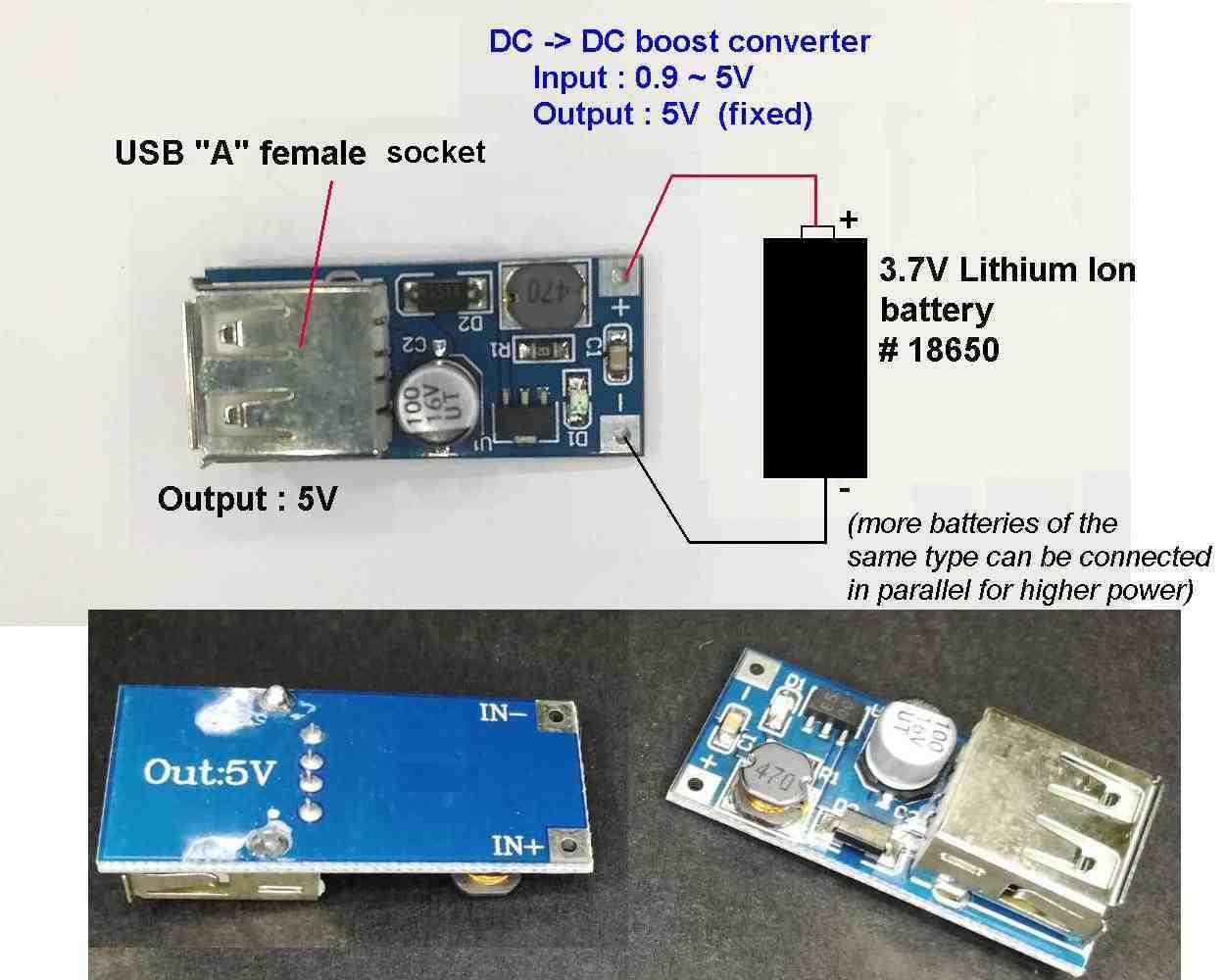

DC -DC Converter with USB socket
No.  XD-02

RM 2.50 / pc     DC 0.9~5V =>> 5V





 Digital Volt /Amp meters / Li Ion batt. charger

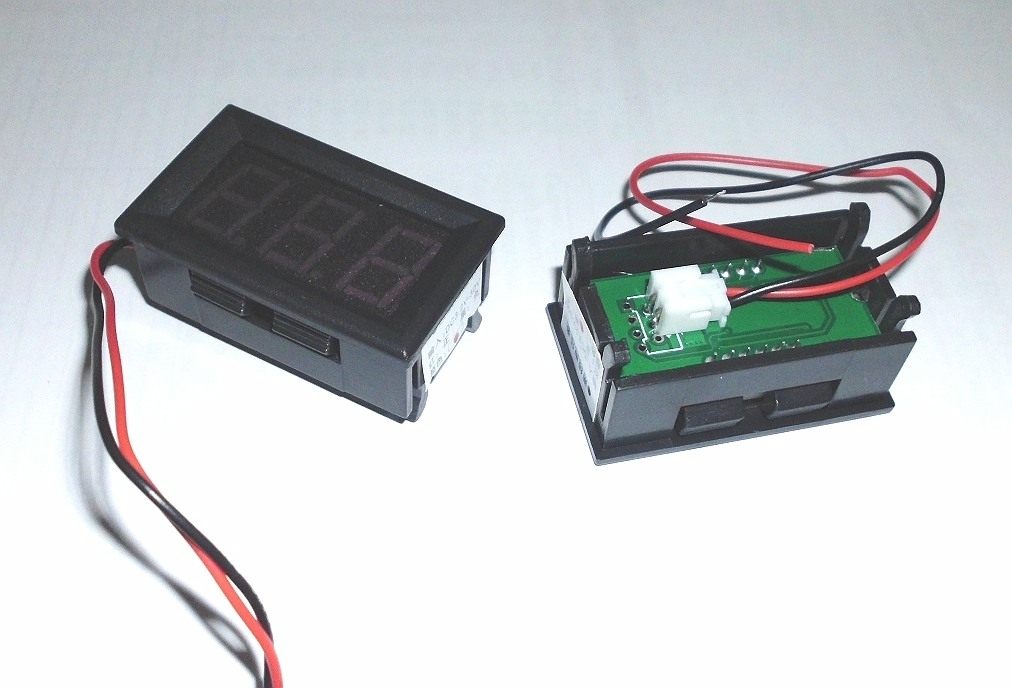

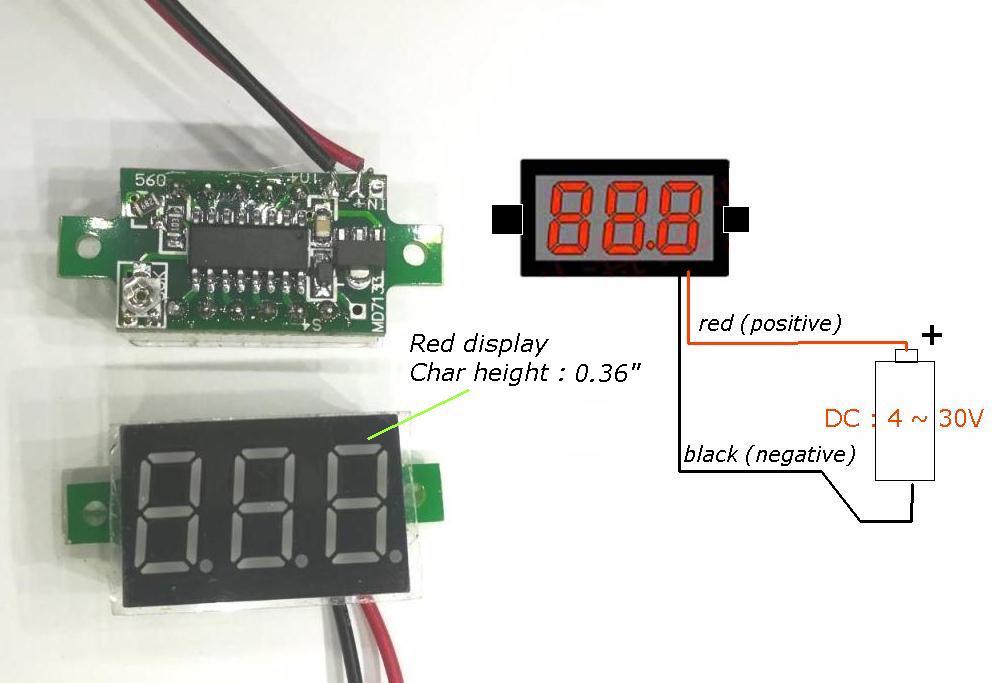

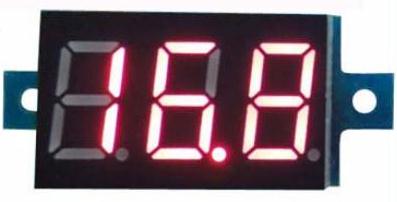

2-wire Digital Volt Meter

No.  DVM-4030-2S
 *

PECIFICATIONS :
Voltage measurement range  :
DC  4.0V ~ 30V

Display : 3-digit, RED
Character height : 0.36"

Dimensions : 23x15x10 mm
RM 7.00

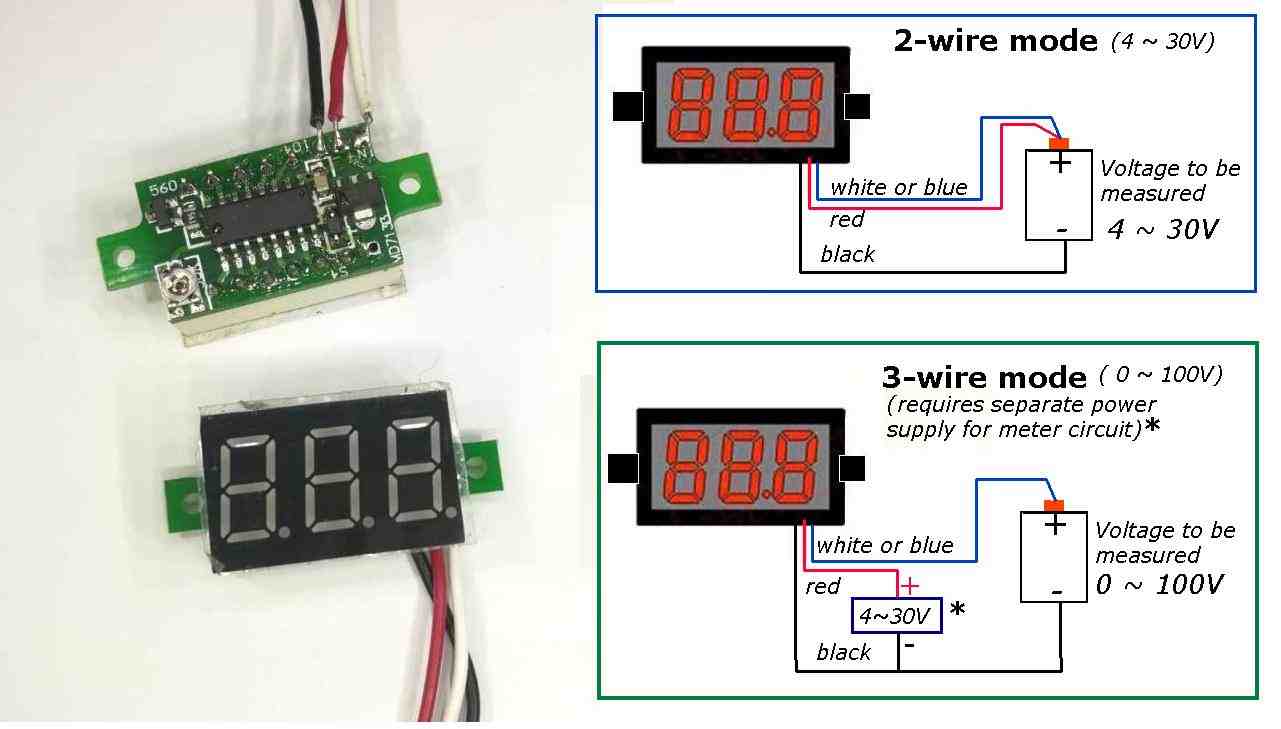

3-wire Digital Volt Meter

No.  DVM-4030-3S
 *

PECIFICATIONS :
Voltage measurement range  :
DC  4.0V ~ 30V (2-wire mode)
DC  0V ~ 100V  (3-wire mode)

Display : 3-digit, RED
Character height : 0.36"

Dimensions : 23x15x10 mm
RM 8.30

2-wire Digital Volt Meter



No.
 DVM-4030

*

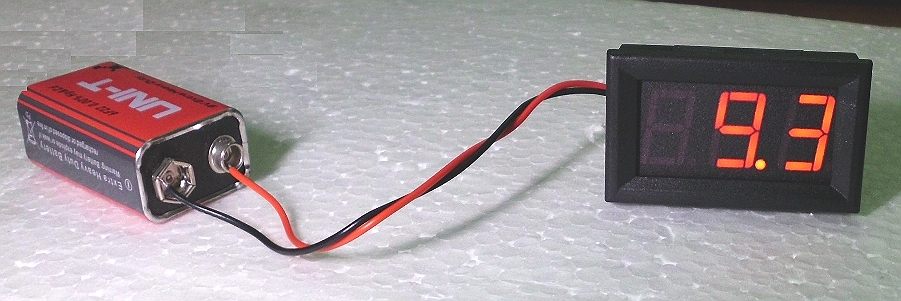

DVM in operation
PECIFICATIONS :

Voltage measurement range :
DC  4.0V ~ 30V

Display : 3-digit, RED
Character height : 0.56" ( = 14 mm)
Dimensions :
48x29x21 mm
RM
12.00

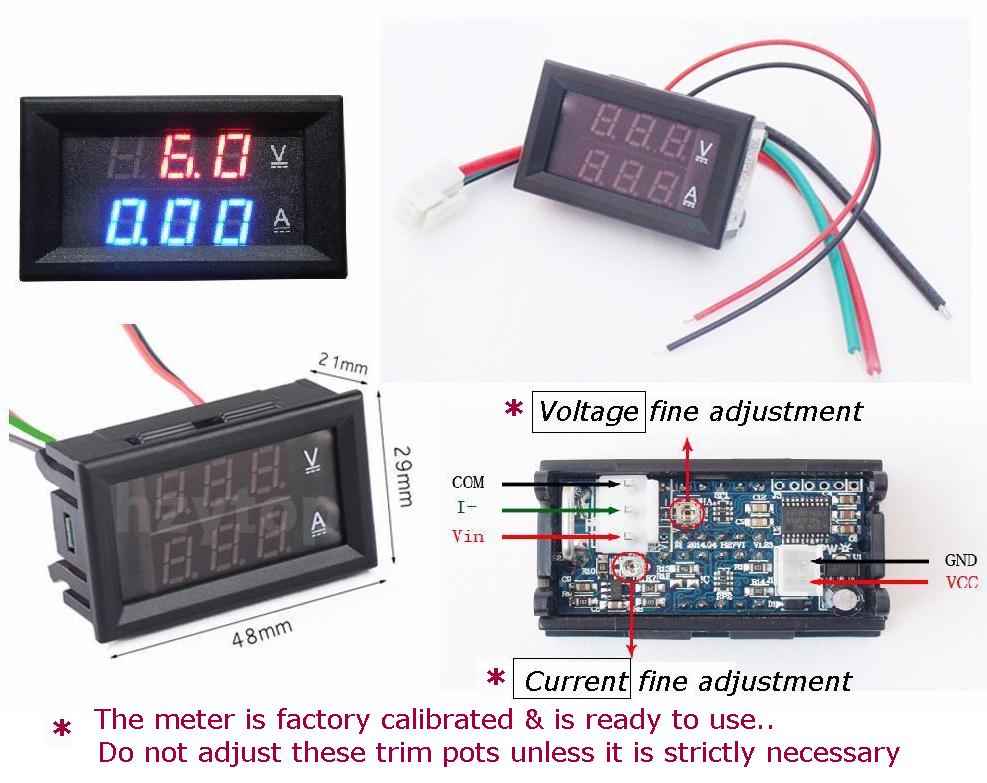

2-in-1 Digital Volt / Amp Meter


No.  WR-005
SPECIFICATIONS :
(Meter circuit power supply :
 DC  4.5V ~ 30V  (wrong pol. protected))


Displays : 3-digit,
Red  (DC 0 ~100V)
Blue (DC 0 ~10A)

Character height : 0.28" ( = 7 mm)

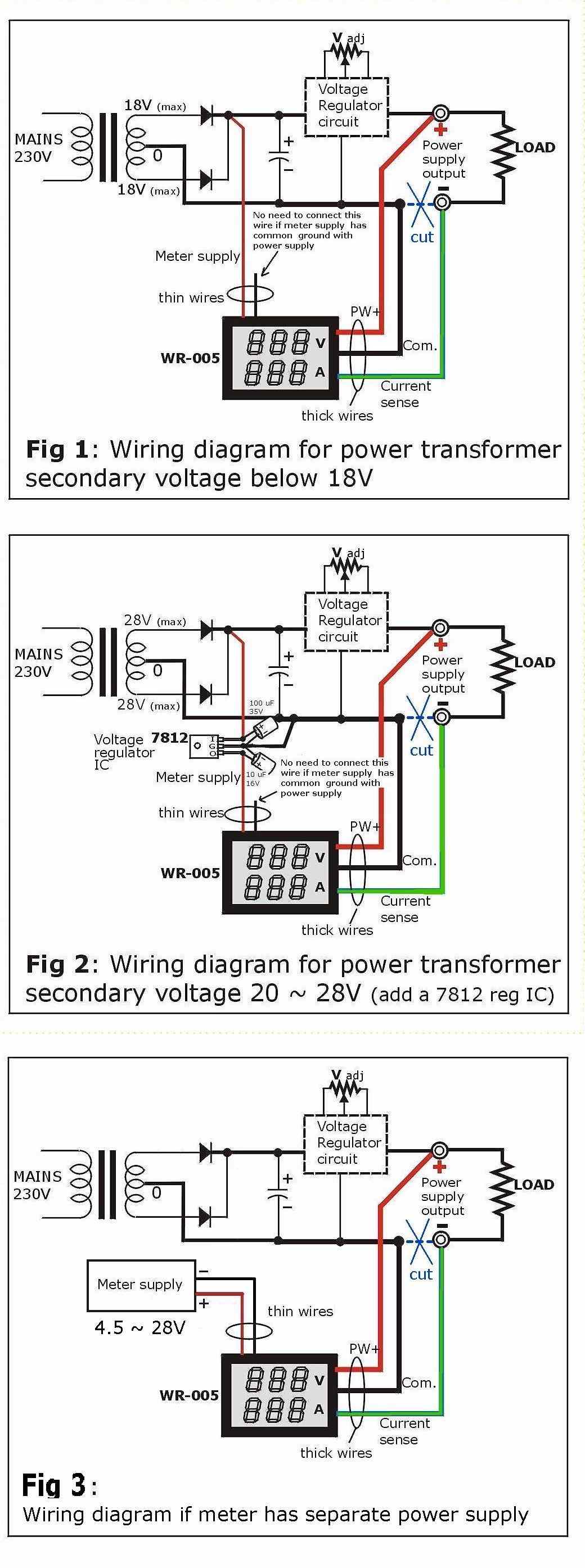

* Hook-up diagram  (an example)

Dimensions (ext.) : 482921 mm

RM
23.60

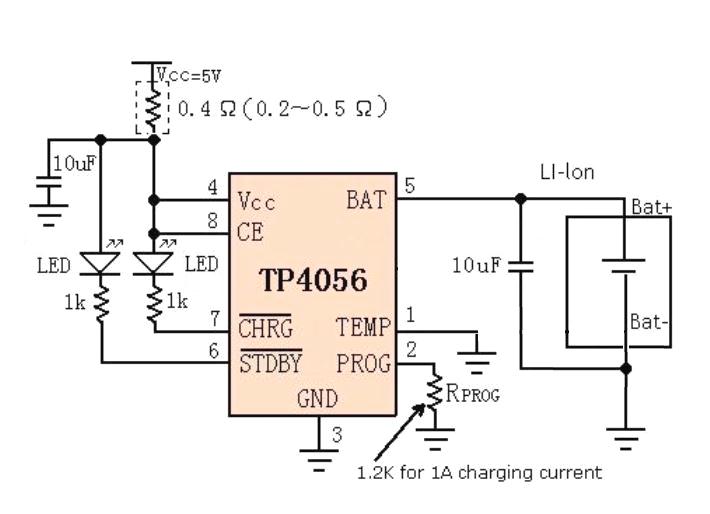

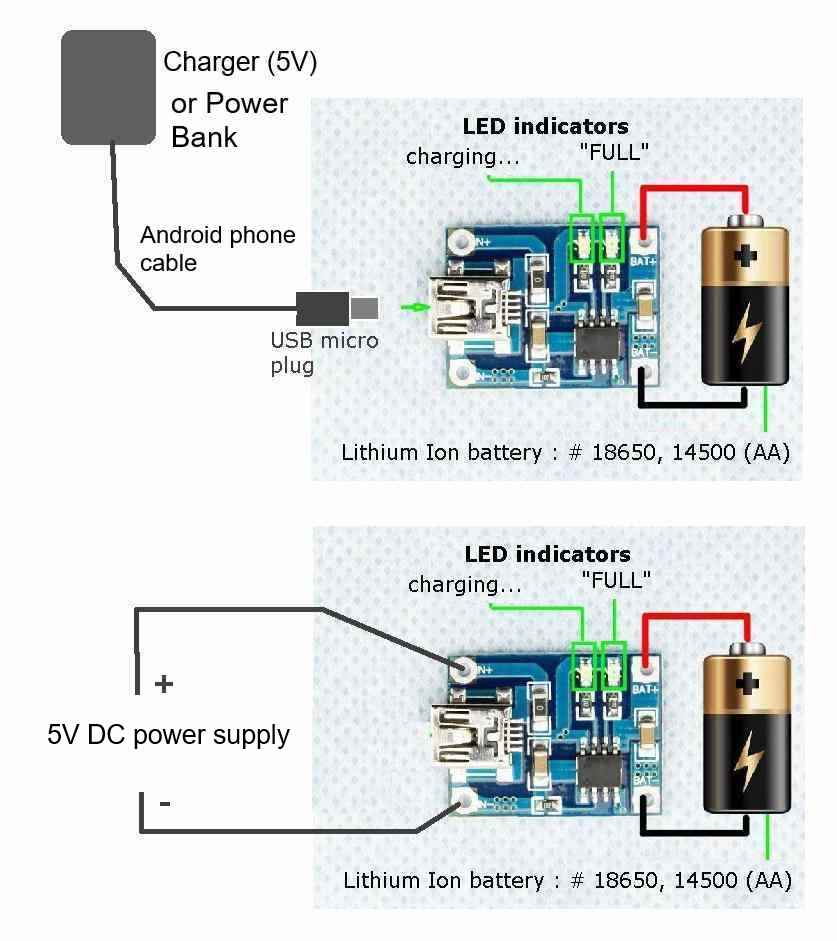

Li Ion battery charger board



Digital Thermometer

Automatic Lithium ion battery charger board

* LED  changing / fully charged  indicators
* USB micro socket

*  1A charging current
*  Charges Li Ion batteries of any size       [ Schematic ]
RM 2.00
-----------------------------------------------------------------------------

Battery holders sold separately



Temp. measurement range : -50 ~70oC
Sensor type : NTC (10K/3435)
Battery: 2 x AG13 button cells (included)
Probe wire : ~ 1 m

Ref No. T-110

RM 9.50



Motors,  wheels,  ...

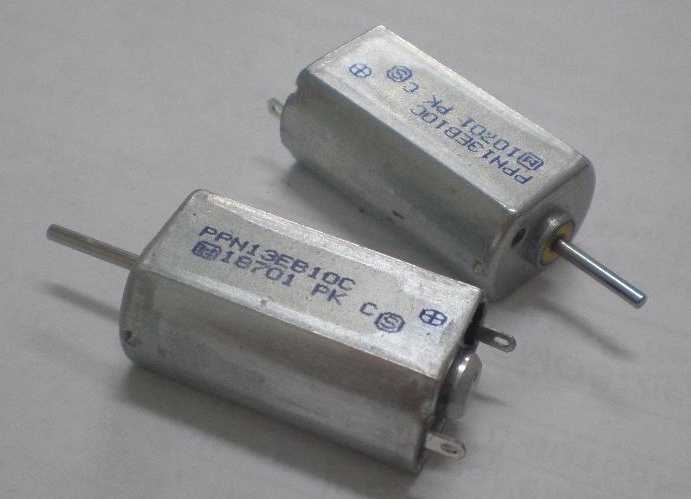

Miniature DC Motor

No. PPN13
RM 4.00
(Oper. voltage :3.5~7.5V)

Made by PANASONIC
Datasheet(pdf)

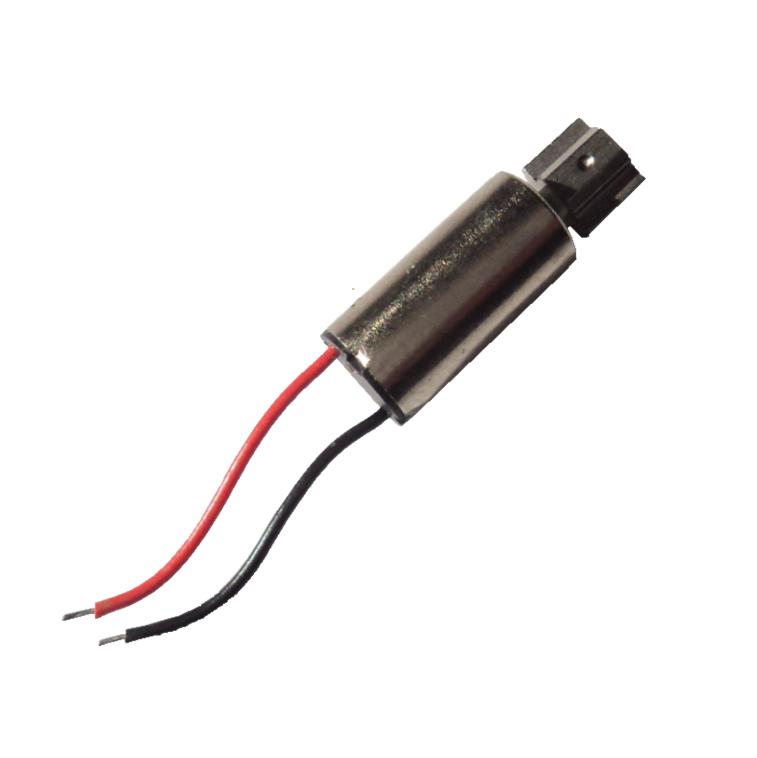

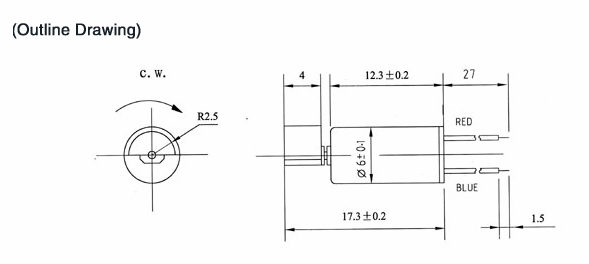

Miniature DC
Vibration   Motor
(DC : 1.5~ 3V)
Application : Vibration alert


Dimensions
No. VM6-12
RM
3.70

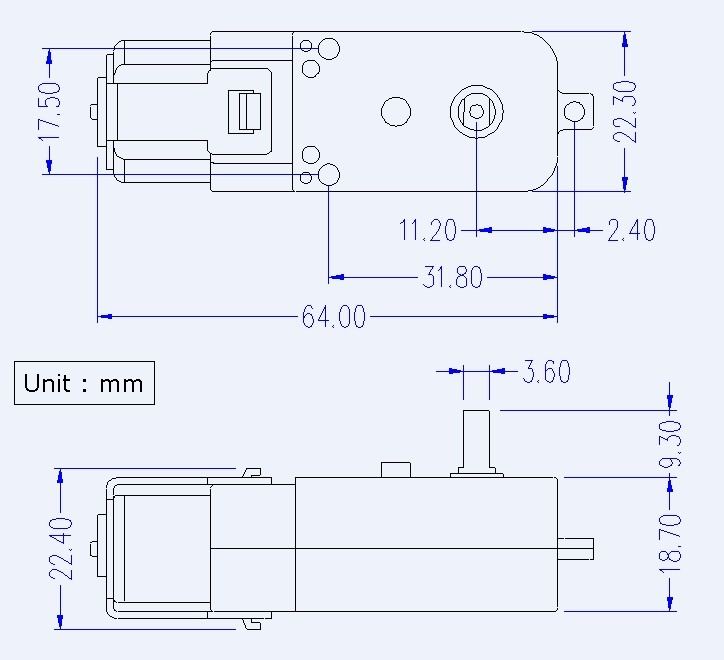

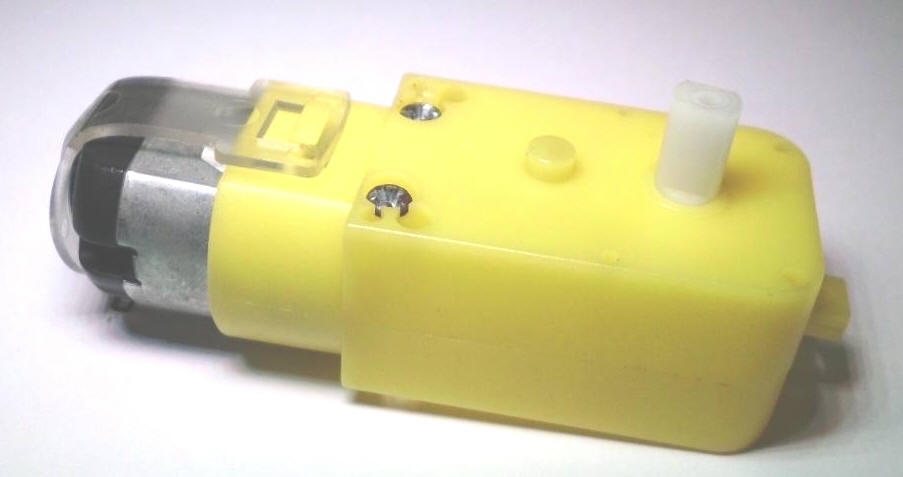

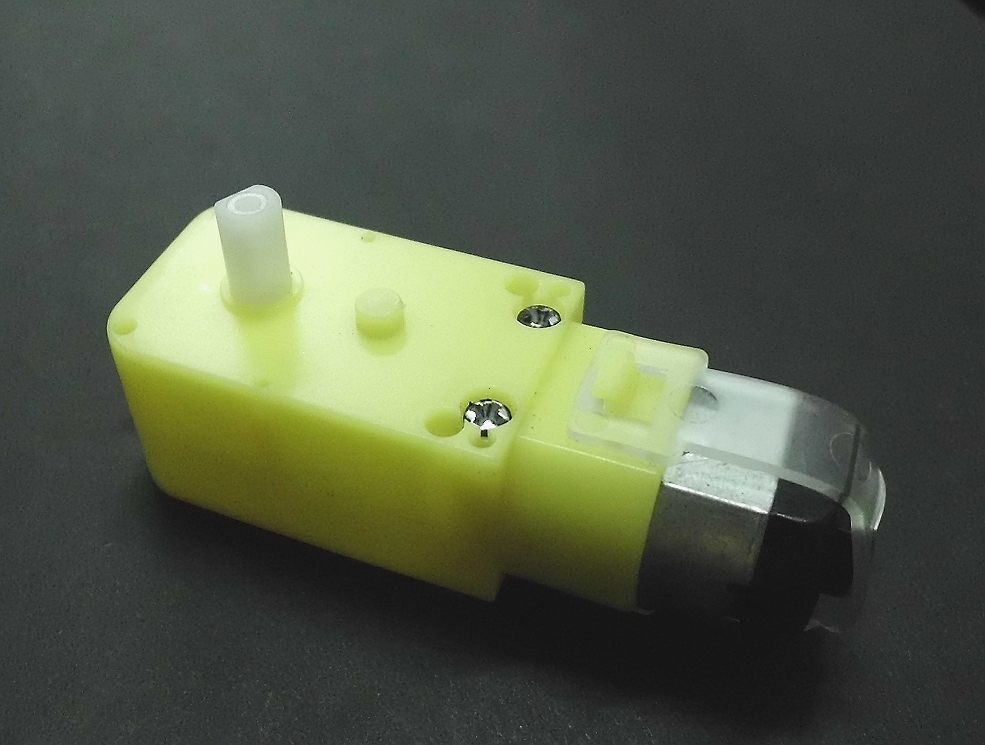

Geared DC Motor
(Oper. voltage :3~6V)

Great for robots & line follower

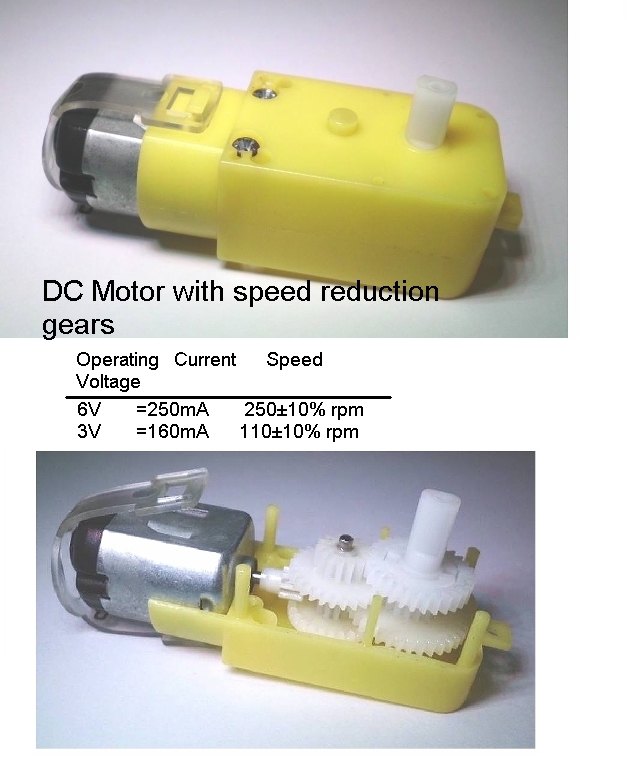

Internal view & specs
RM 8.50  / pc.
Dimensions

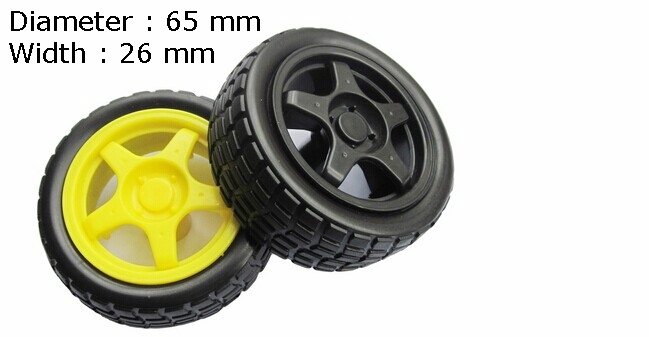

Rubber wheel
(for robot / line follower)


picture 1
RM 3.20  / pc.
(rim color : black, orange or yellow ship randomly)




Ultrasonic,  Infrared  Sensors & parts

Ultrasonic Ceramic Transducers
(40 KHz)

 No. TCT40-16T/R2

RM
12.50 / pair

Open type. Indoor use only
Separate sensors for transmit & receive Dim : 16 mm DIA.  Terminal pitch : 10.16 mm (0.4")
Application :
motion detector,  range finder, remote control, proximity switch , robotics. .
Datasheet (pdf)

Ultrasonic driver transformer  (40 KHz)

No. UT-40K


RM 1.80 / pc.

Designed for driving  pulse mode transducers
Primary : (DC12V). Secondary (~70Volts pp) connects to transducer for producing short burst of ultrasonic wave
Application :
car backup sensor, proximity switch, range finder,
Suggested driver circuits

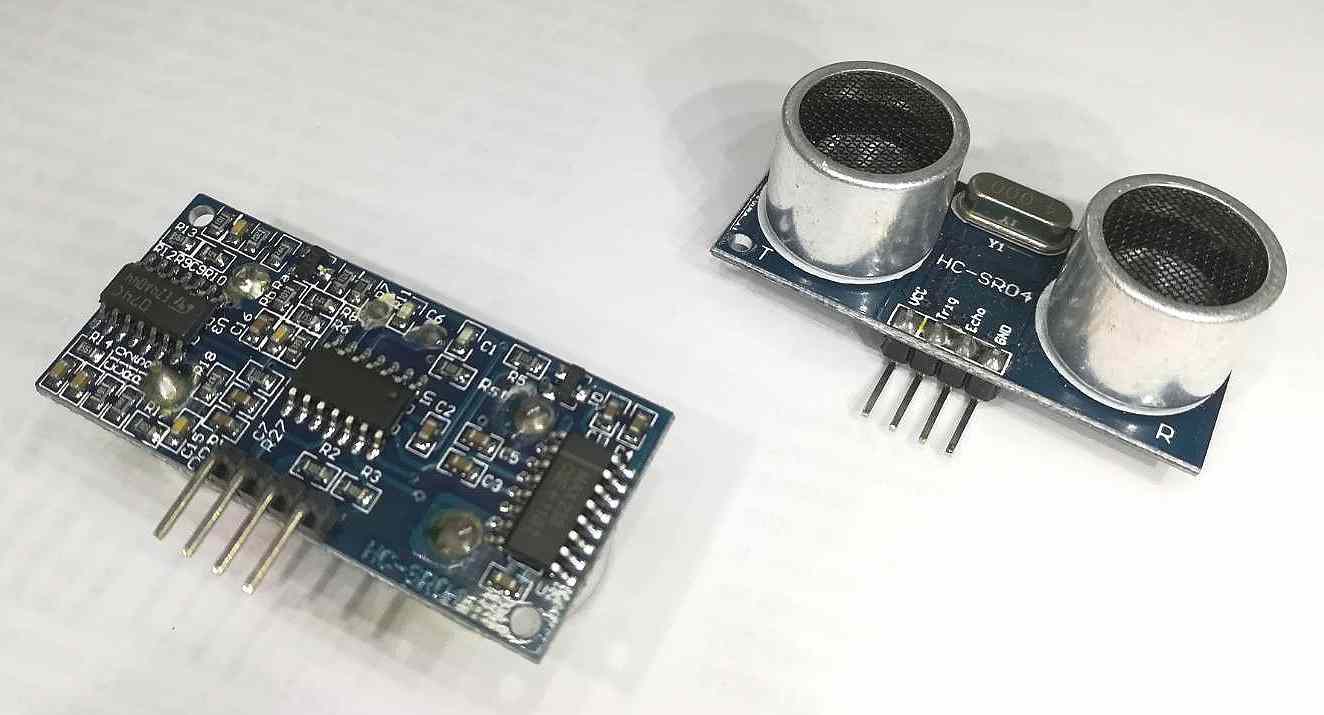

  Ultrasonic ranging module

No. HC-SR-04     ( DC 5V )
Max range : 4 m

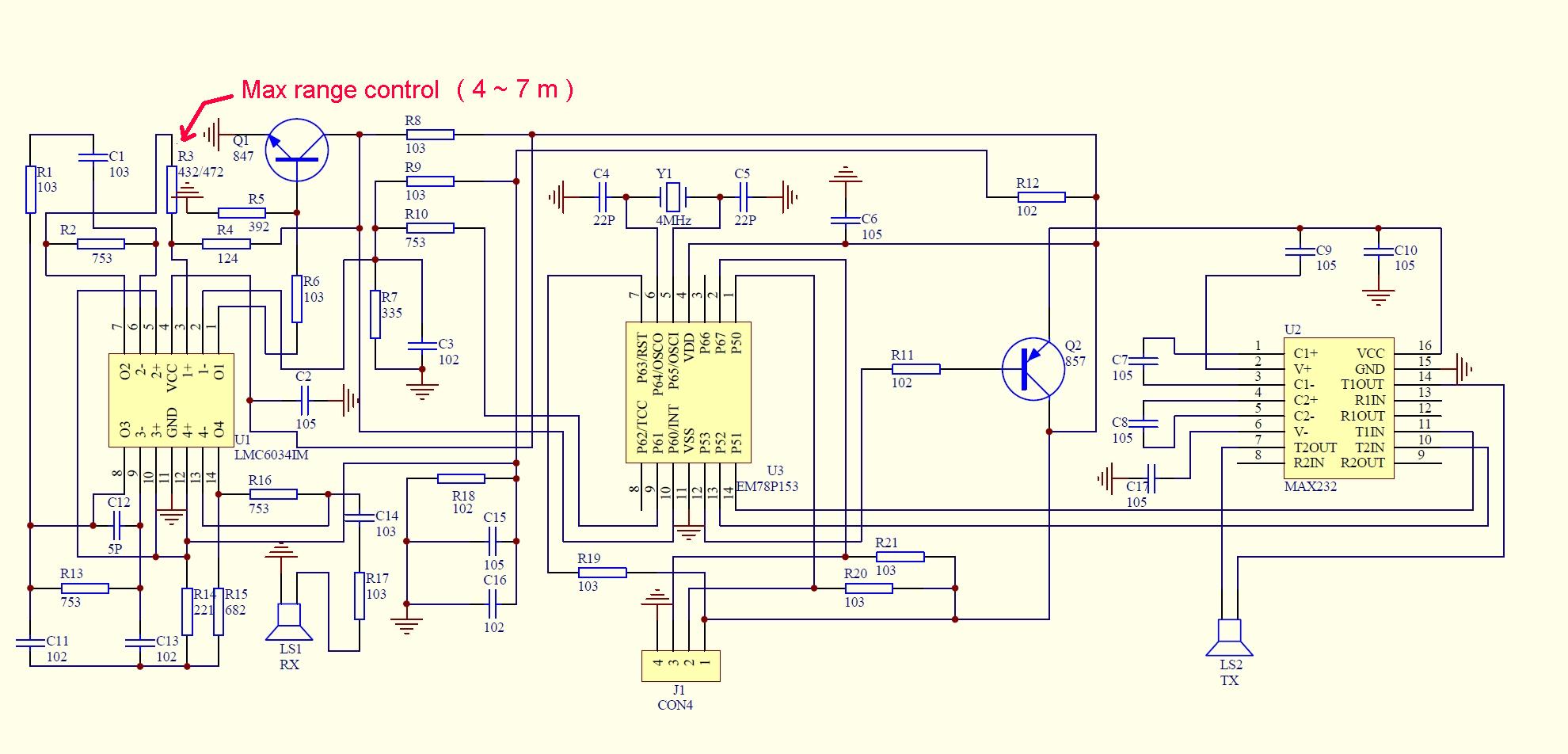

== Schematic ==

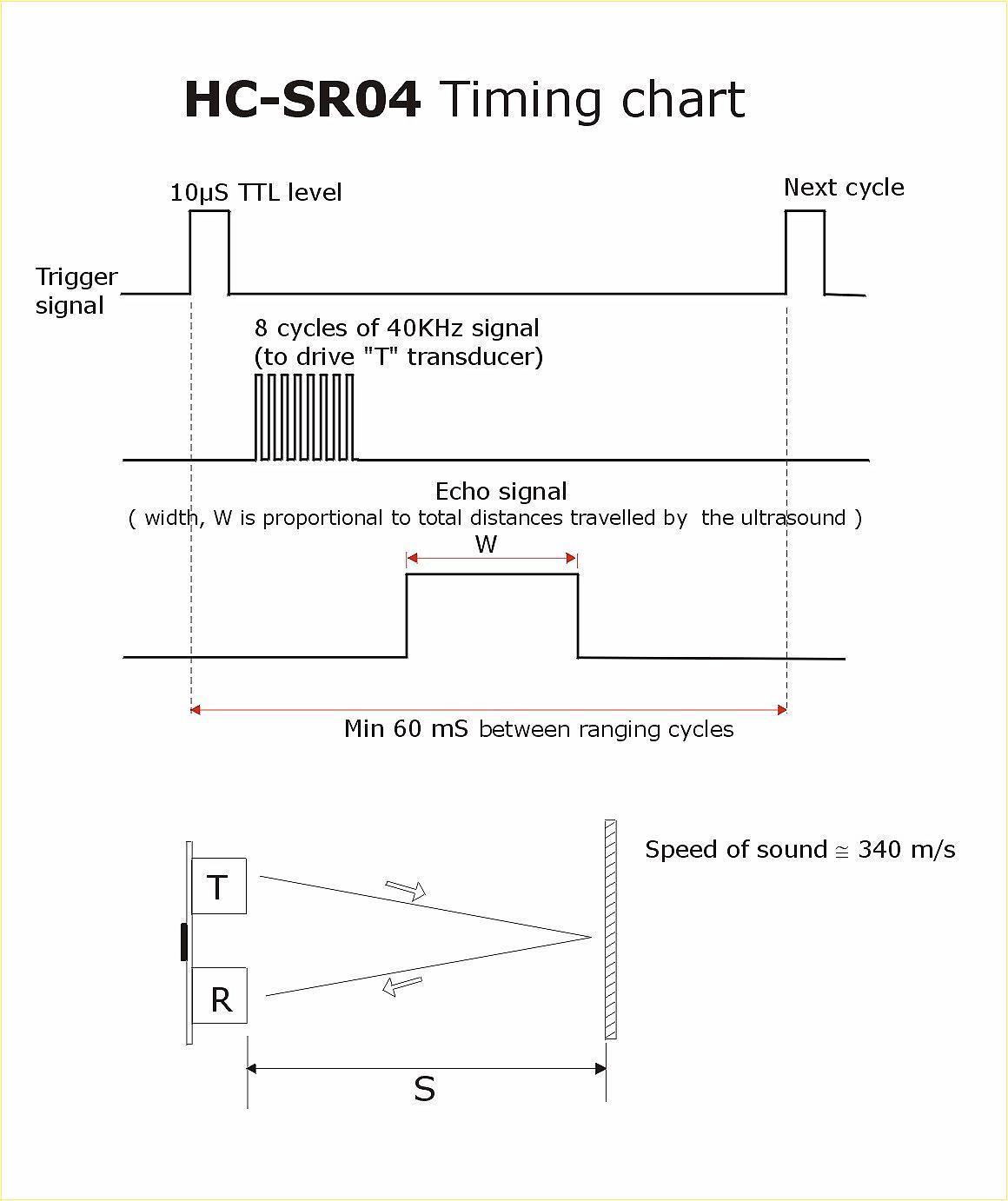

== Timing chart ==

  RM 14.50 / set.

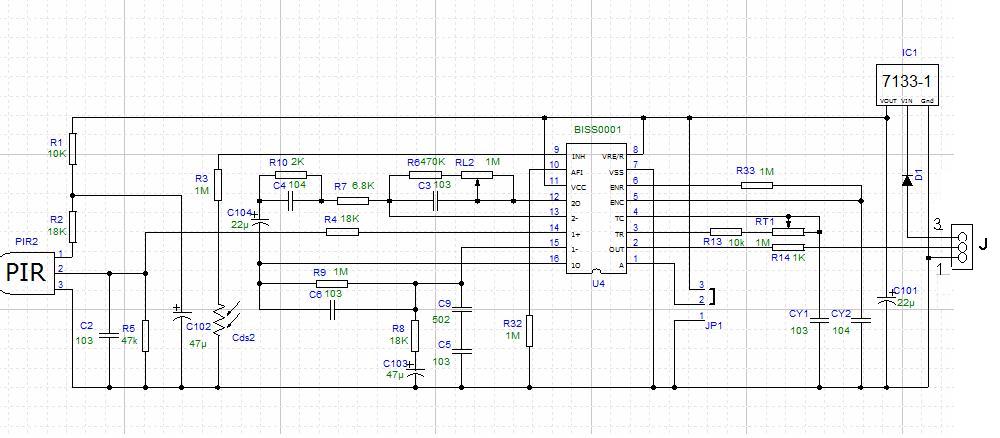

 PIR Motion  detector module
No. HC-SR501

( DC5V to 20V )

      RM 12.00 / set.
Schematic
Specifications


*  Suggested single relay board
 for this detector

* Relay board details & price


Remote Control, Telephone, Infrared, DTMF & Tone Decoder ICs     board

Remote Control

Encoder IC
(8-bit tri-state address,  4-bit binary data)

Datasheet (pdf)
* PT-2262   RM 3.20 / pc.
 Remote Control
 Decoder IC
(8-bit tri-state address,  4-bit binary data

Datasheet (pdf)  (L=latched data)
* PT-2272-L4  RM 3.40 / pc.
(8-bit tri-state address,  4-bit binary data

Datasheet (pdf) (M=Momentary data)
 * PT-2272-M4  RM 3.30 / pc.
(8-bit tri-state address,  6-bit binary data

Datasheet (pdf) (M=Momentary data)
 * PT-2272-M6   RM 3.50 / pc.
(8-bit tri-state address,  4-bit binary data

Datasheet (pdf) (T=Toggle data)
 * PT-2272-T4    RM 4.00 / pc.

* If the  PT-2262 or PT-2272 are not available, we may ship compatible part numbers instead.

Recommended values for oscillator resistors

 Rosc values for
 PT2262
Encoder

Matching Rosc values
for Decoder:
PT2272
- L4 , M4 or M6

1.5M  270K
3.3M  680K
4.7M  820K

Download datasheet here



DTMF  Encoder IC
Datasheet (pdf) for HT9200A/B

 DTMF  Decoder IC


No. MT8870
(or CM8870)

RM 5.00 / pc.

Micro Power Passive InfraRed (PIR) Motion Detector IC


 No. BISS0001

RM 4.50 / pc.

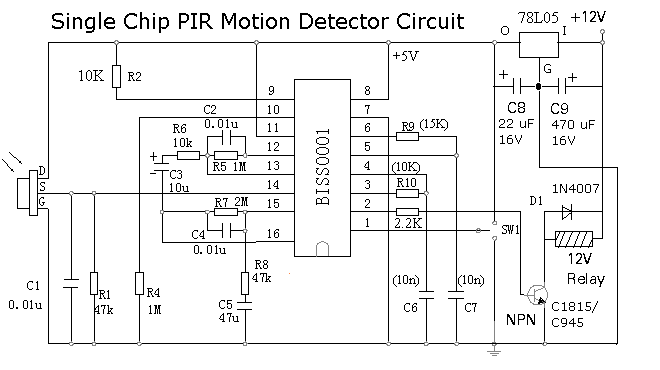

Application example (JPG)

Datasheet (pdf)

 PLL Tone Decoder IC

 No.  NE567

RM 2.00 / pc.

 MCU serial Clock / Calandar

 HT-1380
click here  for price


No. HT9200A
Serial mode


RM 5.00 / pc.


  To be used with micro-controller.




No. HT9200B
Parallel mode

RM
6.00 / pc.


Infrared LED /  Sensors, LDR, Temperature,
Hall Effect,  Vibration, .., other Sensors

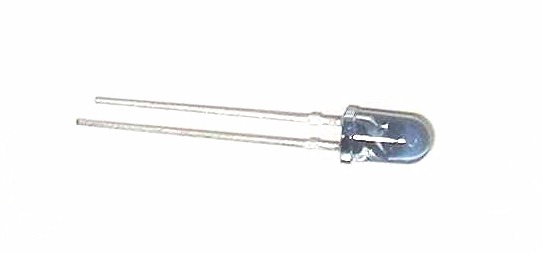

5mm Infrared  LED


Emits invisible infrared beam.
5 mm
. In gray or non-diffused clear case
For infrared projects : remote control, IR data link
RM 0.60 / pc.

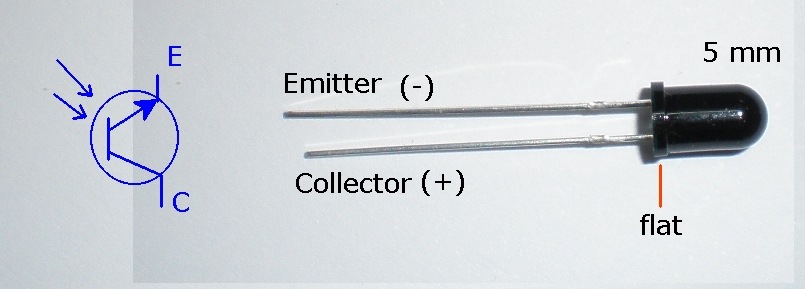

5 mm  Infrared  Phototransistor


In 5 mm black  epoxy case.
λ = 700 ~ 1050 nm

RM 0.65 / pc.

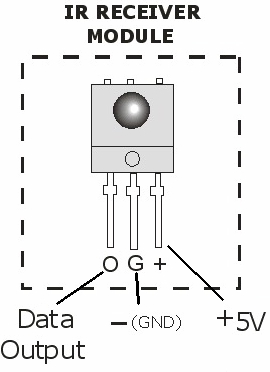

Infrared  Receiver Module


  38 KHz.
 For infrared projects : remote control, IR data link, . . .
 Pin arrangement
(jpg)



RM 2.00 / pc.
( made in Japan )

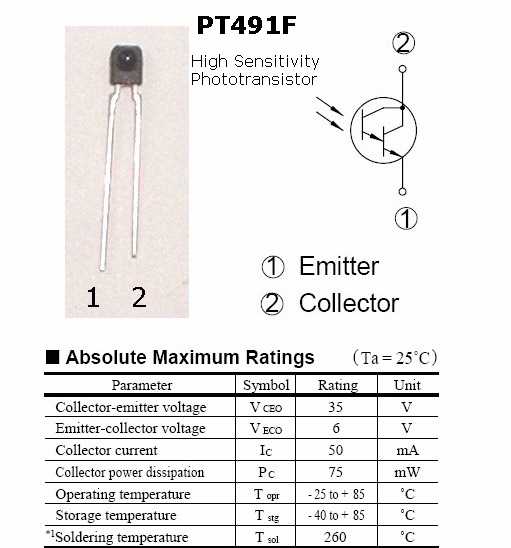

High Sensitivity
Phototransistor  (
SHARP)
PT-491F

RM 1.30 / pc.

In black epoxy case.
For optoelectronic switches.    Datasheet  (pdf)

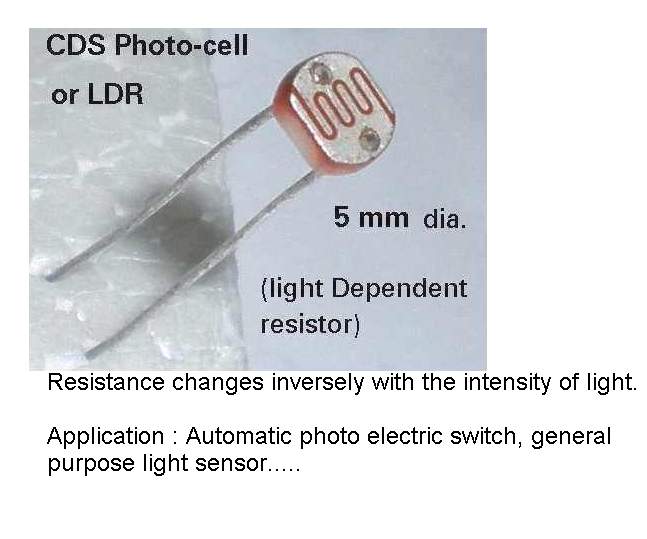

Cadmium Sulphide (CdS) photocell
(or  Light Dependent Resistor, LDR)
 GL5528

RM 0.70 / pc.
Datasheet (pdf)

(Related Hobby kit : ES-07)  (html)



Double  elements Pyroelectric
Infrared Sensor



Application :  Passive infrared motion detector.
Learn more about pyroelectric sensor
( Motion detector project )
(pdf)
Related project : Project #2

Datasheet (pdf)

RE200B         RM 4.20 / pc

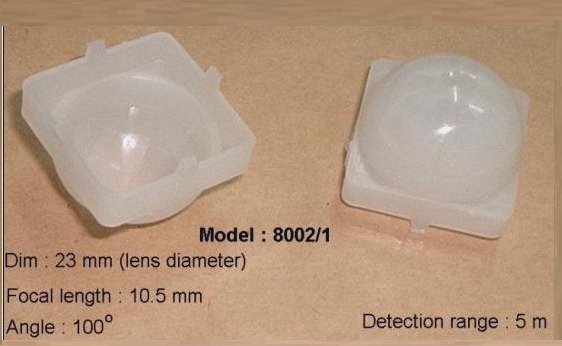

Fresnel Lens

(to be use with
RE200B )
Fresnel Lens.JPG (181237 bytes)
 8002/1
Application :  Fresnel lens for passive infrared motion detector module

Application example :
Project #2 (PIR Motion Detector)

RM 2.20 / pc.

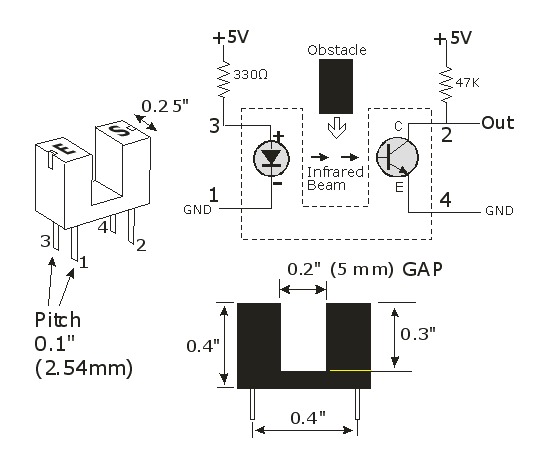

Slotted Optical Switch
Application :
Performs Non-Contact Interruptive Object Sensing

Schematic and pin arrangement  (jpg)

How to use  IR slotted optical switch (link)

RM
1.00 / pc.

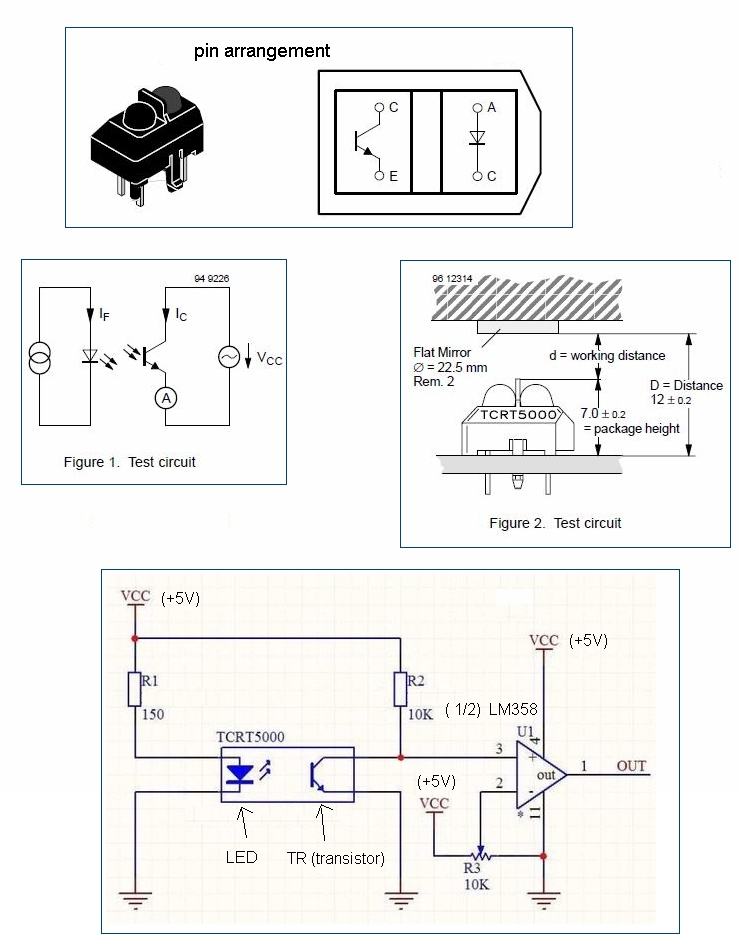

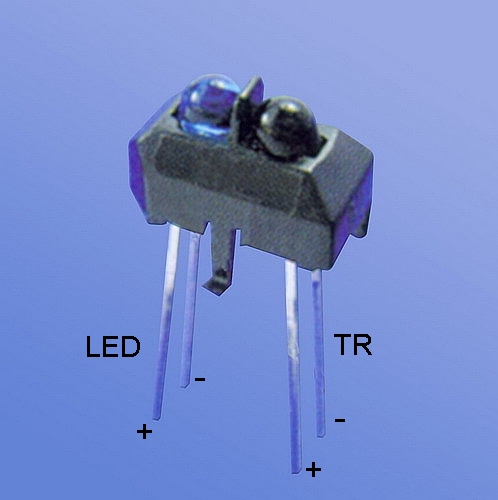

Reflective Optical Sensor

No. TCRT5000

RM 1.25 / pc.
Test circuit & pin-out
Datasheet (pdf)



TEMPERATURE SENSORS & SWITCHES

Digital Temperature Sensor IC    ( -55 ~ 125oC)
   Programmable Resolution 1-Wire Digital Temperature Sensor
Datasheet (pdf)

 DS18B20

RM 6.70 / pc.

Analog Temperature
Sensor IC
    ( 0 ~ 100oC)

Related project :
(Project #3)
"
Temperature Controlled Relay"
Datasheet (pdf)

 LM-35DZ

 RM 6.00 / pc.

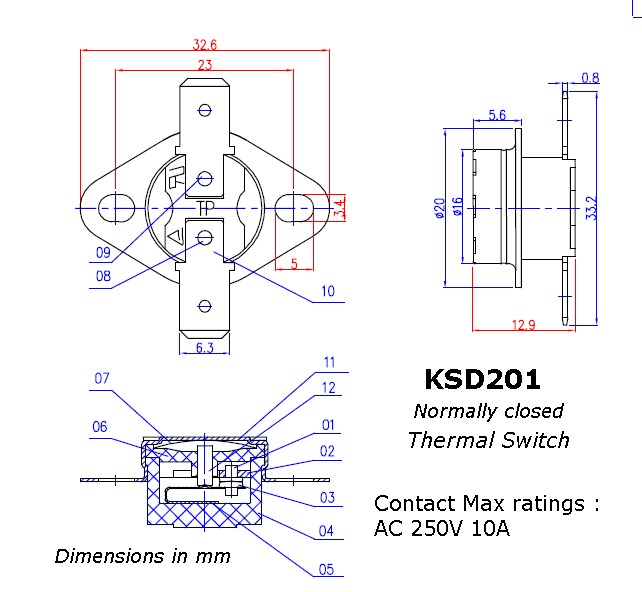

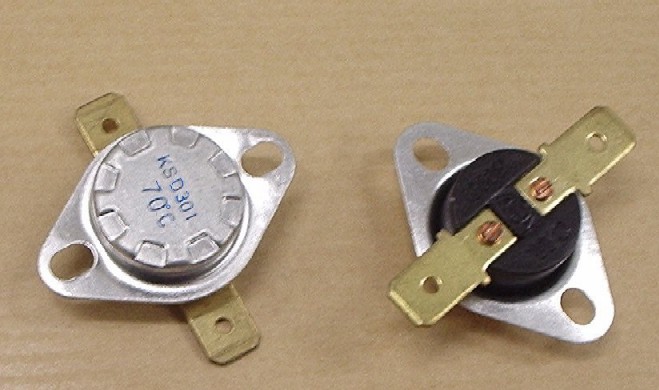

Temperature Switch

 KSD201

Normally closed. Opens when temperature exceed 70o C.
Rated : AC 250V 10A
Application :
General purpose temperature regulator

Dimension (jpg)
RM
  5.00 / pc.

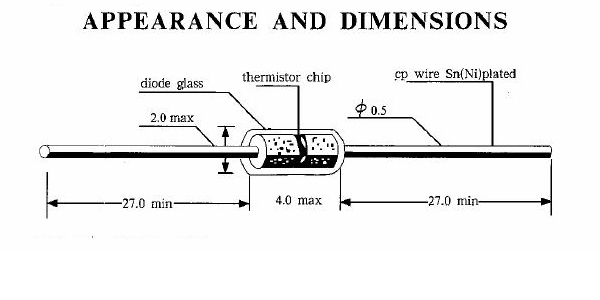

Glass encapsulated NTC thermistor

MF58-104

(100KΩ @ 25oC)

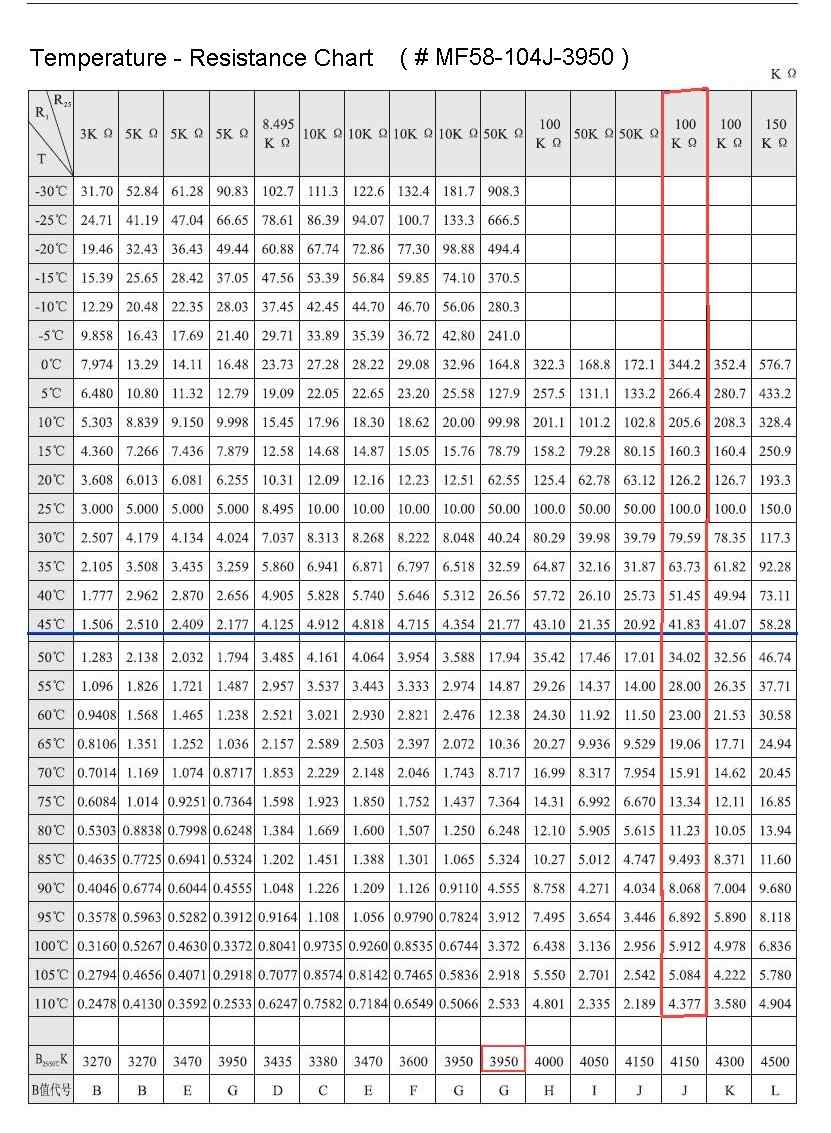

Temp-Resistancse chart

RM 0.65
Dimension

 NTC thermistor

MF52E

(10KΩ @ 25oC)


RM 0.60

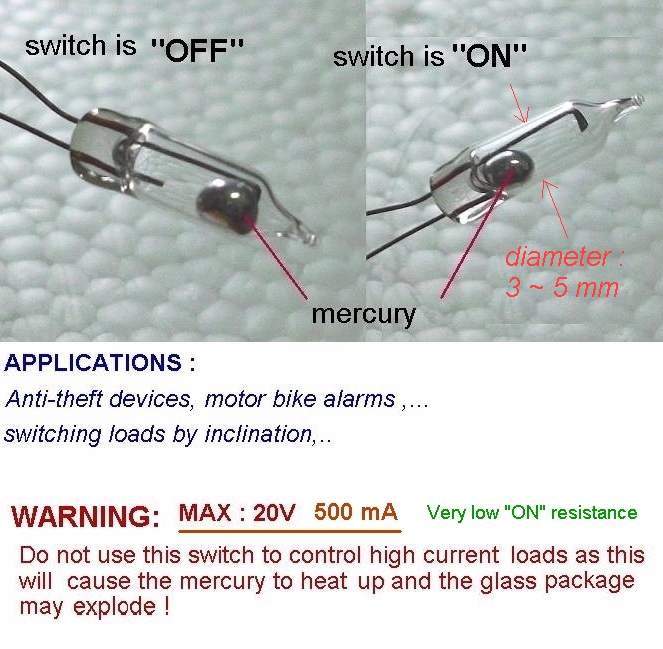

Mercury tilt switch



RM 1.00 / pc.

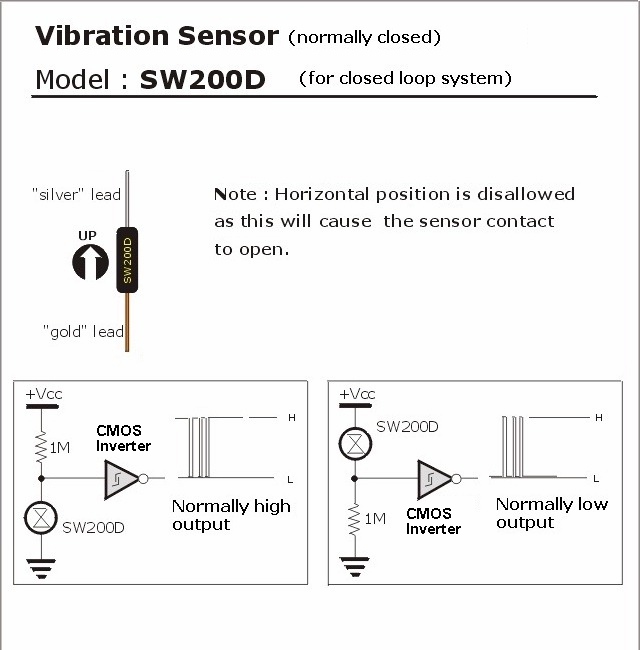

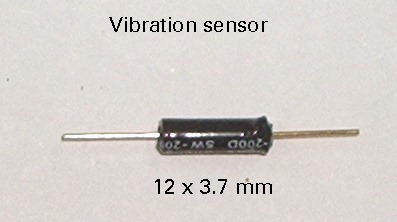

Micro Vibration Sensor

Application :  Alarm system, anti-theft devices
Schematic and pin arrangement  (jpg)

 SW-200D

RM
1.00 / pc.

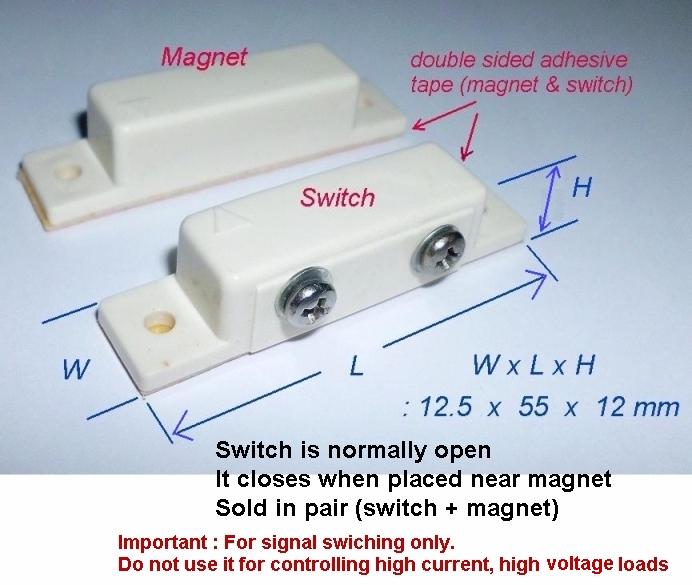

Magnetic  Switch for security alarm system



RM 6.00
  / pair

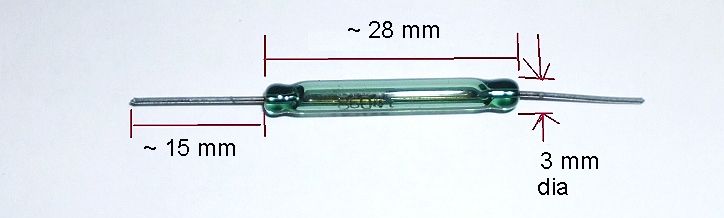

Magnetic  Reed Switch
(High quality. Made in Japan)


Normally open.  Contact closes when placed near a strong magnet

How to use a reed switch

How Reed Switch Works

RM
2.00  / pc.

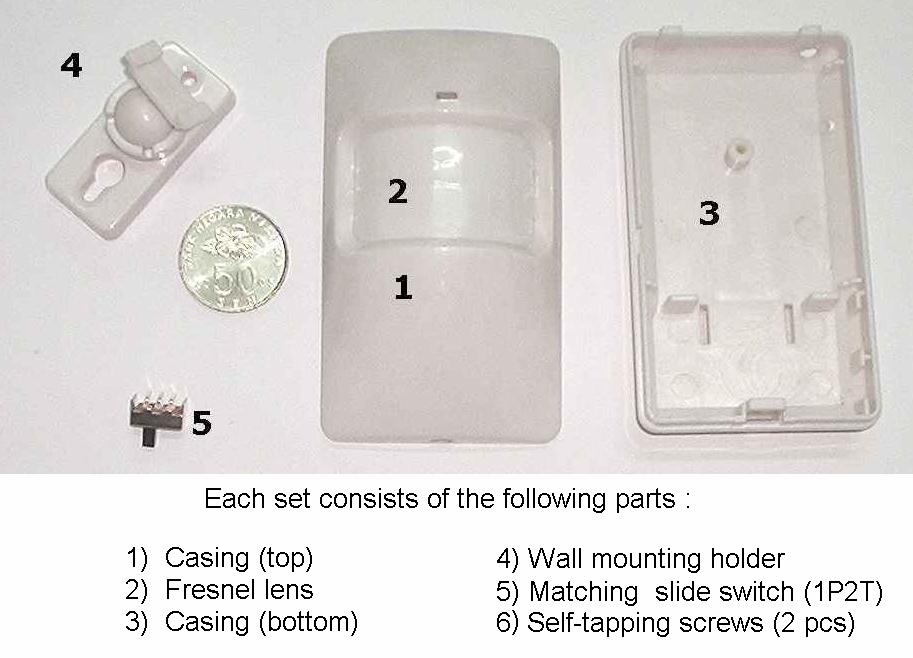

Customized plastic
enclosure for PIR Motion
Detector projects


Model :
 9918
 PCB guide for this casing :  Protel & pdf format (true size)

 RM 9.00

Details & dimensions (pdf)



Hall Effect Sensor IC


No.

DN6851

RM
3.00 / pc.
Datasheet (pdf)


No.
 A3144

RM
1.00 / pc.
Datasheet (pdf)

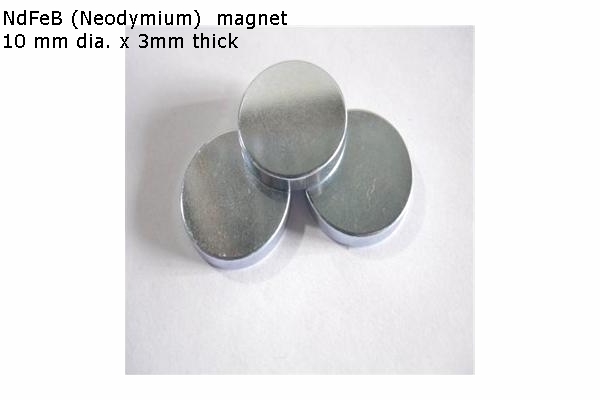

Disc Magnet 10x3mm
Very strong, round permanent magnet. Can be used with Hall effect sensors, magnetic switches, & more..

RM 0.75  / pc.

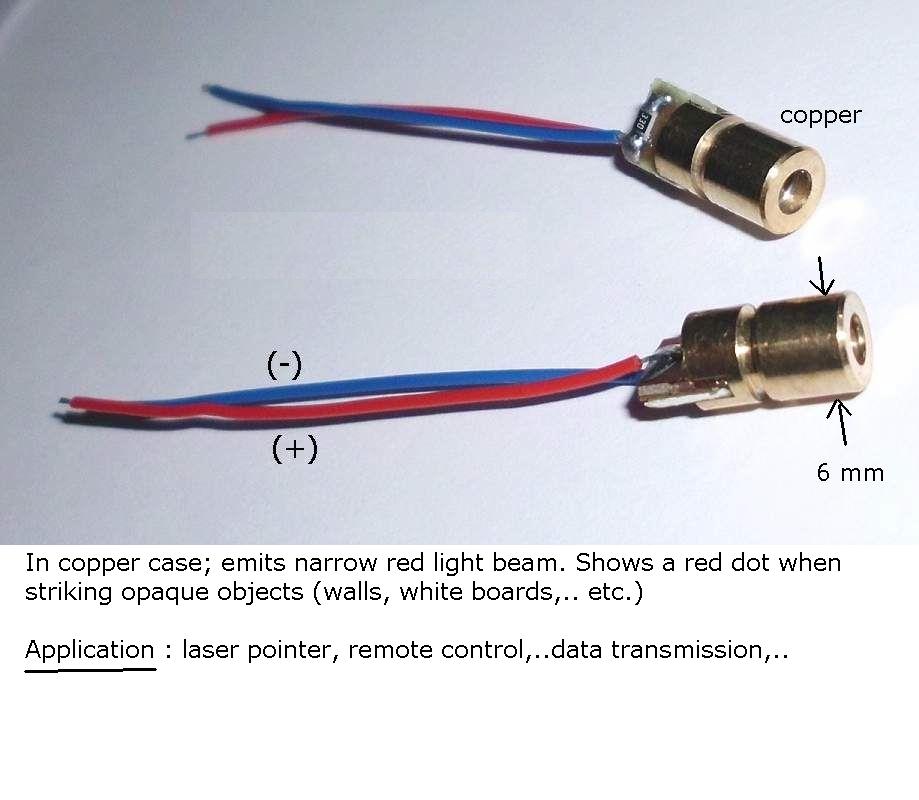

Laser Emitter Module

Diameter : 6 mm
Power : 5mW
Operating voltage :
DC 3V
Current :  ~20mA
Wavelength : 650nm

WARNING : Never look directly into the laser beam !!

RM
1.50  / pc.
Connects directly to any DC3V supply.
For DC 5V operation, connects a 120 Ω (1/6W or 1/4W)  resistor in series with the red (+) lead
