PCBs, Breadboards, Veroboards, PCB standoffs ...

HOW TO CREATE CUSTOMISED PCB USING UV SENSITIZED PCB (.pdf)

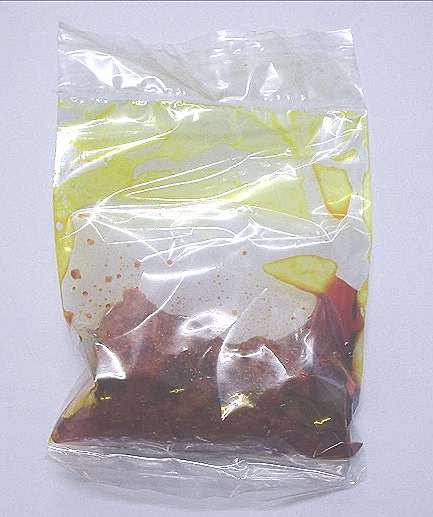

PCB Etchant (Ferric Chloride powder)
Mix with 500 ml. of tap water to make etching solution (140g / packet)

RM 4.80 / packet
RM 4.20 / packet ( 2 +)

RM 4.60 / packet (25g)

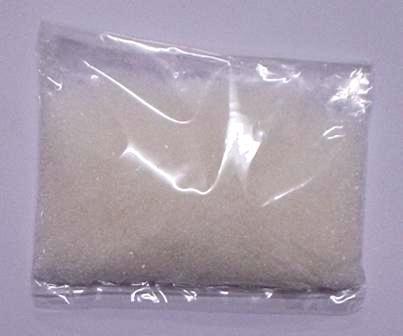

Developer for UV presensitized PCB (eg. PP1530,...) In crystal form (25g)

Preparation of solution :
Empty the contents of the pp bag into a plastic container with 500ml of tap water. Stir well until the crystal completely dissolves

PCB, Veroboards

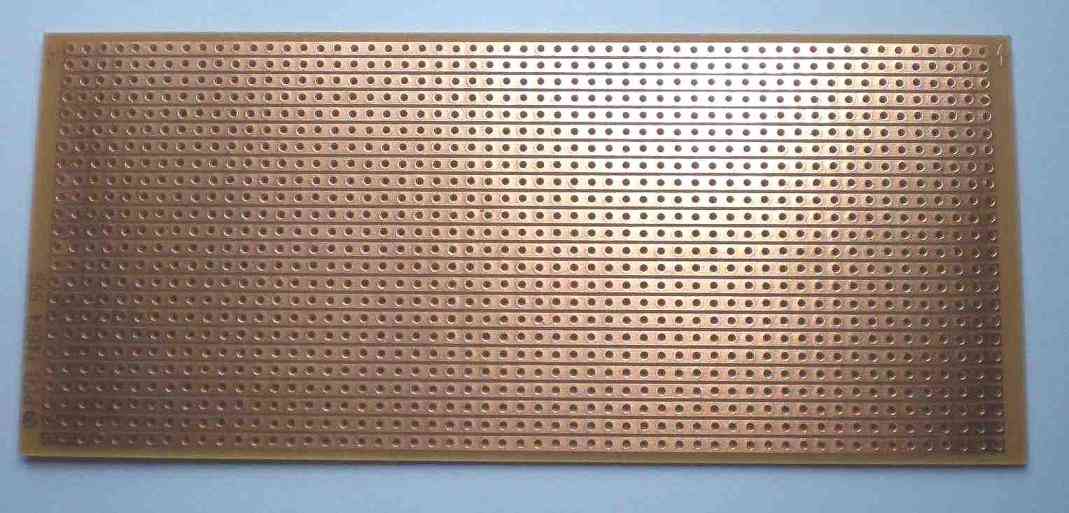

Single-side Veroboard ( No. 01)
Size : 14.5 x 6 cm. Thickness : 1.6 mm
Material : paper phenolic
Copper pattern : parallel strips RM 2.20 each

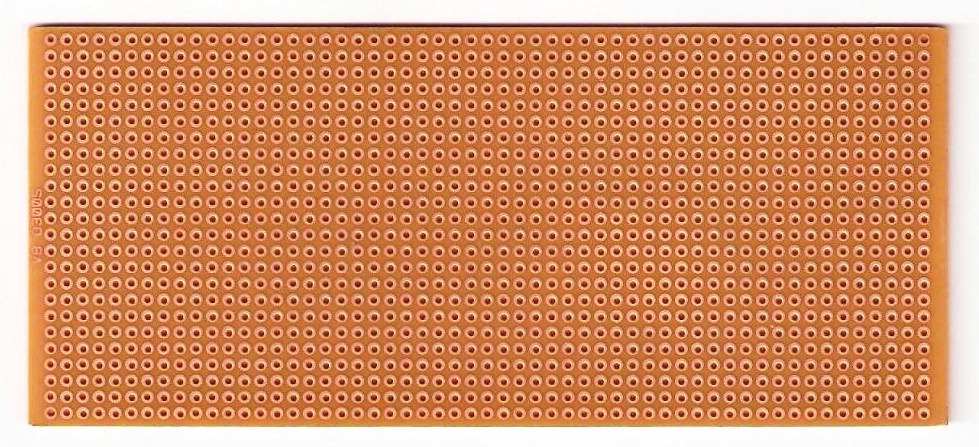

Single-side Veroboard ( No. 03 )
Size : 14.5 x 6 cm. Thickness : 1.6 mm
Material : paper phenolic
Copper pattern : Isolated donut pads

RM 2.20 each

How breadboard works & how to use it ...

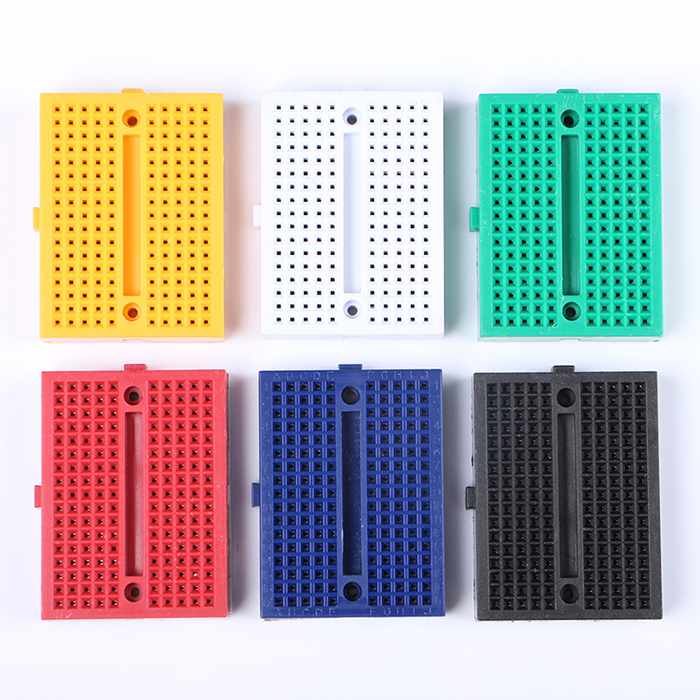

Mini Solderless Breadboard
(Size : 35 x 47mm) 170 holes
Assorted colors. Ship randomly

No. SYB-170 RM 3.40 each

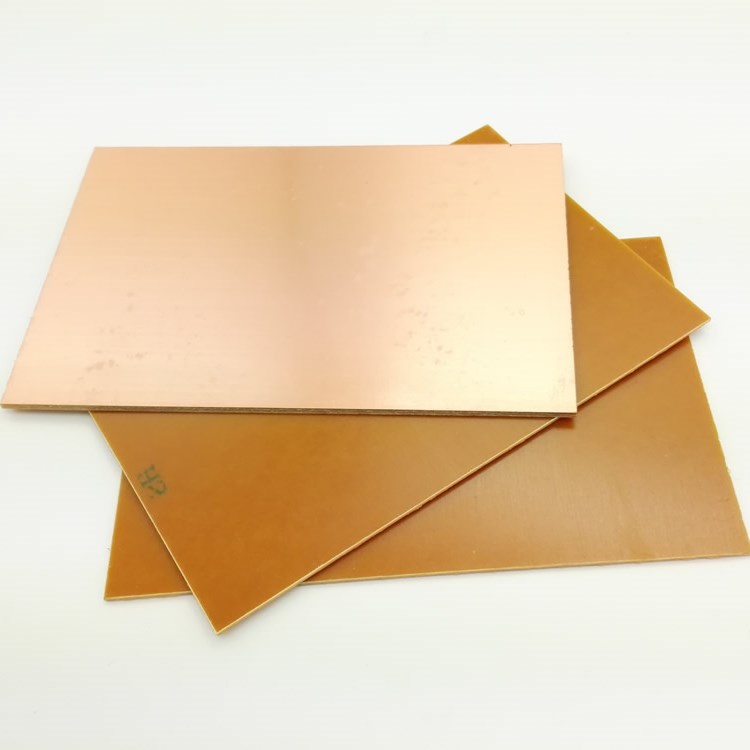

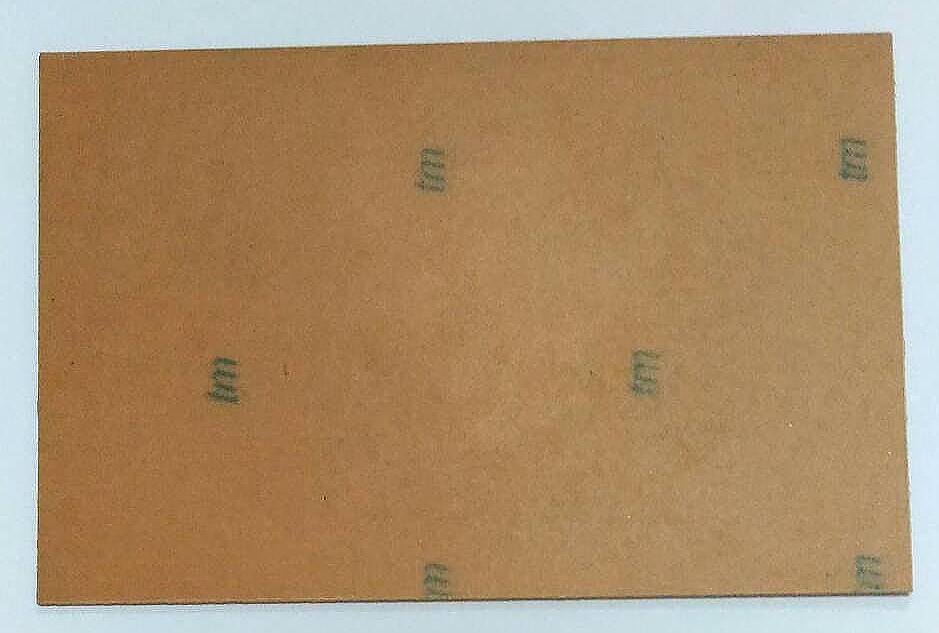

	Single-side copper clad board ( No. SS-1015) Size : 10 x 15 cm. Thickness : 1.2 mm Material : paper phenolic	RM 4.00 each

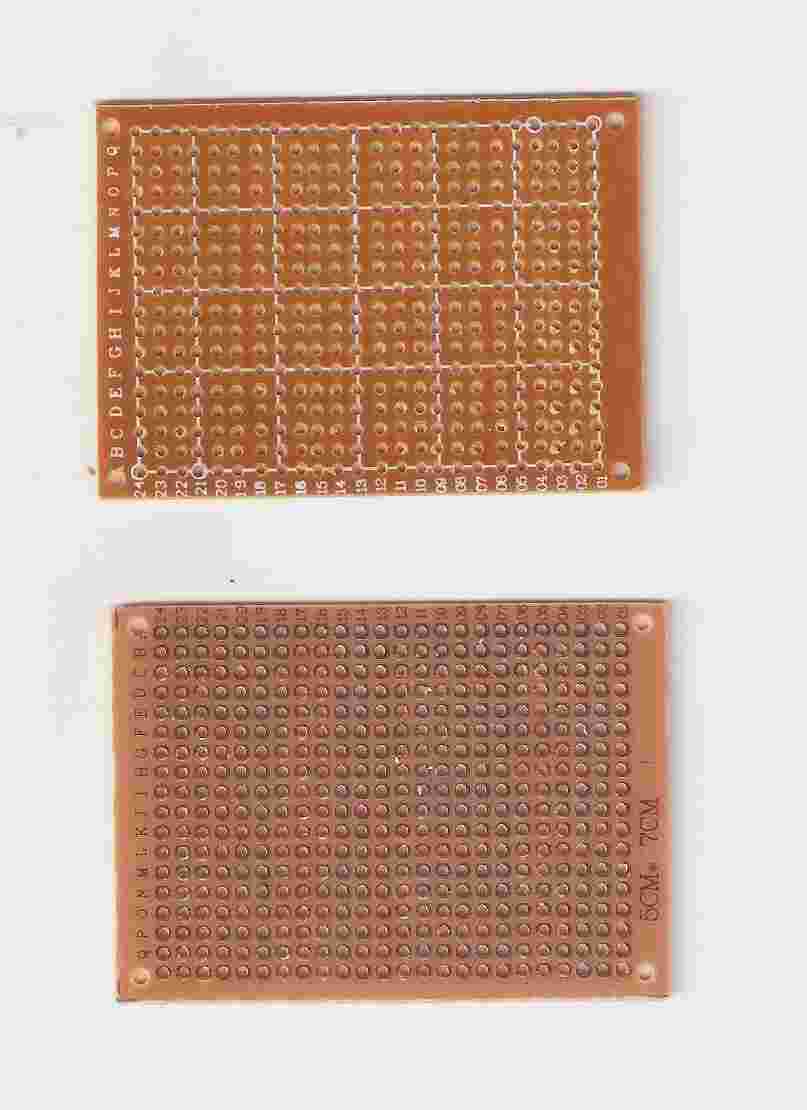

	Small Single-side donut board ( No. 0507 ) Size : 5 x 7 cm. Thickness : 1.2 mm Material : paper phenolic Copper pattern : Isolated donut pads	RM 1.20 each

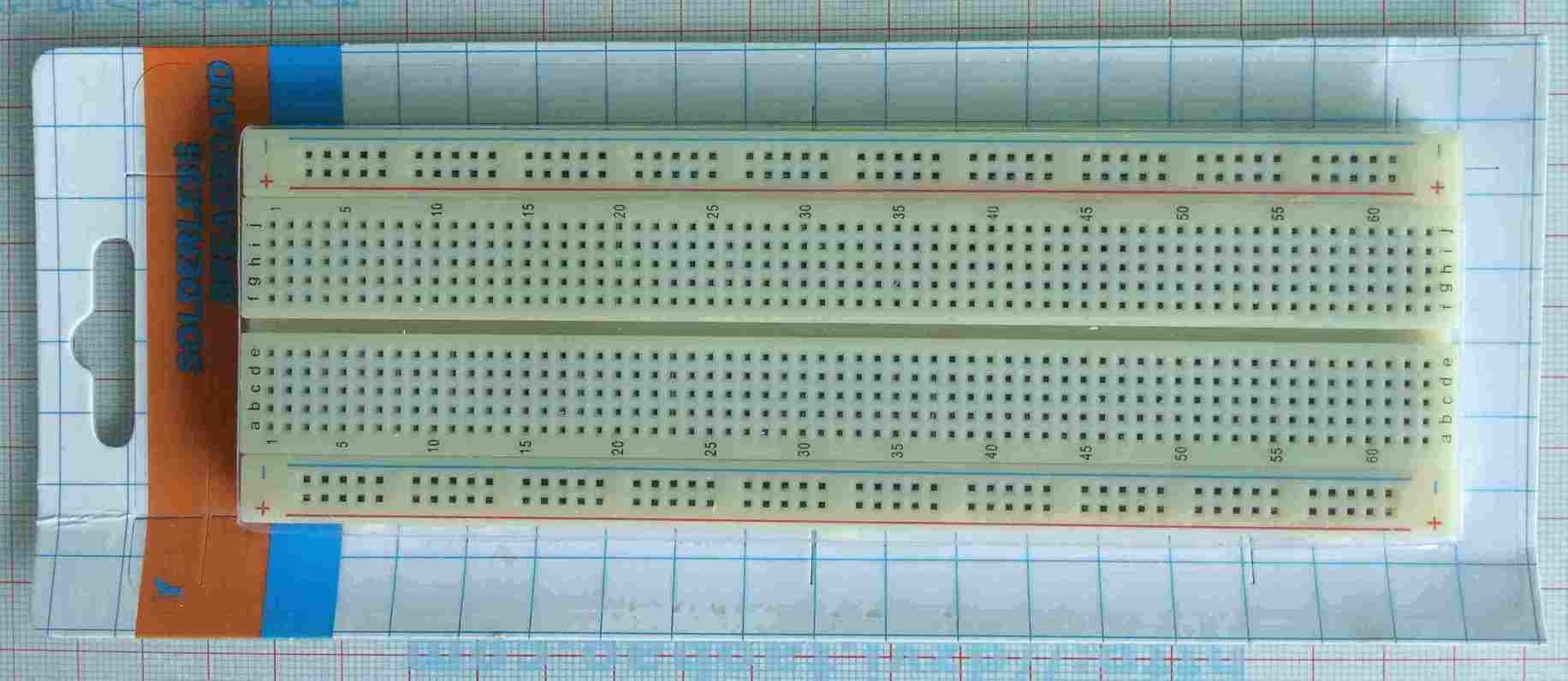

	Solderless Breadboard (Size : 16.5 x 5.5 cm) 830 holes No. MB-102 How breadboard works & how to use it ...	RM 9.00 each

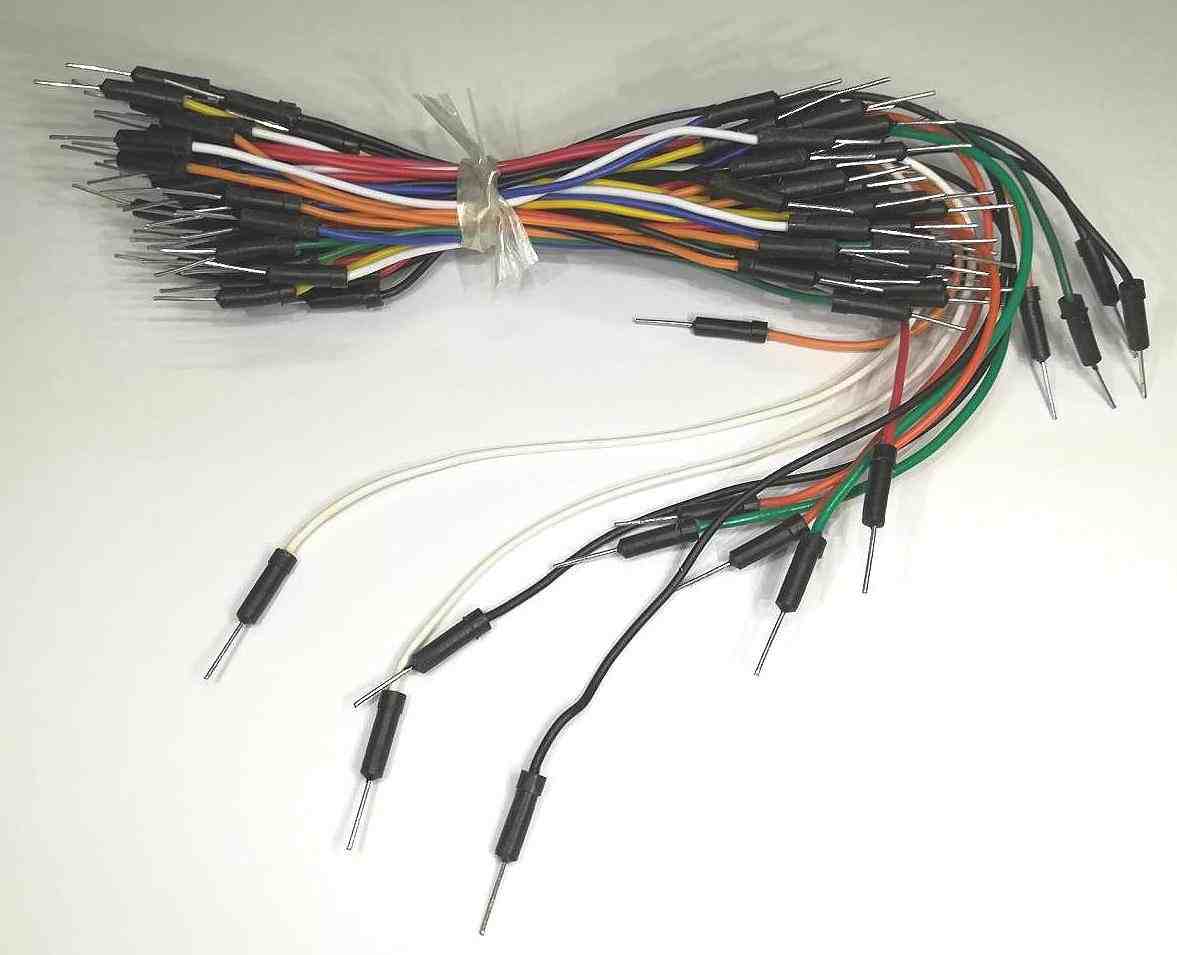

	Bread Board Jumpers (65 pcs) Bundle of approx. 65 pcs of various colours & lengths	RM 6.00 / bundle

PCB Standoffs, Separators

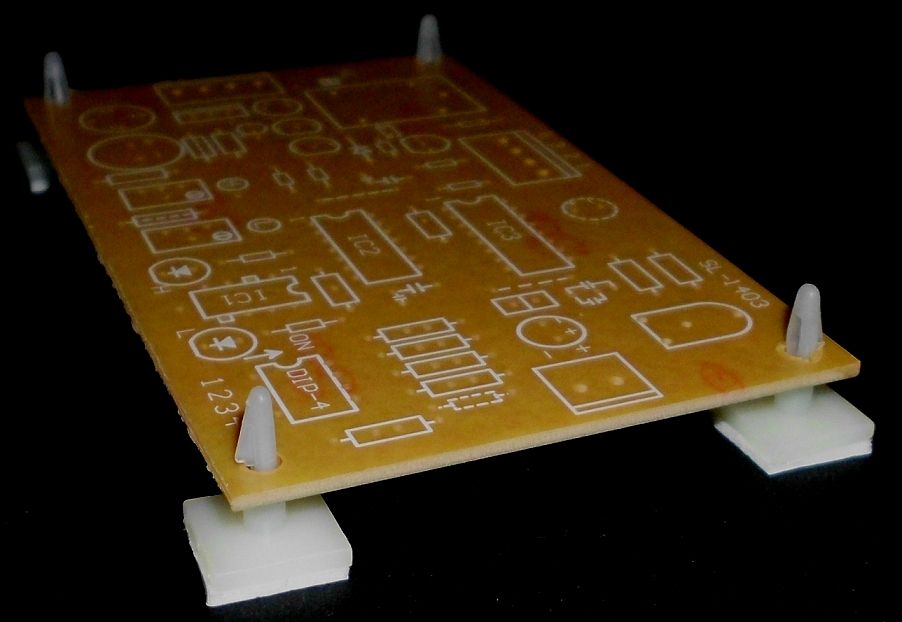

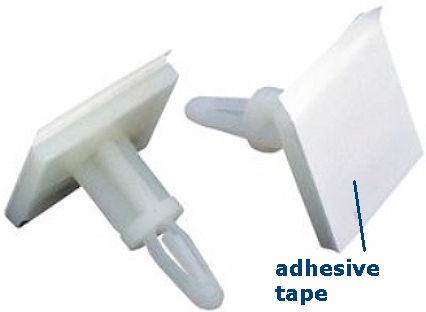

8mm Nylon PCB standoff
with adhesive base

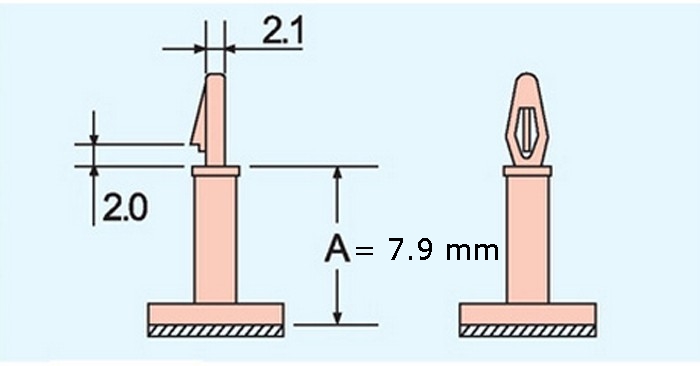

Dimensions / Photo
No. HC-8
RM 0.40

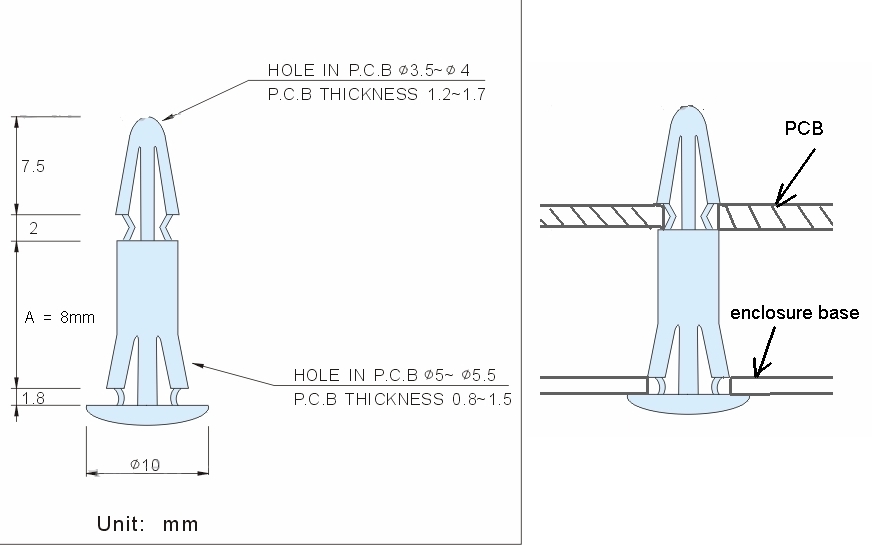

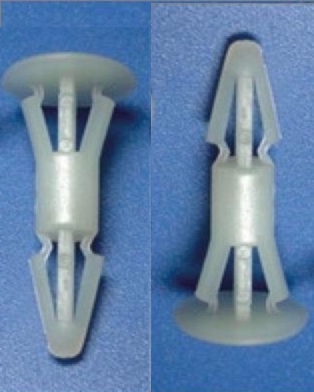

8mm Reverse locking
PCB support

Dimensions
No. RC-8
RM 0.40

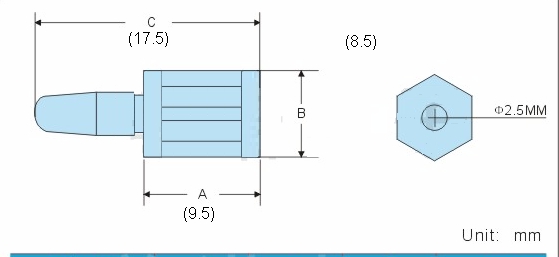

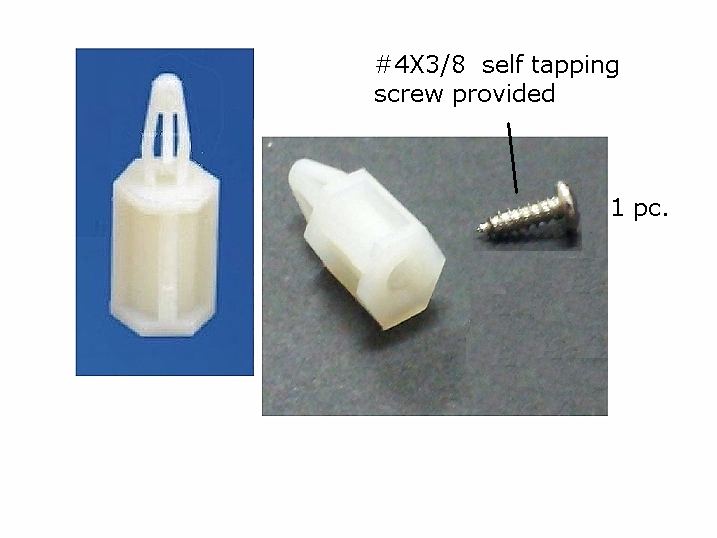

9.5mm Nylon PCB standoff

Dimensions
No. H-95
RM 0.35
(with self tapping screw)

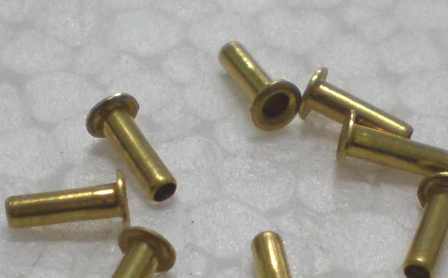

Copper Eyelets for pcb

(7.5 x 2mm)

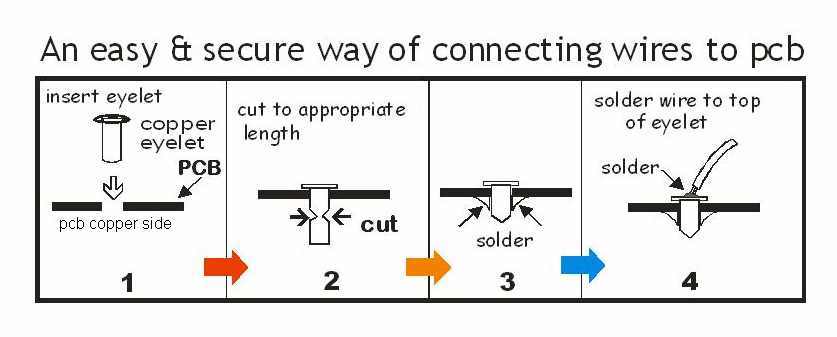

mounting instruction
RM 0.80 / bag
(packing : 10 pcs/bag

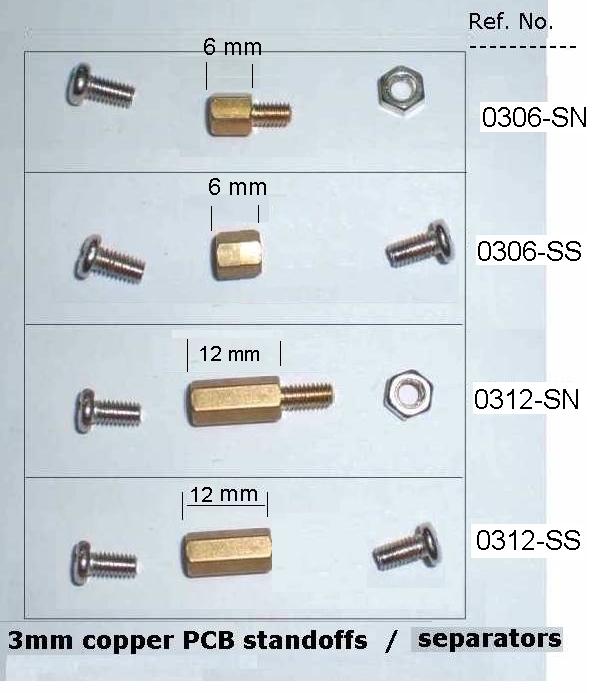

Copper Standoffs for PCB
(details)	Reference No	RM /pc
	0306-SN	RM 0.50
	0306-SS	RM 0.50
	0312-SN	RM 0.60
	0312-SS	RM 0.60

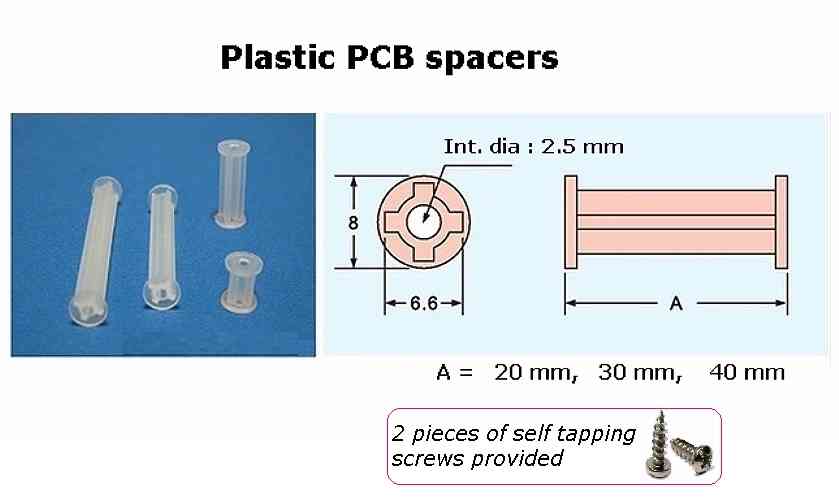

Plastic PCB Spacers

20mm -- RM 0.30
30mm -- RM 0.35
40mm -- RM 0.38

(with 2 self tapping screws)

** NOTE : Items with prices in red are not discountable **

TOOLS

PCB & Acrylic board Cutter & Spare Blades
Cutters		Matching Spare Blades

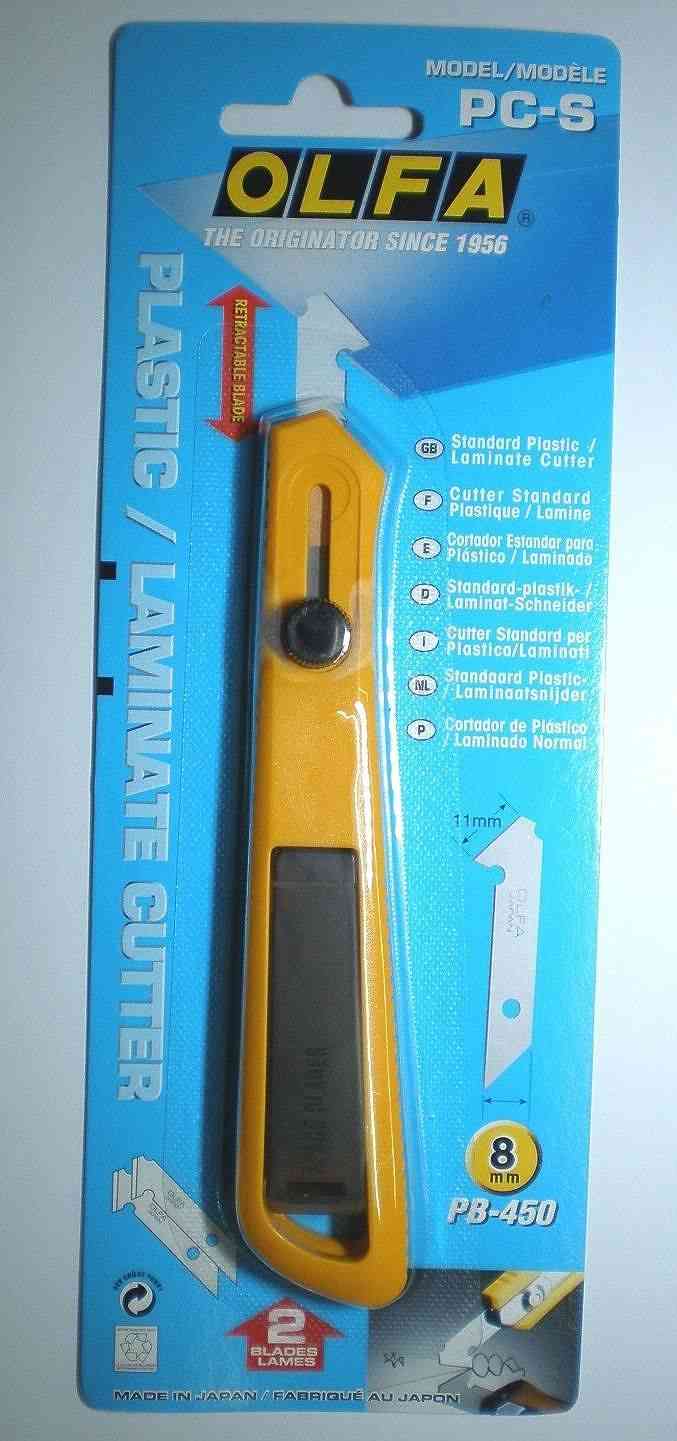

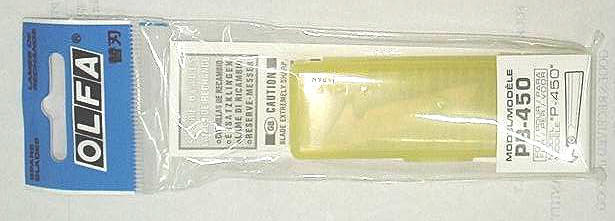

PC-S (professional)	Comes with 3 blades Made in Japan RM 23.00 each	PB-450	Spare blades for P-450 or PC-S cutters 5 blades / box Made in Japan RM 10.00 / box

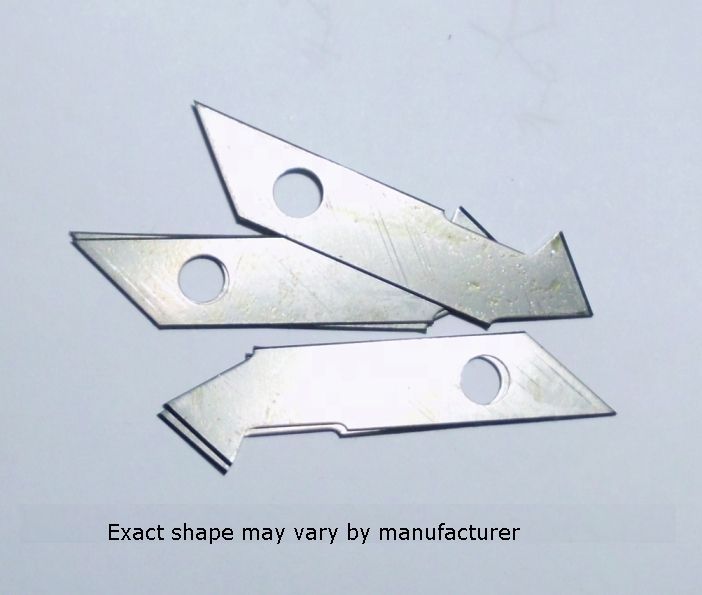

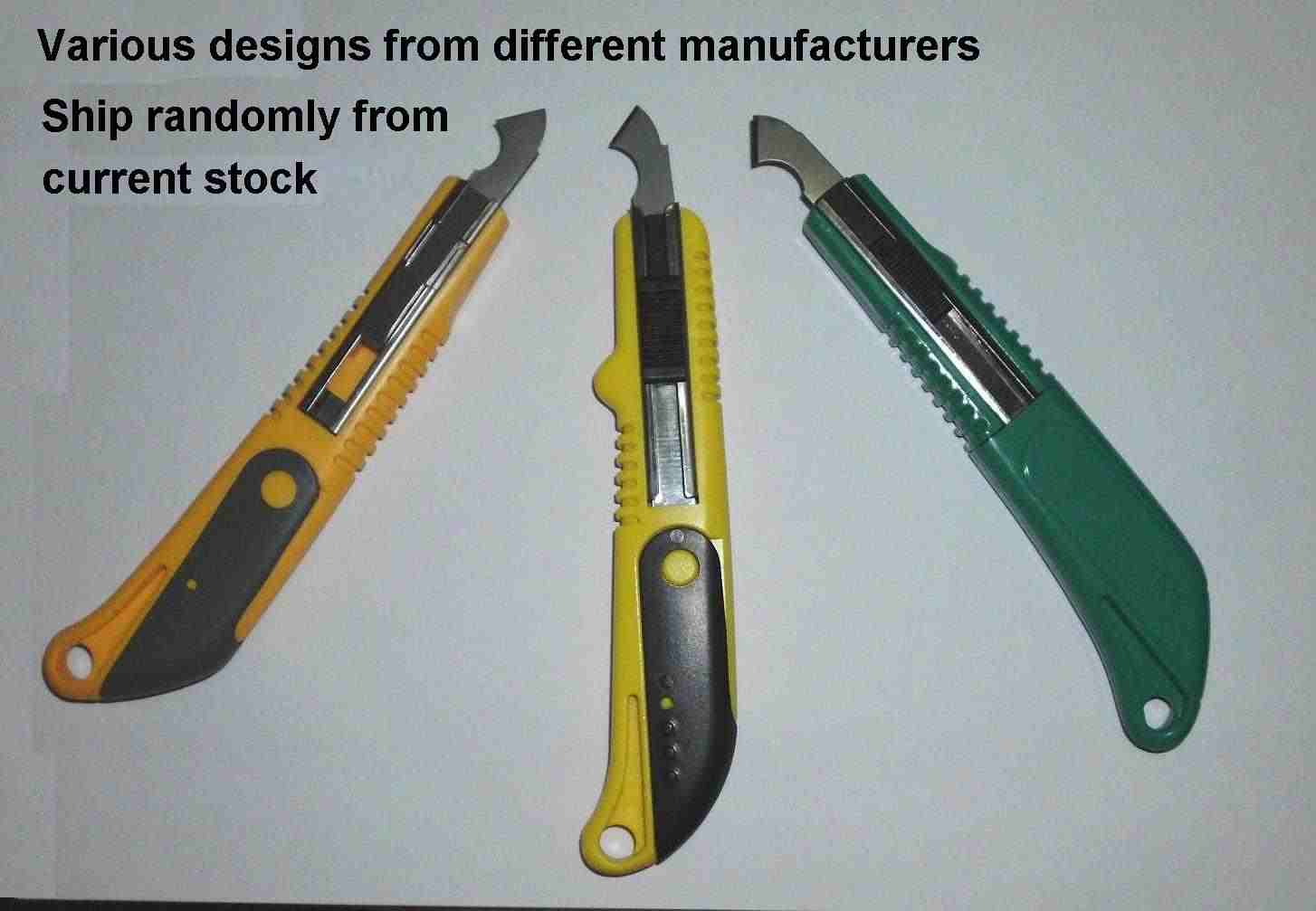

FL-80 (DIY/Hobby)	2 blades included RM 8.50 each Color: yellow, blue, green, etc.. Ship randomly	FLB-80	Spare blades for FL-80 cutter RM 5.50 / bag (10 pcs / bag)

Ceramic Tip Alignment Tool

No. SWD-100C

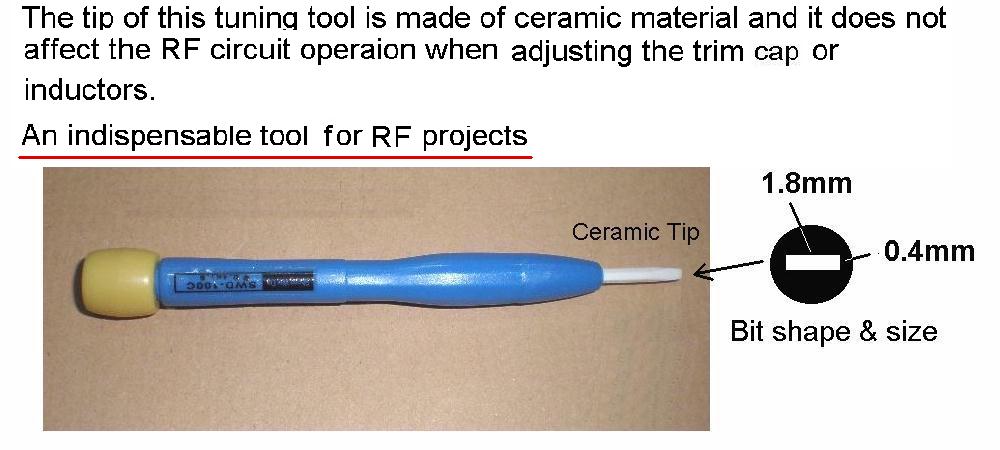

Ceramic tip tuning tool. For tuning RF trimmer caps and coils
RM 6.50 each

"UNI" fine tip paint marker for drawing pcb tracks (etch resist).   Oil-base water resistant. Writes on any surface.
Made by Mitsubishi.

Model : PX-21      RM 7.00 each
   (black only)

PCB Holder with magnifying glass

Ideal for working with SMD circuits

No. 209 RM 30.00

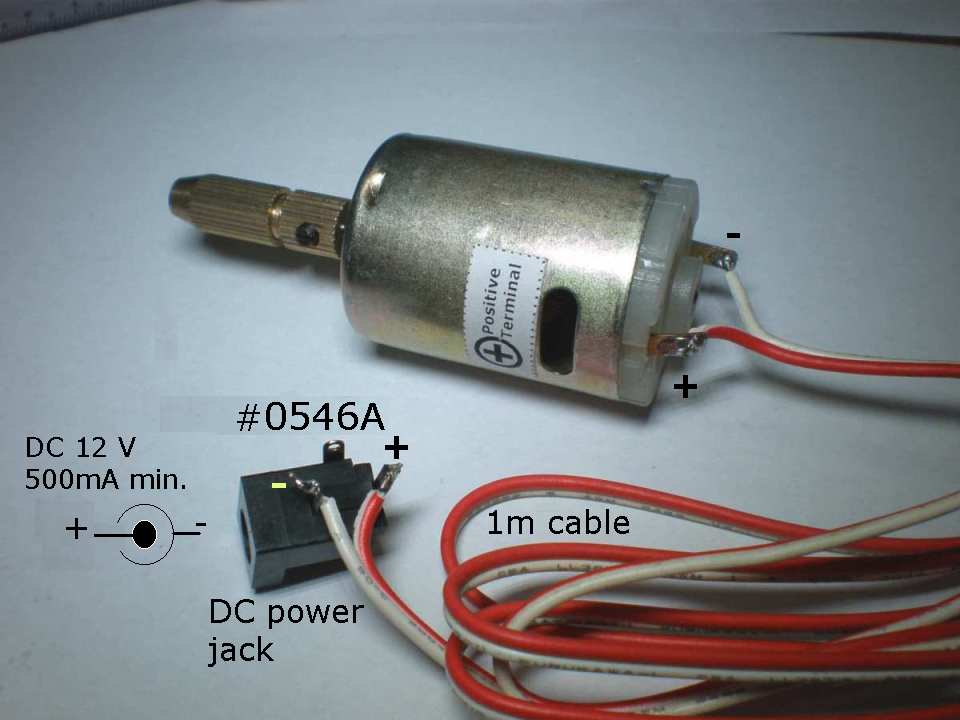

DIY Mini Drill kit ( for PCB's )

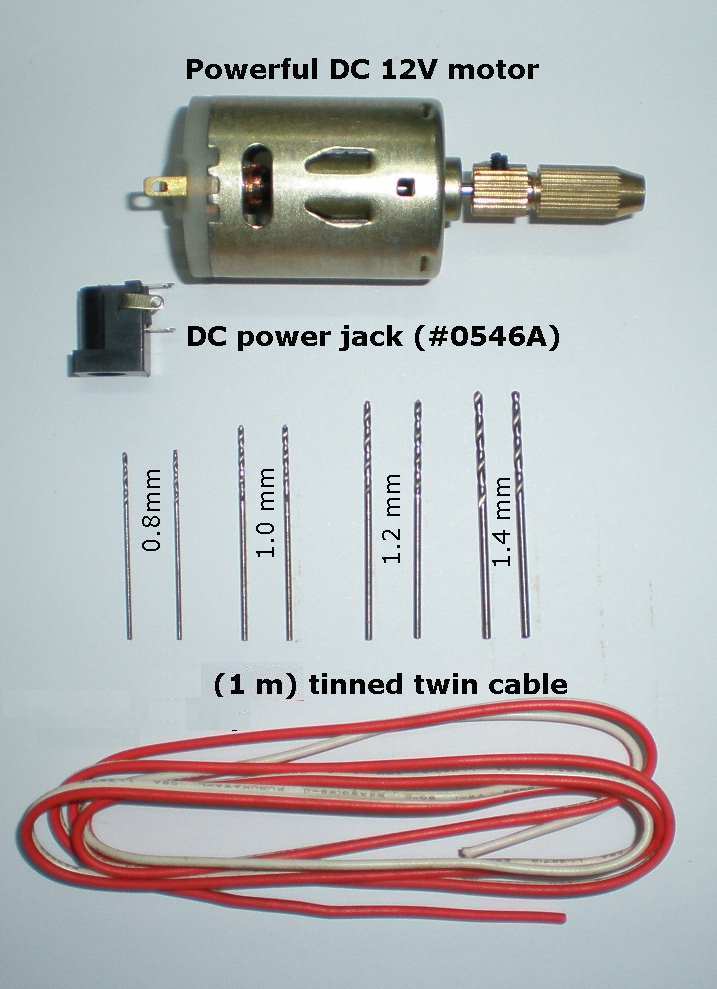

RM 24.00 / set (incl. all the parts shown in the picture)	Operating voltage : DC 9-12V (@ 500mA min.) You may use rechargeable batteries or DC 9/12V adaptors Assembly instruction (soldering required) ( How to install the drill chuck )

Desoldering Braid (solder wick)

No. CP-2015 RM 3.30

Silicone Heat Transfer Compound

Ref. No. : KS101
Improves heat transfer from power devices to heat-sinks
RM 5.00

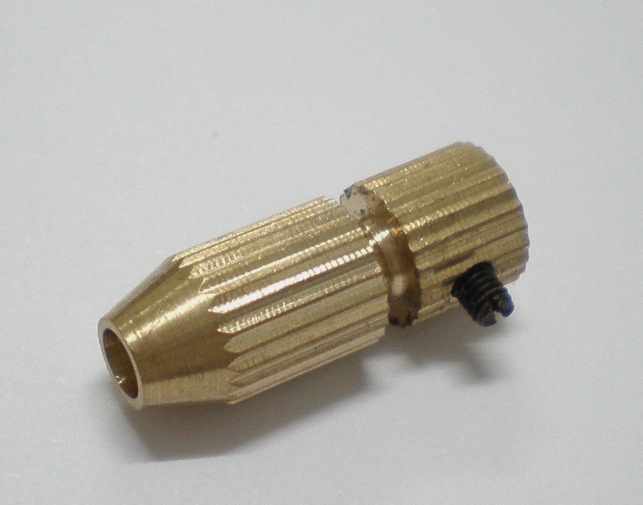

Drill Chucks (2 sizes available)	Small RM 6.50 each	Accepts drill bits of sizes 0.8, 1.0, 1.2, 1.4 mm
Drill Chucks (2 sizes available)	Large RM 6.50 each	Accepts drill bits of sizes 1.8, 2.0 mm

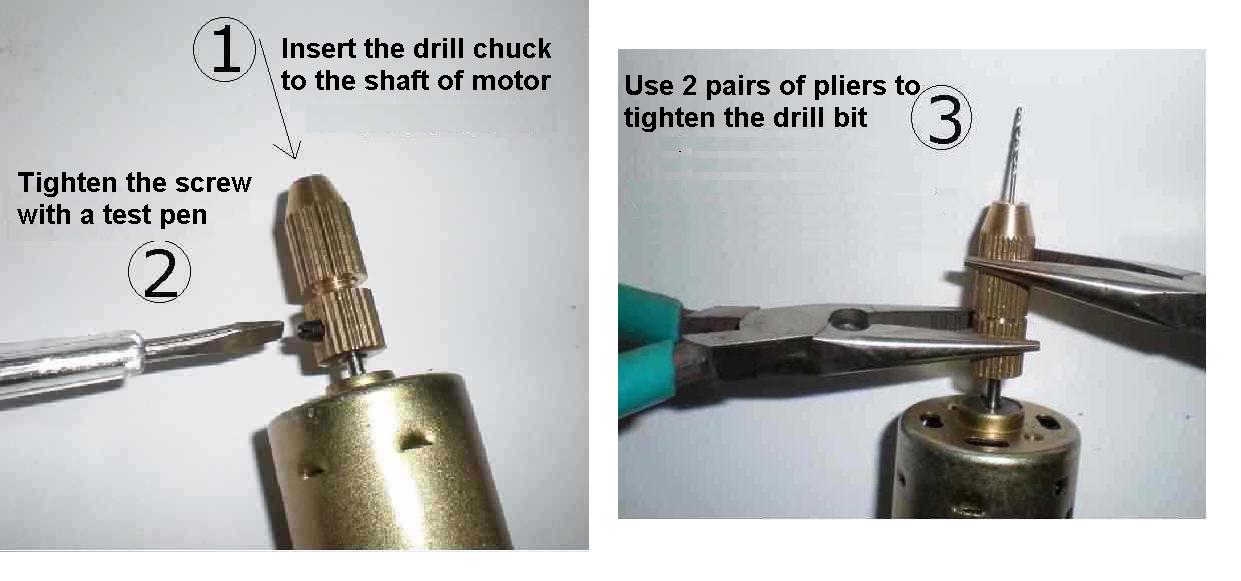

( How to install the drill chuck )

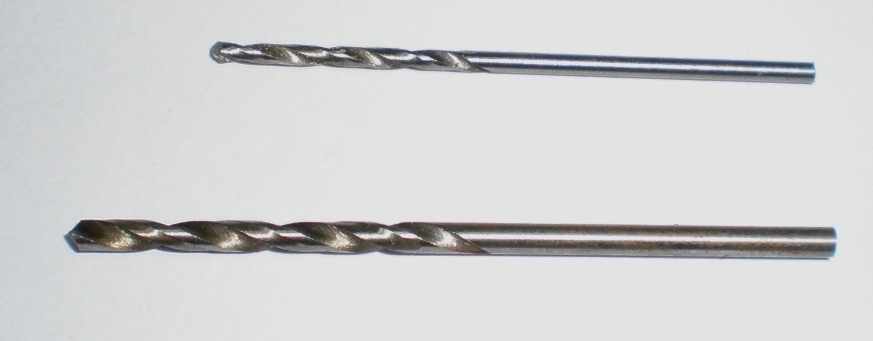

Drill Bits

RM 1.30 each
(any size)

Available sizes : (in mm)
0.8 1.0 1.2 1.4 2.0

Small Plastic Boxes for Electronic Projects

Internal view
RM 2.30

Plastic enclosure for small projects

External size :
60 x 50 x25 mm
There is a rectangular hole on each end of the box.
Colour : Black

Model : 01
Colour : black

RM 2.30

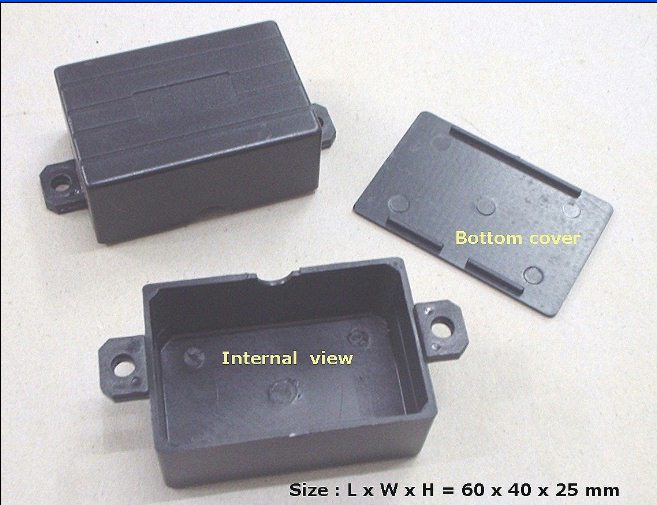

Plastic enclosure for small projects
External size :
60 x 40 x 25 mm
Colour : Black

Model : 02
Colour : black

White Plastic Box ( for electronic ballast projects & remote control)
RM 1.00

External size : 12 x 4.5 x 3.5 cm
Model : 06
Colour : white

Customized Passive Infrared Motion detector casing complete with accessories

Model : 9918
PCB guide for this casing : Protel & pdf format (true size)

RM 9.00

Details & dimensions (pdf)

Plastic box (ideal for electronic ballast projects)

Internal view
RM 3.00

External size : 16.5 x 4 x 3.5 cm
Colour : Black

Model : 05
Colour : black

escolkits@gmail.com
sales@escol.com.my

Download datasheet here
