Capacitors  (Ceramic, Mylar, Electrolytic)  &   Trim cap






Ceramic capacitor  (50V min.)
(pF) : 1p, 1.5p, 2p, 3p, 4p, 5p, 6p, 7p, 8p, 9P, 10p, 12p, 15p, 18p, 20p, 22p, 24p, 27p, 33p, 39p, 47p, 56p, 68p, 75p, 82p, 91p, 100p, 120p, 150p, 180p, 220p, 270p, 390p, 470p


RM 0.25 /pc


(uF ) 102, 152, 103, 104, 222, 223, 332,
        333, 472, 473

                                           RM
0.25
/pc   (50V min)


  (please do not order values that are not listed)

Capacitor conversion chart

pF nF uF or mF

(marking)

FARAD
10

*

*

10  or 10p *
100

*

*

100 or 101 *
1,000 1 0.001 102 or 1n *
10,000 10 0.01 103 or 10n *
100,000 100 0.1 104 or 100n *
1,000,000 1,000 1 105 *
* 10,000 10 * *
* 100,000 100  * *
* 1,000,000 1000 * 0.001
* * 10,000 * 0.01
* * 100,000 * 0.1
* * 1,000,000 * 1

Mylar  capacitors                        (50V min)
(uF)
:   102, 152, 103, 104, 154, 222, 272, 223, 273, 224, 332, 333, 471, 472, 473, 474, 561, 562, 563, 682, 683

                            RM
0.30
/pc

Capacitor markings (how to read them)

Examples : 102 = 0.001uF,  471 = 470 pF, 472 = 0.0047uF, 563 = 0.056uF, 333 = 0.033uF, 105 = 1uF

Examples : 102 = 0.001uF,  472 = 0.0047uF, 683 = 0.068uF, 333 = 0.033uF,  104 = 0.1uF




Radial lead
Electrolytic
Capacitors

(small values)





1 uF --- 50V - RM 0.20
2.2uF -- 50V - RM 0.20
3.3uF -- 50V - RM 0.20
4.7uF -- 50V - RM 0.20

10uF --- 35V - RM 0.25
10uF --- 50V - RM 0.30

22uF --- 50V - RM 0.38
33uF --- 50V - RM 0.40

47uF --- 16V - RM 0.38
47uF --- 35V - RM 0.40
100uF -- 16V - RM 0.40
100uF -- 25V - RM 0.45
220uF -- 16V - RM 0.42
220uF -- 35V - RM 0.45
330uF -- 6V3 - RM 0.40
330uF -- 16V - RM 0.45
470uF -- 10V - RM 0.38
470uF -- 16V - RM 0.50
470uF -- 35V - RM 0.75
470uF -- 50V - RM 1.00

High Voltage
1 uF ---- 350V - RM 0.80
1 uF ---- 450V - RM 1.10
10uF ---- 200V - RM 0.90
2.2uF --- 450V - RM 1.50
4.7uF --- 250V - RM 1.00
4.7uF --- 450V - RM 1.50

 Non-polarized
(for audio crossover)

2.2 uF ---- 50V - RM 0.80



Radial lead

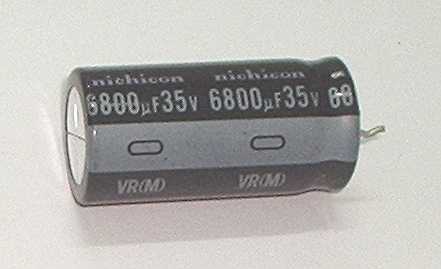

Large Electrolytic Capacitors
 1,000uF -- 10V - RM 0.40
 1,000uF -- 16V - RM 0.60
 1,000uF -- 25V - RM 1.00

1,000uF -- 50V - RM 1.50
 2,200uF -- 10V - RM 0.90
 2,200uF -- 35V - RM 2.00

2,200uF -- 50V - RM 2.50

 3,300uF -- 35V - RM 2.50
 4,700uF -- 16V - RM 2.20
 4,700uF -- 50V - RM 3.90
 6,800uF -- 35V - RM 4.20
 8,700uF -- 35V - RM 7.00
12,000uF -- 25V - RM 9.00

  (please do not order values that are not listed)

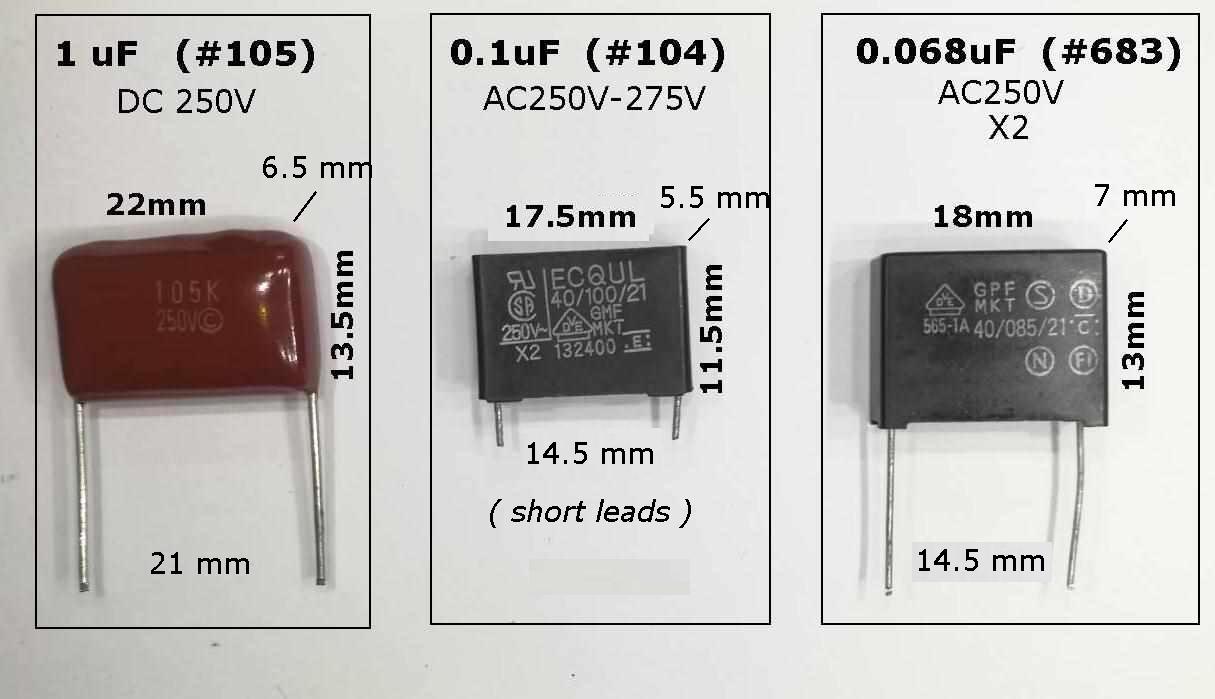

Film capacitors

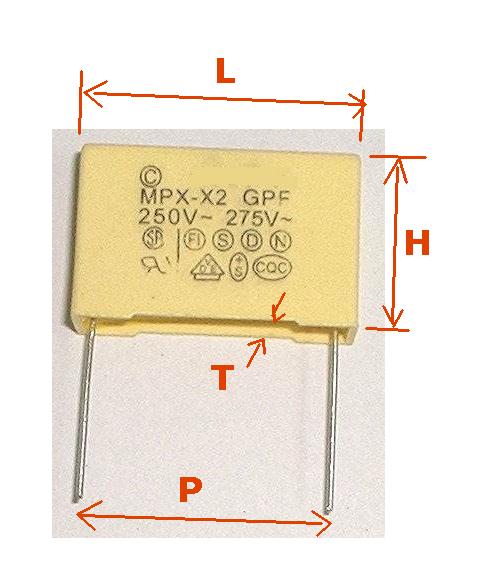

 0.068 uF (#683), (X2)AC 250V        pitch & dimensions  RM 0.70
 0.1 uF   (#104), (X2)AC 250V
(short leads)
 pitch & dimensions  RM 0.55
 0.22 uF  (#224), (X2)AC 250V     P=15
L=18,  H=14.5,  T=8 mm
 RM 1.10
 0.33 uF  (#334), (X2)AC 275V   P=15
L= 18,  H= 14.5, T=8 mm
 RM 1.30
 0.47 uF  (#474), (X2)AC 275V   P=16
L = 18,  H=16, T=10 mm
 RM 1.50
 0.68 uF  (#684), (X2)AC 250V   P=23
L=26,  H=20,  T=11 mm
 RM 1.80
 0.82 uF  (#824), (X2)AC 250V   P=23
L= 26, H=17, T=8 mm
 RM 1.80

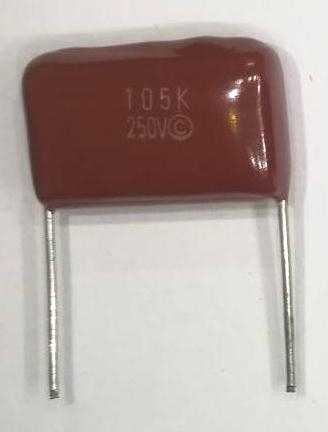

1 uF    (#105),  DC 250V    pitch & dimensions  RM 1.30

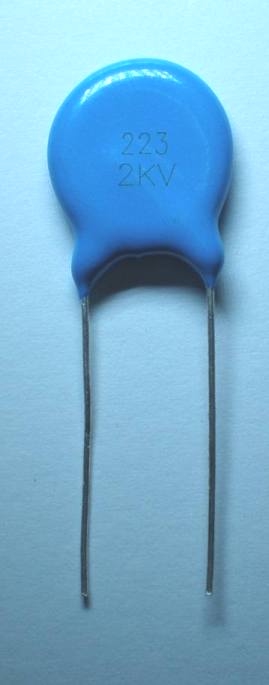

High Voltage capacitors

0.022uF (#223)  2KV    RM 1.30

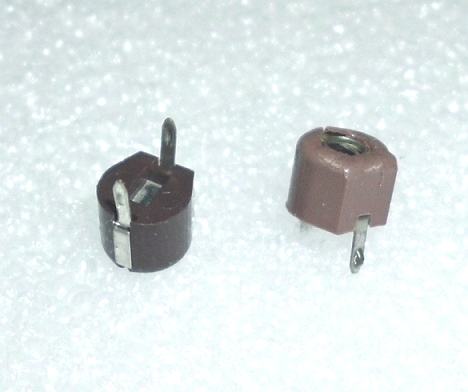

Trimmer  capacitors

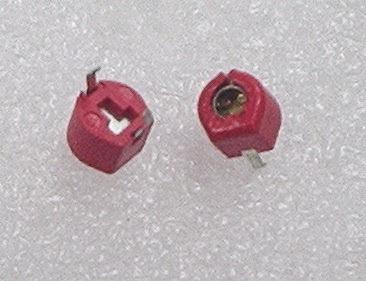

10pF (NPO)
RM
0.75

20 pF
RM 0.75

50 pF
RM 0.75
Recommended  ceramic tip alignment tool for the above trim caps.
A must for RF projects
(cap & coil adjustment)
    details & price
