Relays  &  Switches,  . . .


NOTE : relay contact types

  SPDT (or 1P2T) = Single Pole Double throw   NO    = Normally Open
  DPDT (or 2P2T) = Double Pole Double thro   NC    = Normally Closed
  DPST (or 2P1T) = Double Pole Single throw

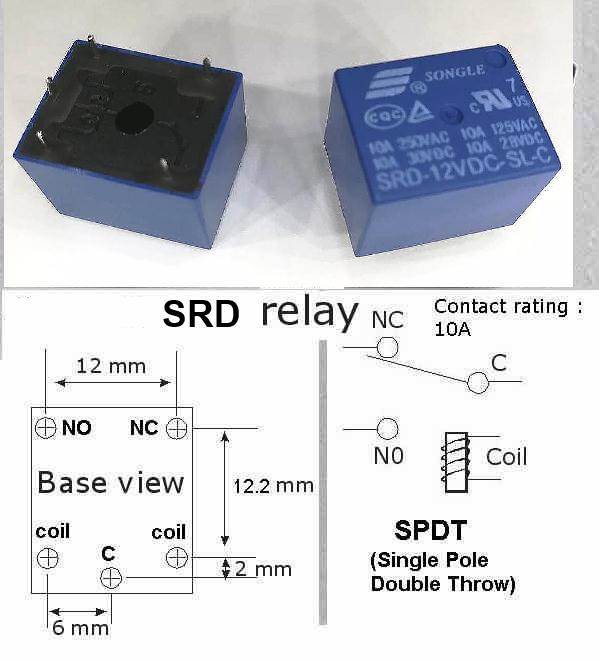

SPDT relay
Datasheet
SPDT
Contact : 10A
No.  SRD-03VDC  (or LEG-03)  DC 3V   coil  RM 2.80
No.  SRD-05VDC  (or LEG-035  DC 5V   coil
No.  SRD-09VDC  (or LEG-09)  DC 9V   coil
 No. SRD-12VDC  (or LEG-12) DC 12V  coil
 No. SRD-24VDC  (or LEG-24) DC 24V  coil
 No. G5Z-2A      OMRON Relay

DC 12V coil,  DPST-NO  (DPST)

Contact : 5A  Datasheet (pdf)
RM 3.40

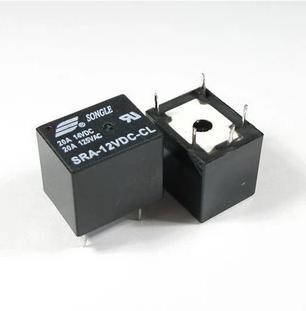

 SONGLE Relay
No.

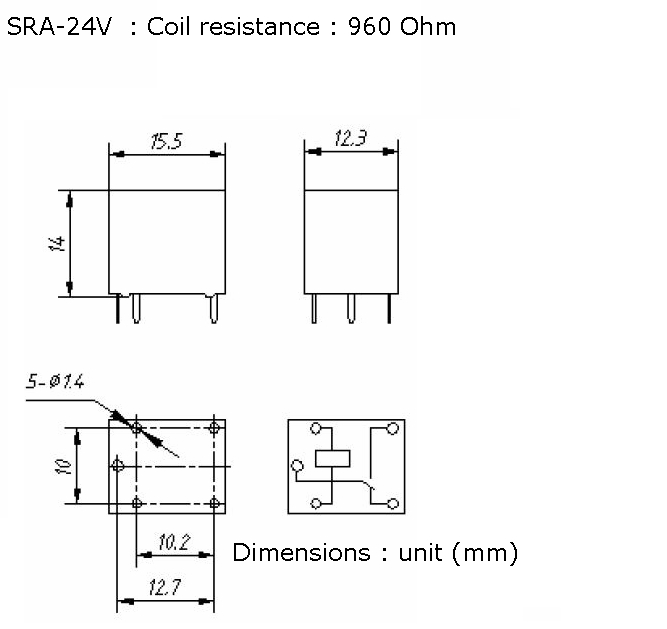

SRA-24V-CL
 (SPDT)

DC 24 coil,  Coil res.:960Ω
 Contact :

 N/C : 15A 14VDC , 10A 120VAC
 N/O : 20A 14VDC , 10A 120VAC

 Pin arrangement (jpg)


RM 3.00
  HAN KUK Relay (Korea)

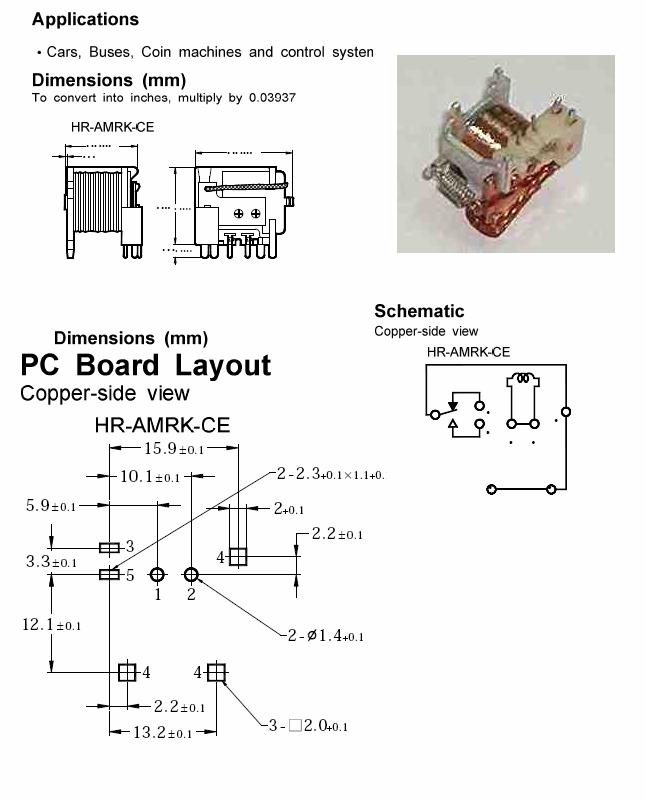

No. HR-AMR-K

Open type. DC 12V coil
 (Coil res. : 140 Ohm)

 Application : Heavy-duty high amp.
 switching
 Datasheet (pdf)
RM 5.50

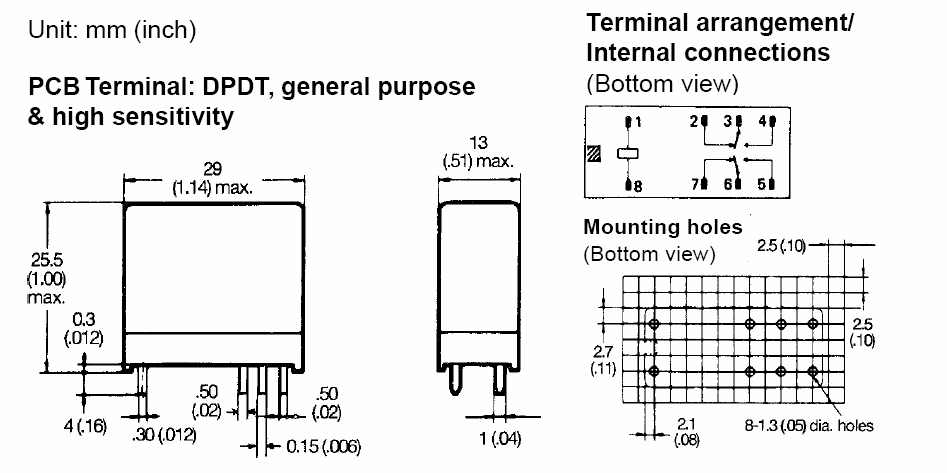

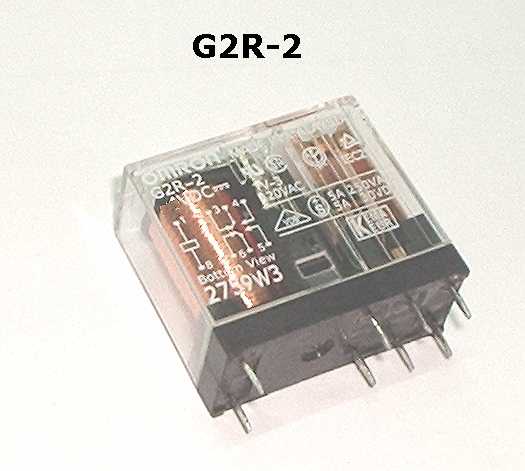

OMRON Relay

 No. G2R-2-12V        Coil : 275Ω

DC 12V coil,  DPDT,  Contact : 5A
RM 8.20
 No. G2R-2-24V        Coil : 1.1KΩ

DC 24V coil,  DPDT,  Contact : 5A
 Datasheet (pdf)
 Pin arrangement (jpg)

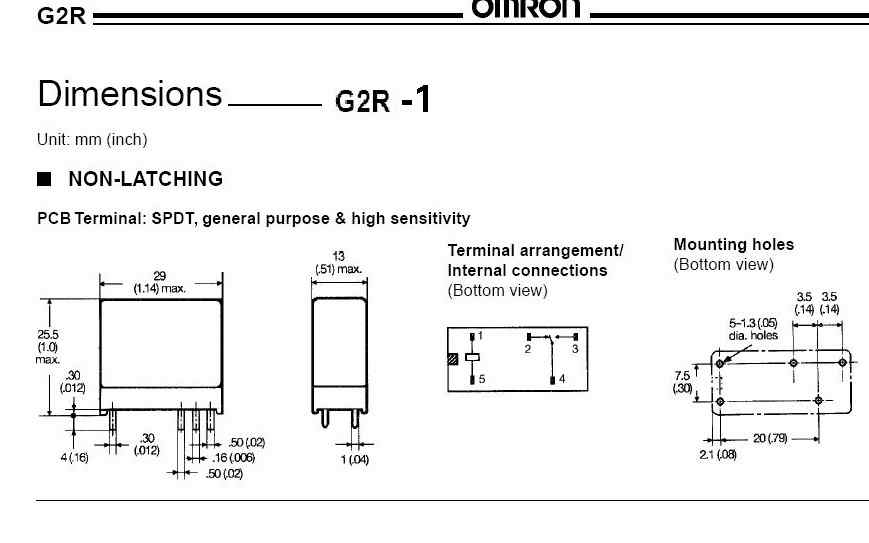

 No. G2R-1-12V        Coil : 275Ω

DC 12V coil,  SPDT,  Contact : 10A
 Datasheet (pdf)
 Pin arrangement (jpg)
RM 8.00

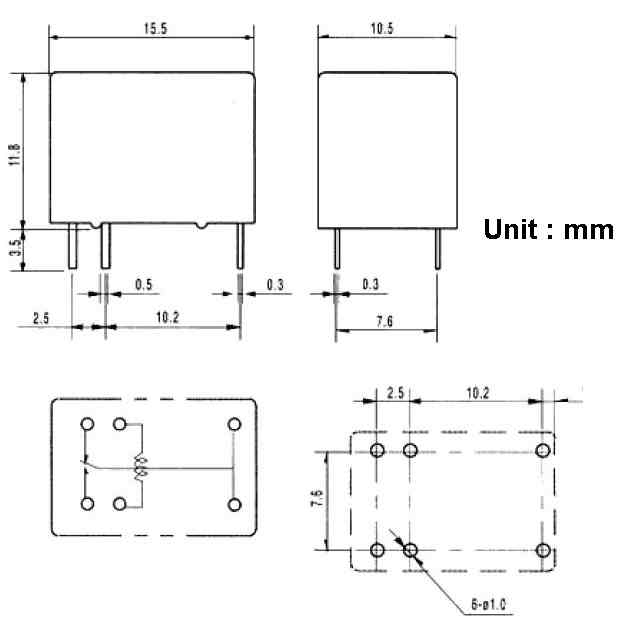

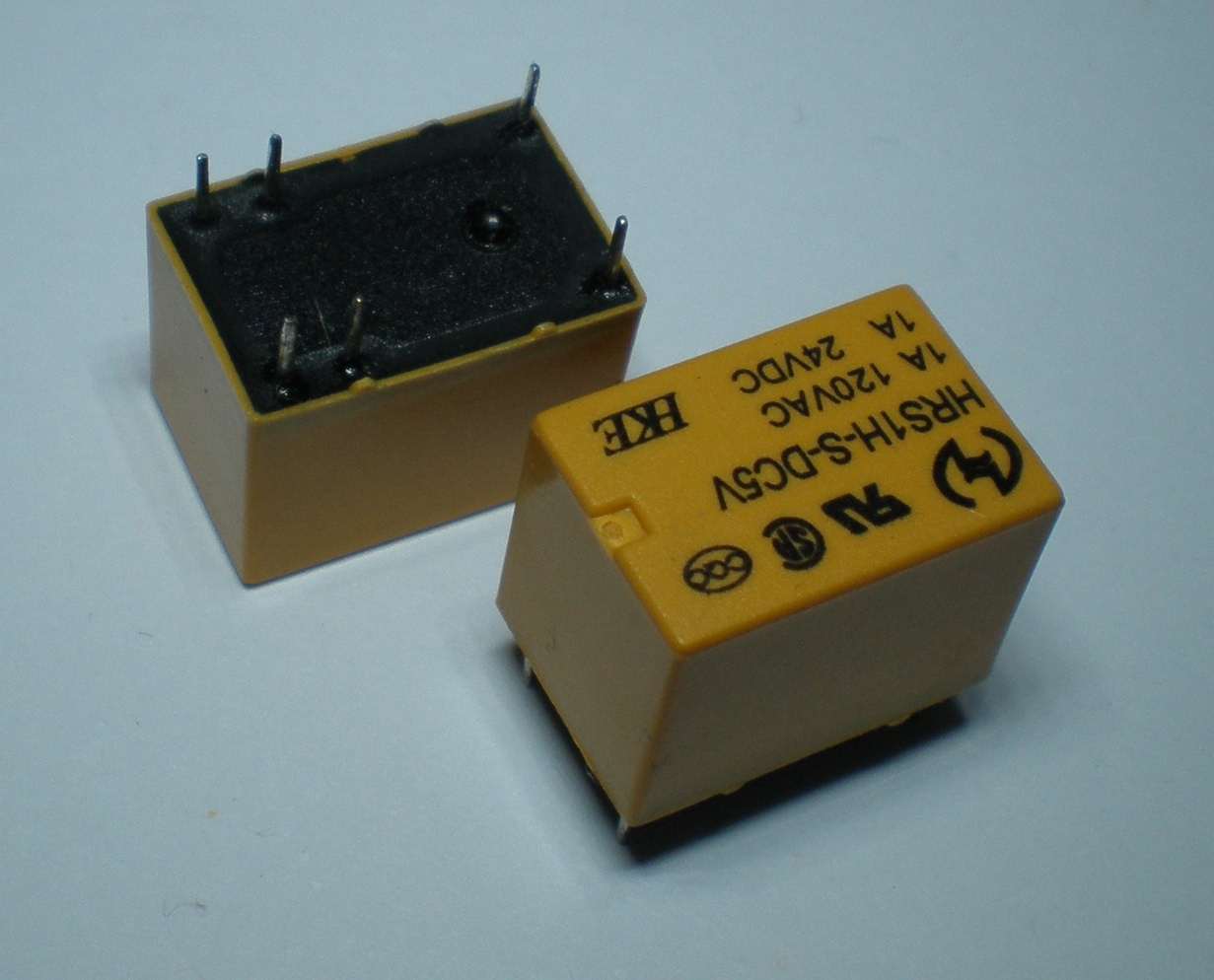

HKE miniature Relay
Pin arrangement
 No. HRS1H-5V

DC 5V coil,  SPDT,
 Contact : 1A 120AC, 1A 24VDC
RM 2.50
No. HRS1H-12V

DC 5V coil,  SPDT,
 Contact : 1A 120AC, 1A 24VDC
RM 2.50

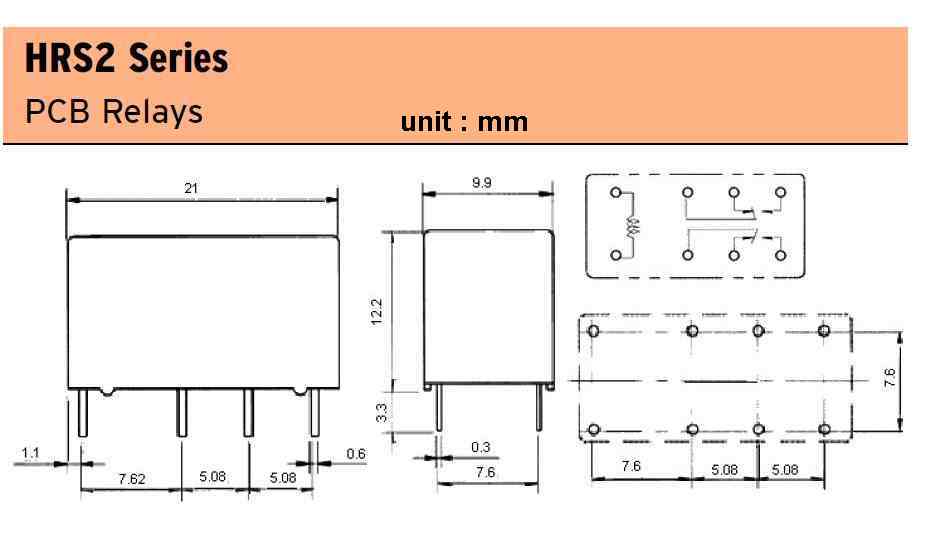

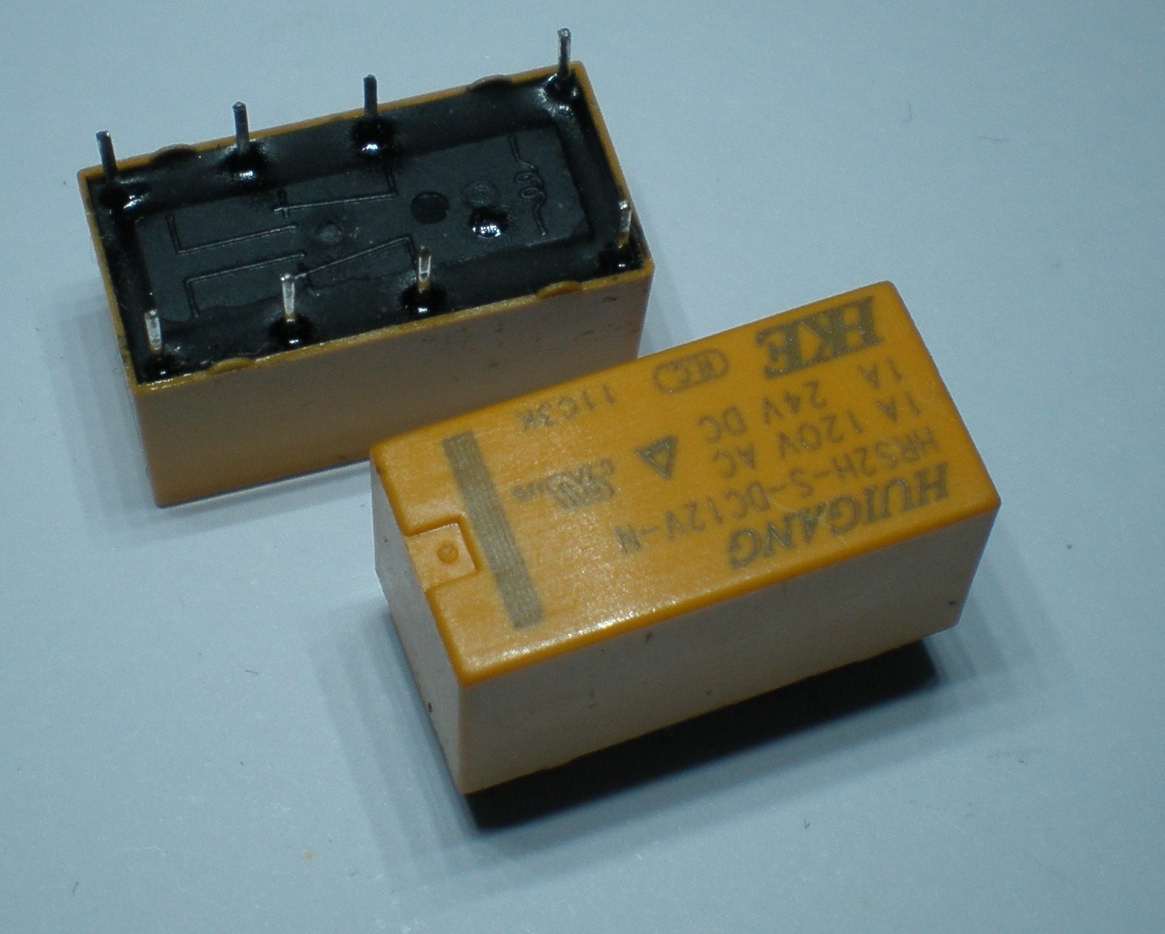

HKE miniature RelayPin arrangement  No. HRS2H-5V
 DC 5V coil,  DPDT,
 Contact : 1A 120AC, 1A 24VDC
RM 3.00
 No. HRS2H-12V
 DC 12V coil,  DPDT,
 Contact : 1A 120AC, 1A 24VDC
RM 3.00

SWITCHES & PUSH BUTTONS

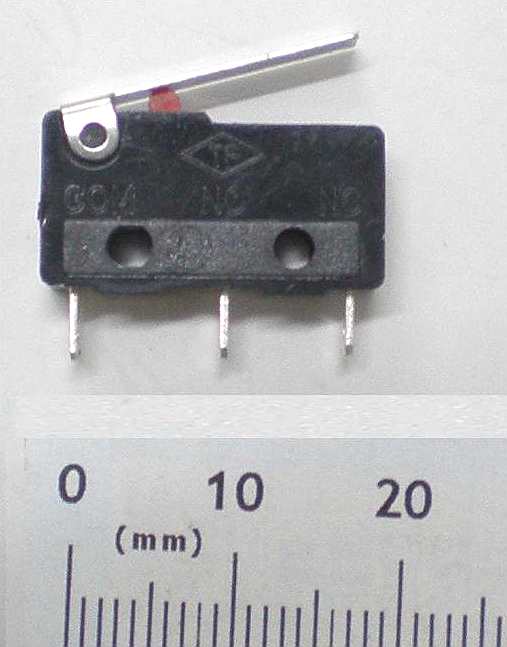

Micro Switch with lever
No. KW12-1     (picture)
 Contact : 0.5A, 250VAC
 RM 1.40

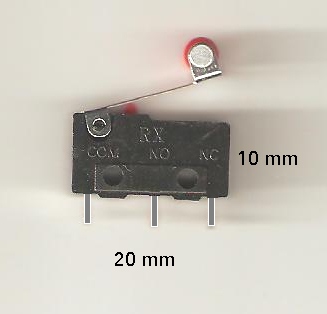

 Micro Switch with lever & roller
No. KW12

 (picture)
 Contact : 3A/250VAC, 5A/125VAC
 RM 2.00

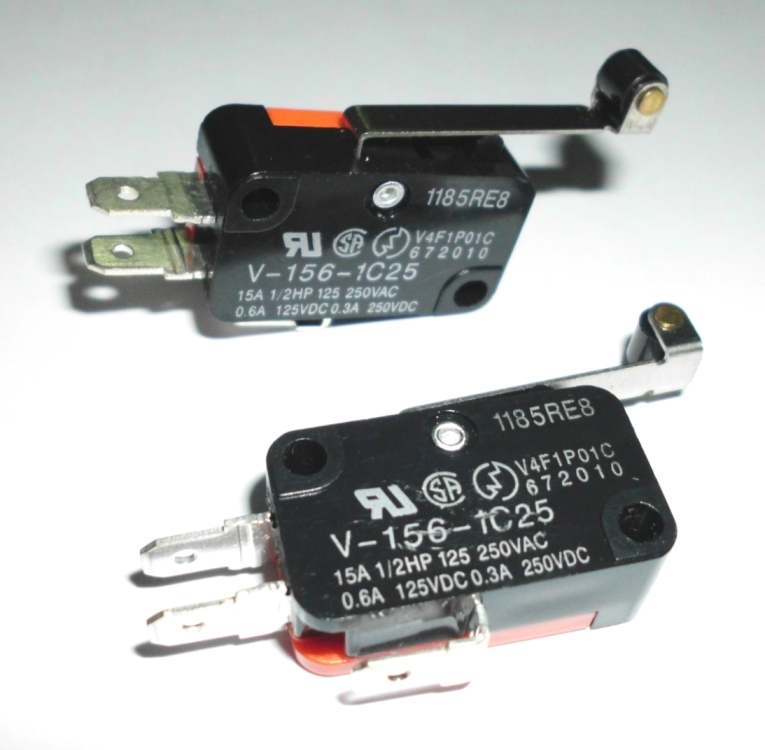

Micro Switch with lever & roller
No. V-156-1C25    (picture)
 Contact : 15A, 250VAC
 RM 3.50
single contact,
Normally open

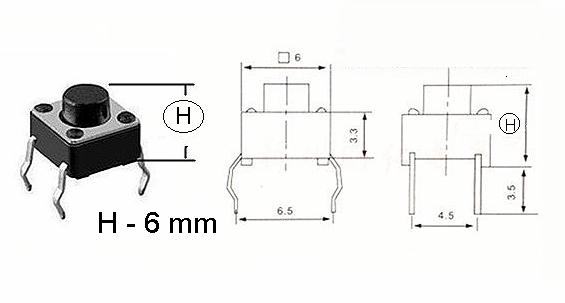

Tact Switch
4 terminal
Ref : TS-6654
RM 0.35

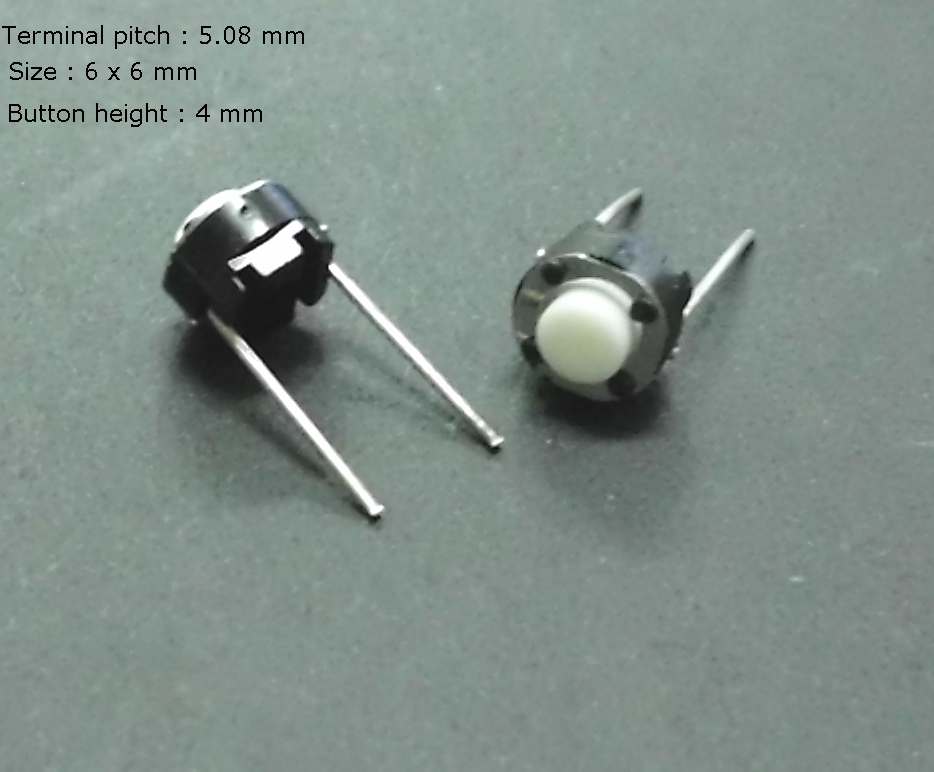

Tact Switch
2-terminal
Ref : TS-6642
RM 0.35

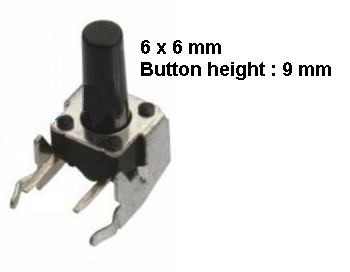

2-pin Side Button Tact Switch



Single contact,  Normally open,


Ref : TS-6692S
RM 0.50

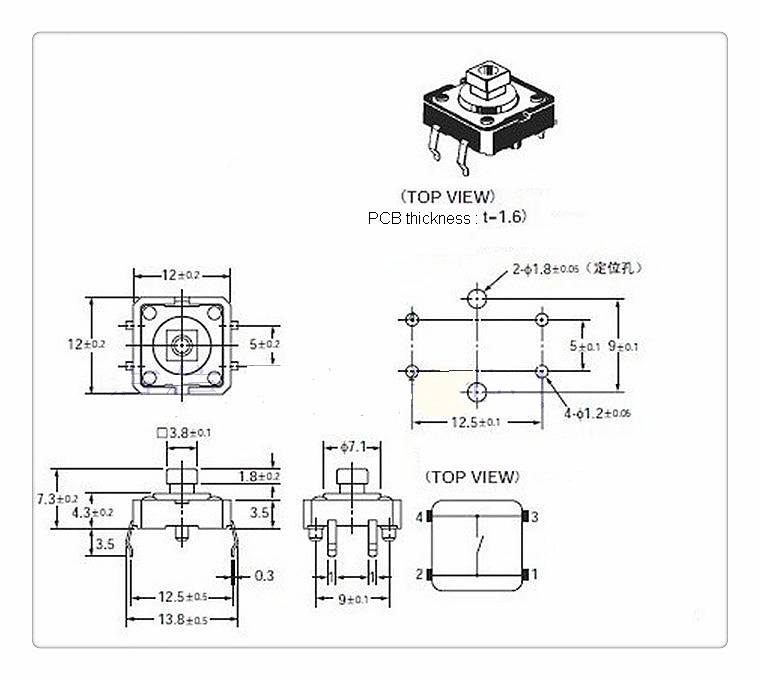

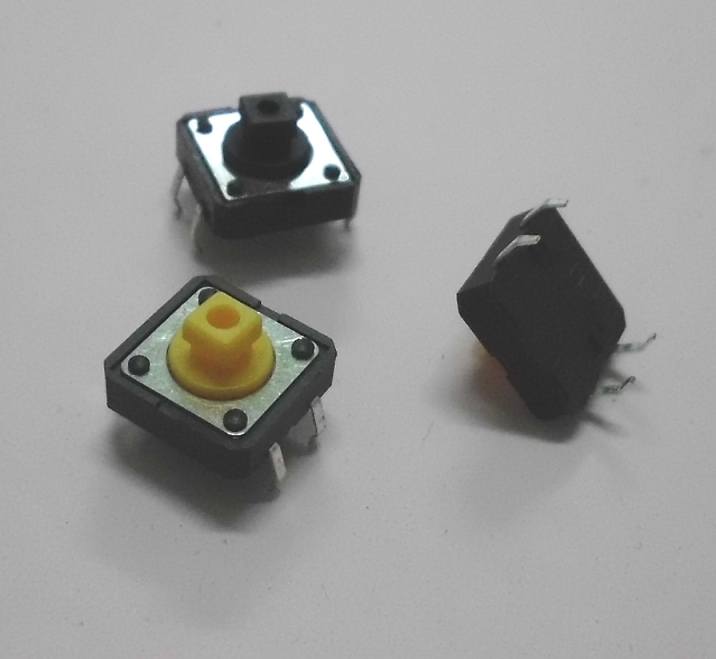

4-pin Large tact switches

No. B3F-4055       RM 0.65

Dimensions
(Normally yellow. sometimes balck. Ship randomly)

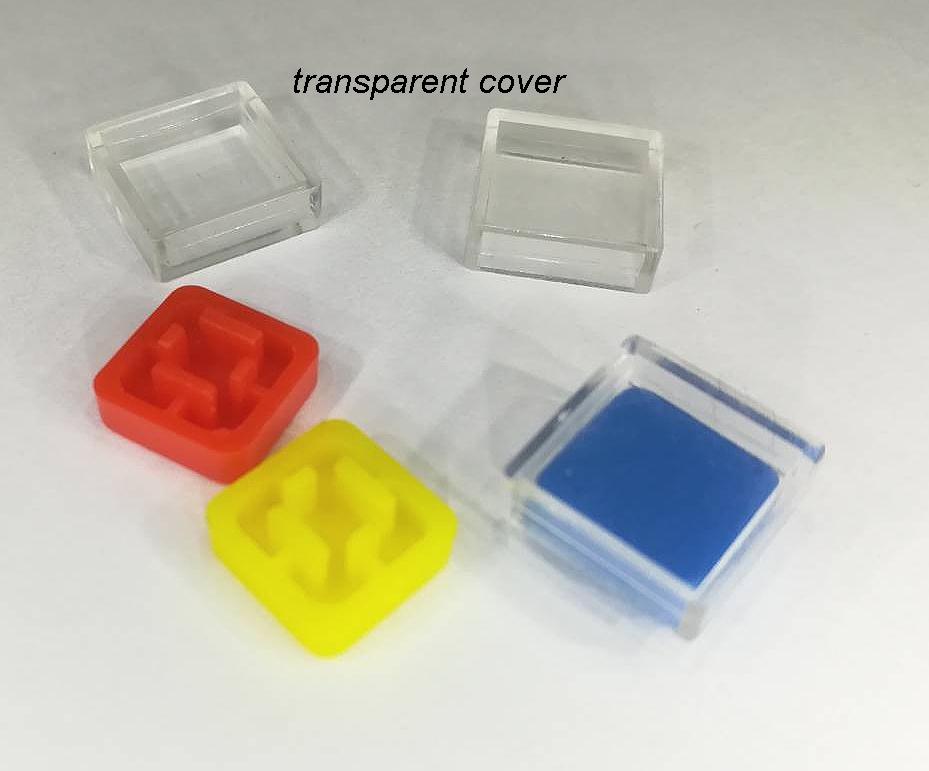

Square plastic caps with cover
for B3F-4055 tact switch


No. 1273S          RM 0.40

Available in blue, red & yellow
Please specify color required
(randomly shipped if not specified)

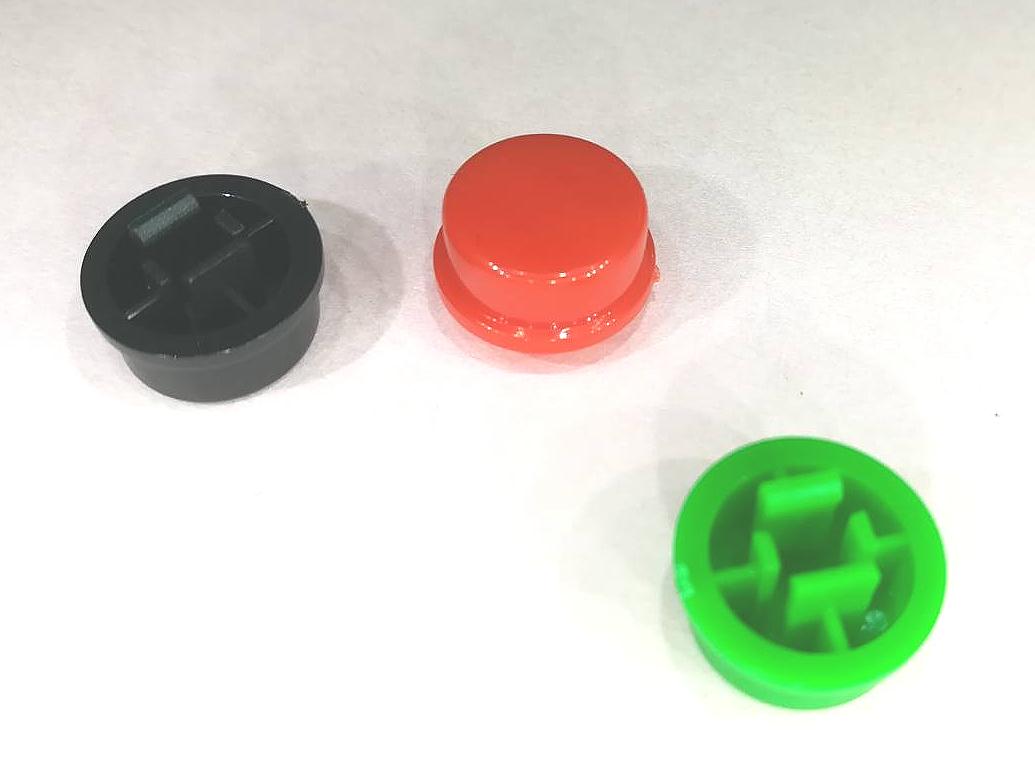

Round color caps
for tact switch B3F-4055

No. 1273R             RM 0.35

Available in black, red & green.
Please specify color required
(randomly shipped if not specified)




SLIDING SWITCH

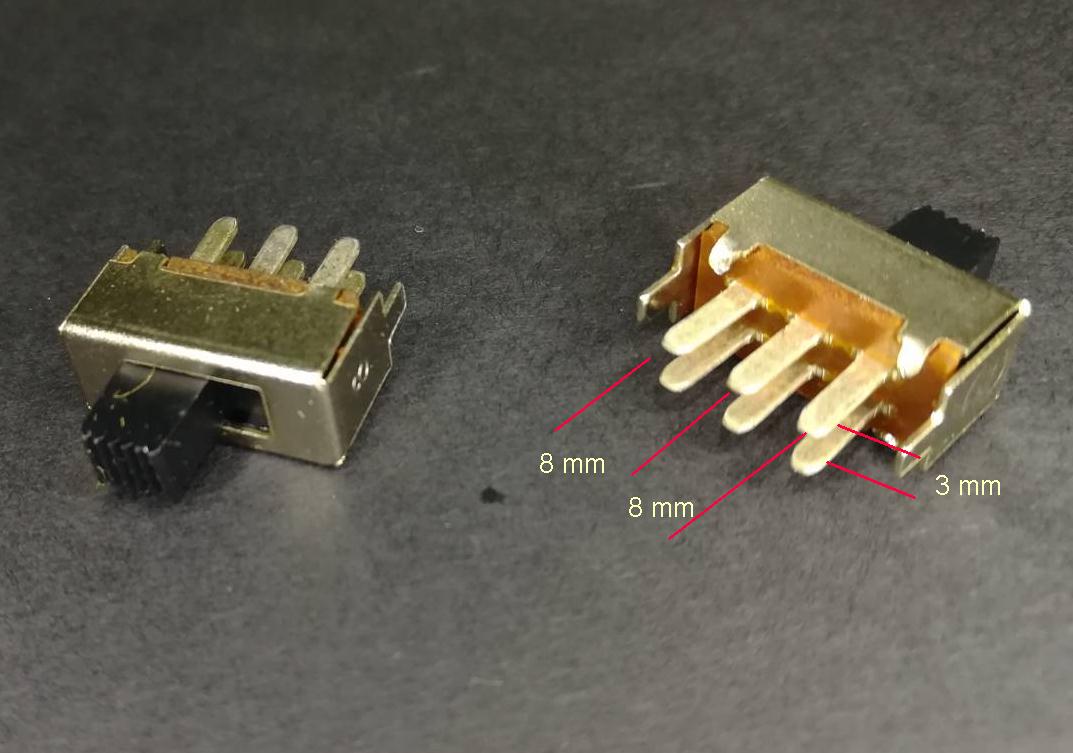

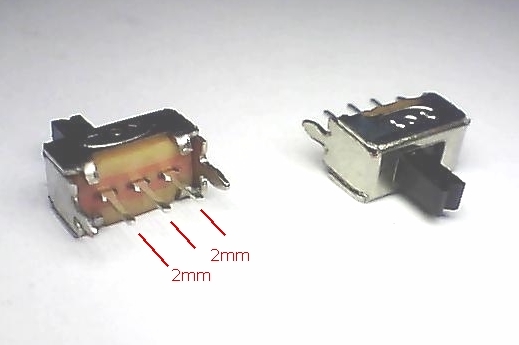

SPDT Miniature slide switch
(with PCB mounting pins)
( 2 mm pitch )


No. SS12D1

RM 0.40

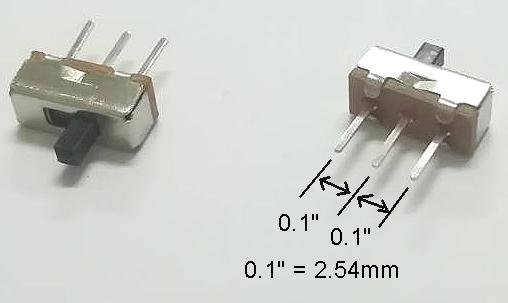

 SPDT Miniature slide switch
(with PCB mounting pins)
( 2.54 mm pitch )
(fits 2.54 Vero boards)

No. SS12D0

RM 0.50

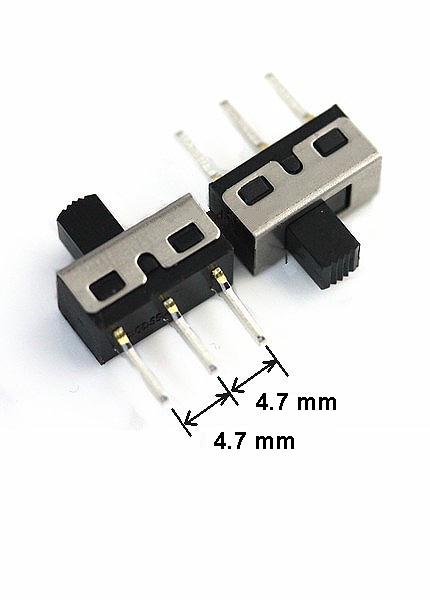

3A SPDT slide switch
(with PCB mounting pins)
( 4.7 mm pitch )  3A/250V


No. SS12D3

RM 0.65

DPDT slide switch

No. SS2201

RM 0.60

 DPDT Miniature slide switch
(with PCB mounting pins)
(fits 2.54 Vero boards)

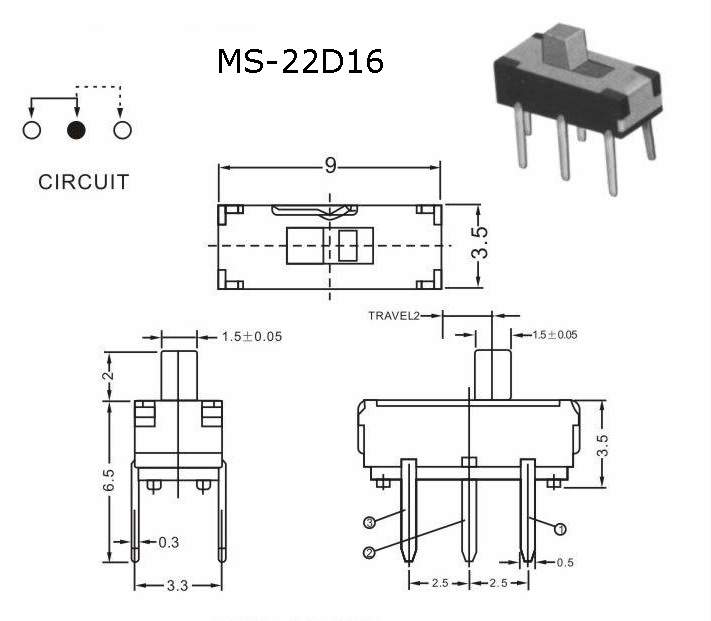

No. MS22D16

RM 0.55

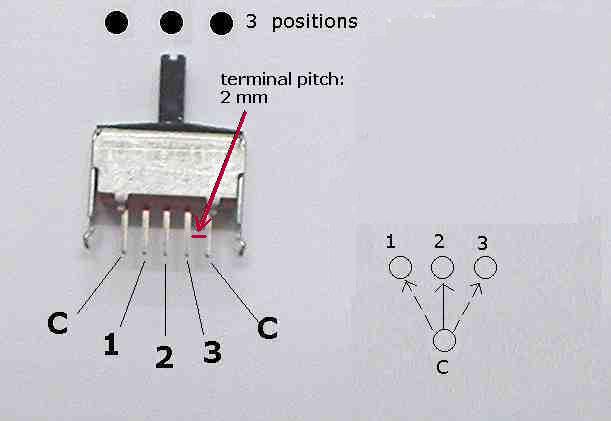

Slide switch
1
pole 3-throw



5-terminal
No. SS1301

RM 0.70

PUSH BUTTON SWITCH

Large Push button Switch  (NO)
normally open,   (push -> ON)
Contact : 3A / 250V
(please specify colour when ordering)

Green or Red

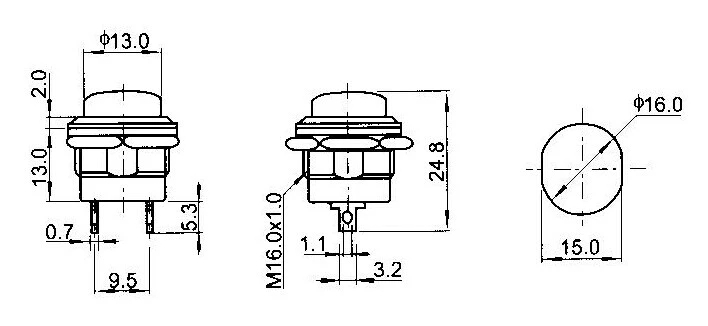

Dimensions
RM 2.30        Ref : R13-507


(momentary)

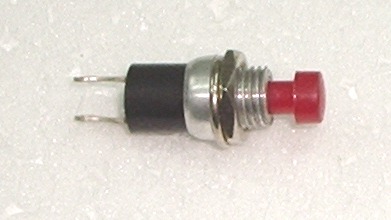

Push button Switch  (NO) normally open   (push -> ON) RM 1.10
Push button Switch  (NC) normally closed (push -> OFF) RM 1.30

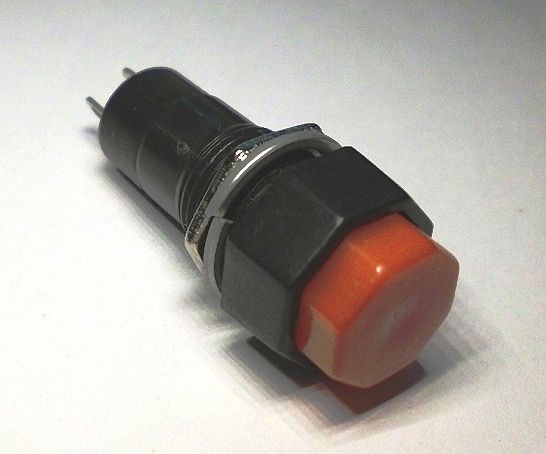

Latching Push Button Switch
 (push->ON,  push-> OFF)

Ref No.
PB-1102L
Made in Taiwan

RM
3.00

PUSH SWITCHES

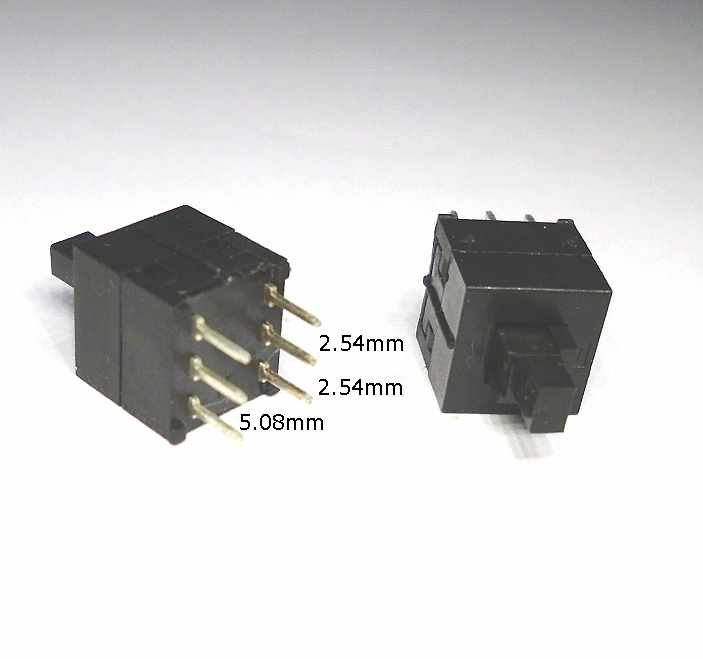

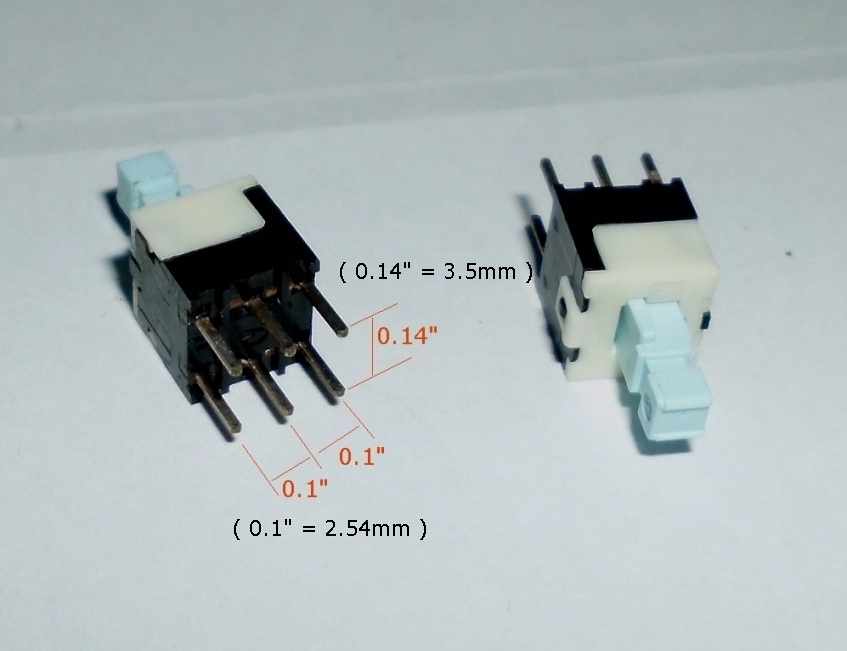

DPDT momentary push switch
(non-latching)

(with PCB mounting pins)
(fits 2.54 Vero boards)



Matching
cap # A06


Ref No.
PS-1201M
RM
0.55

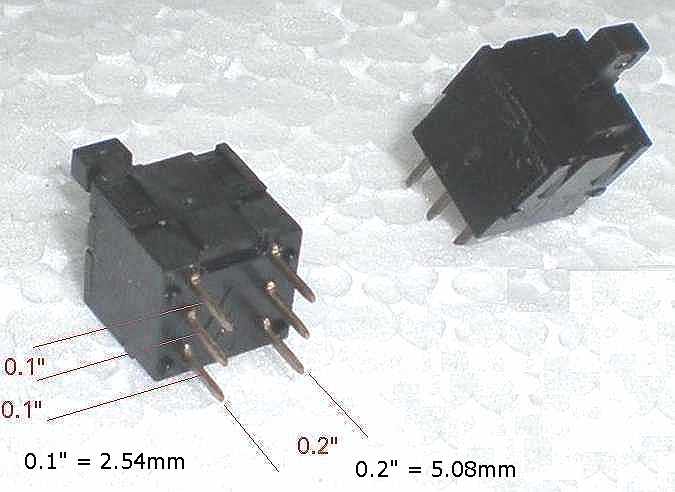

DPDT momentary push switch
(non-latching)
(with PCB mounting pins)


Ref No. PS-1202M
RM
0.50

DPDT latching push switch

(push->ON,  push-> OFF)
(with PCB mounting pins)
(fits 2.54 Vero boards)




Matching
cap # A06
Ref No. PS-1201L
 RM 0.55

ROCKER SWITCHES

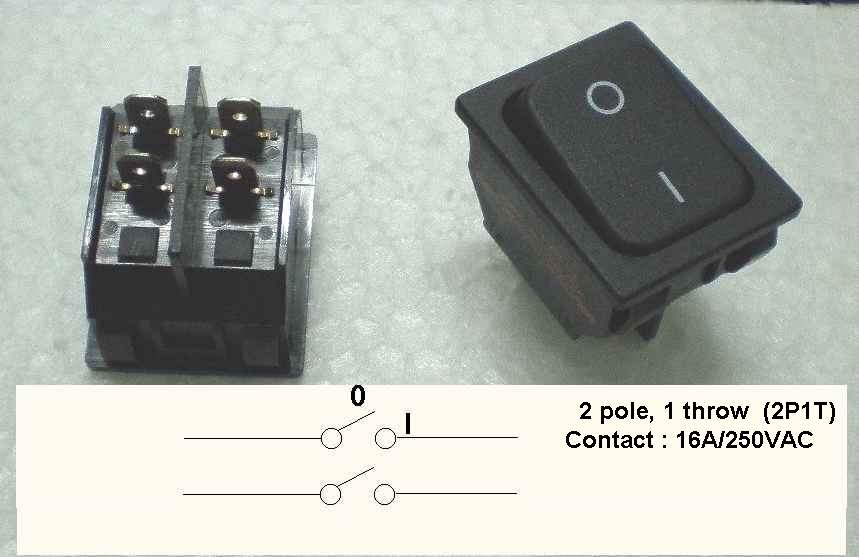

Rocker Switch
2 pole, 1 throw  (2P1T)

Ref No. 1832

RM
4.00

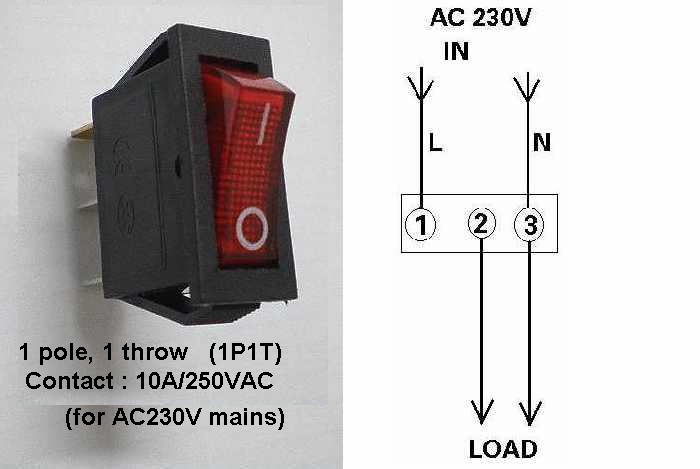

Rocker Switch with neon lamp
1
pole, 1 throw   (1P1T)

Ref No. 0946
RM 3.50

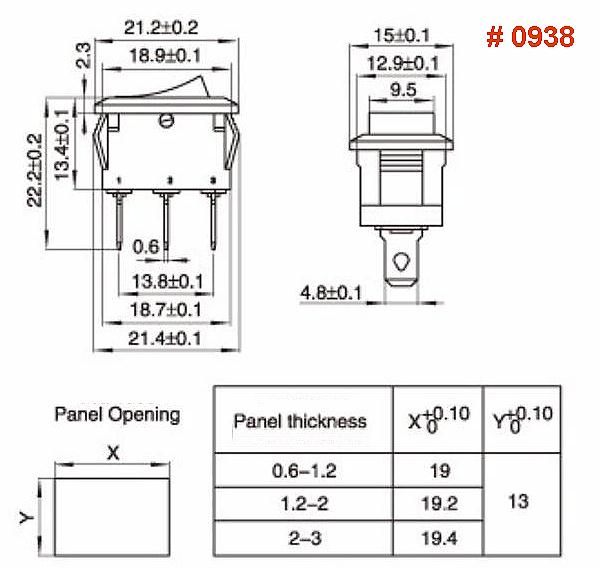

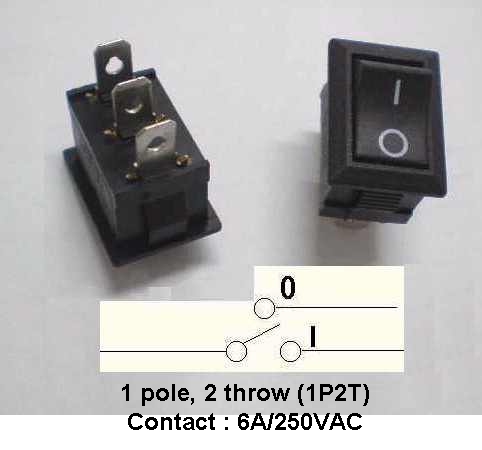

Rocker Switch
1 pole, 2 throw (1P2T)

Ref No. 0938
RM 1.75

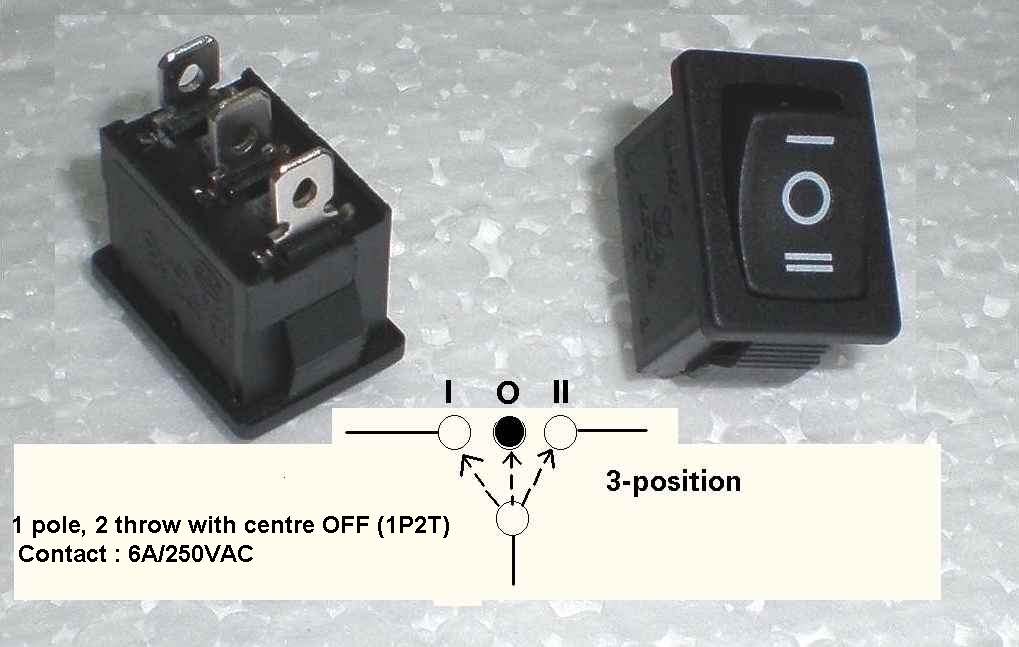

3-Position Rocker Switch
1 pole, 2 throw with
centre OFF
(1P2T)

Ref No. 0937

RM
 2.00



TOGGLE & ROTARY SWITCHES

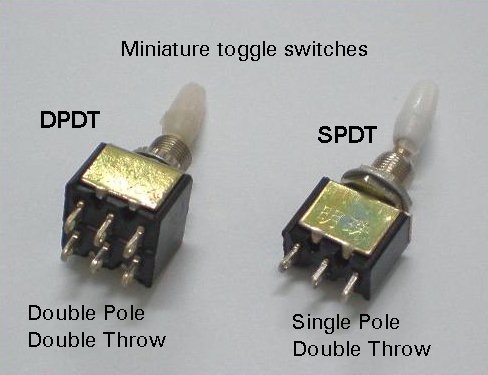

Miniature Toggle Switch

1 pole, 2 throw  (1P2T) No. 0914
RM 1.20
2 pole, 2 throw  (2P2T)   No. 0915
RM
1.35

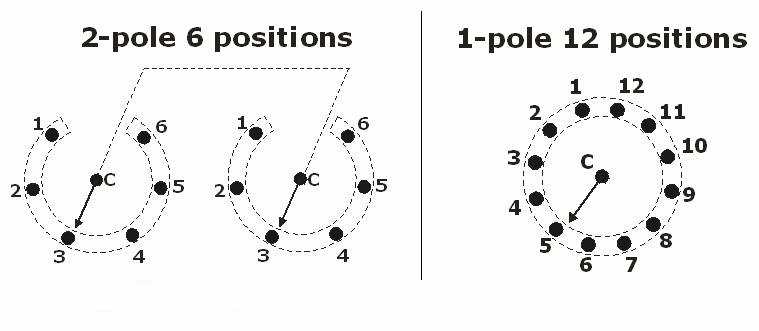

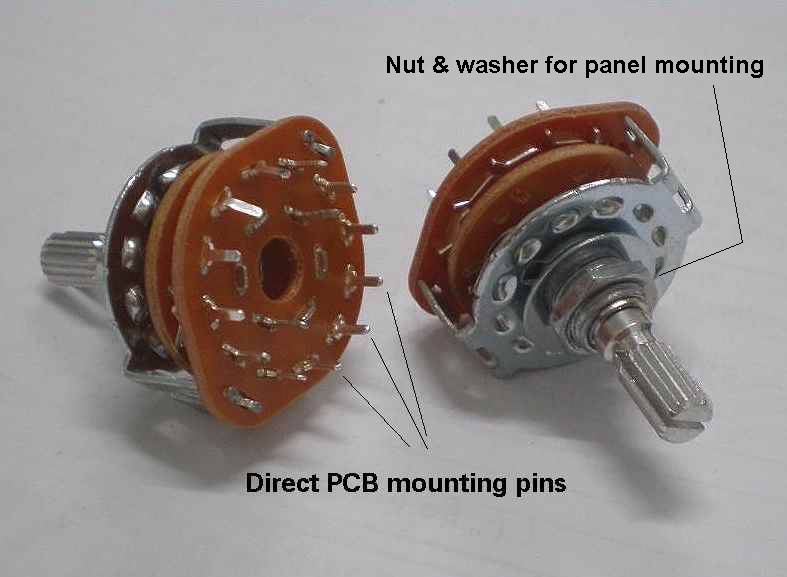

Rotary Switch
(with PCB mounting pins)

No. 0524-1P12T
pole, 12 position

RM 4.50

No. 0524-2P6T
pole,  6 position

RM 4.50

No. 0524-3P4T
pole,  4 position

RM 4.50

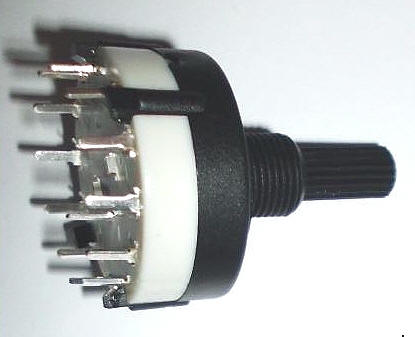

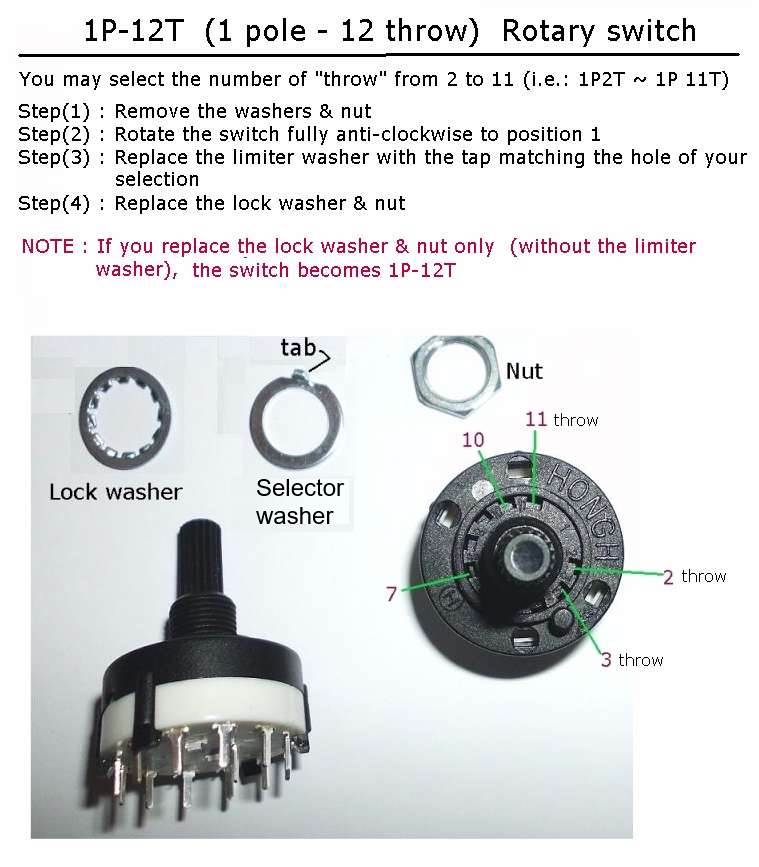

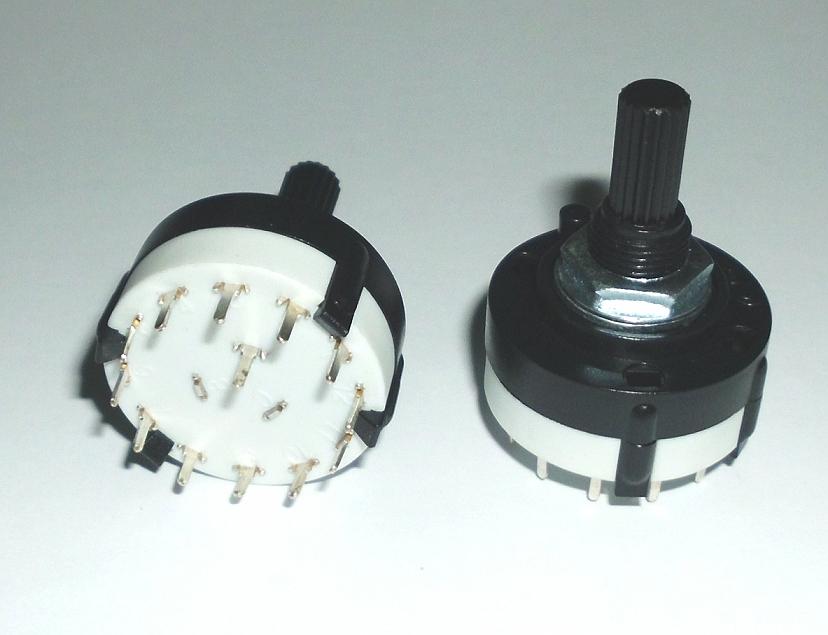

Plastic  Rotary Switch
(with PCB mounting pins)
Pin-out diagram
No. 0026-1P12T
pole, 2,3,4,...,12 position
(selectable from 1P2T ~ 1P12T)

 RM 4.00

No. 0026-2P6T

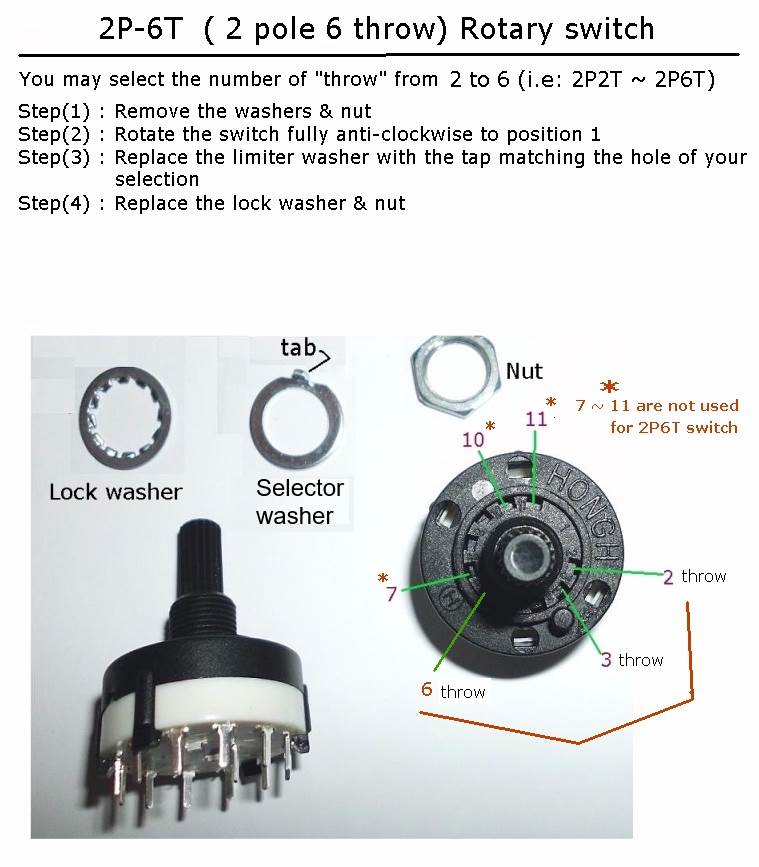

pole, 2,3,4,5,6 position
(selectable from 2P2T ~ 2P6T)

 RM 4.00



KNOBS,  MAGNETIC SWITCHES

Magnetic  Switch for security alarm system


RM
5.50  / pair

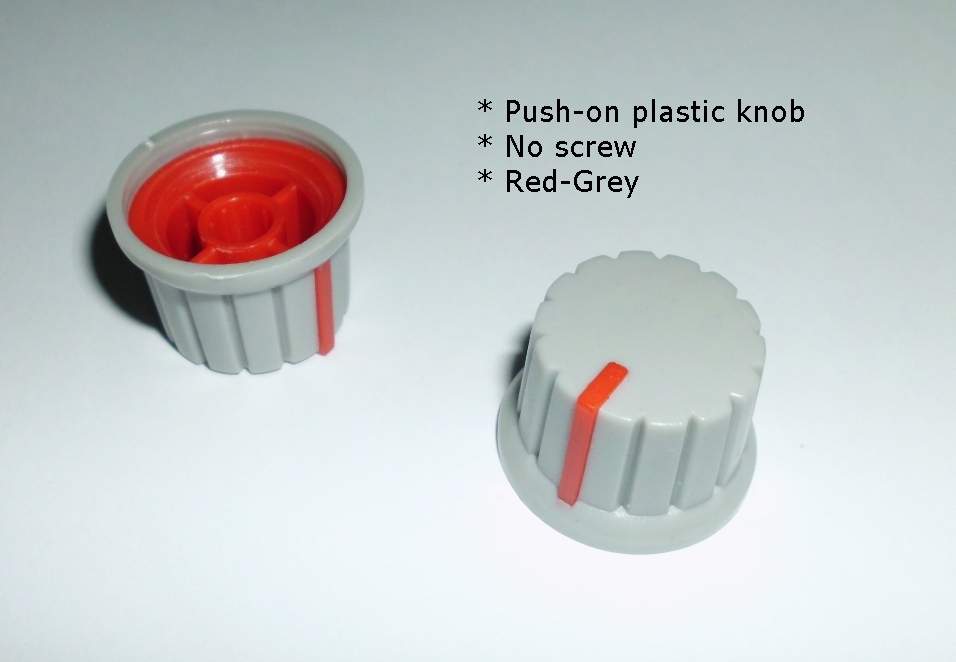

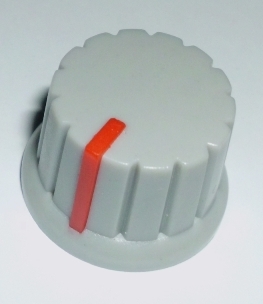

Plastic knobs

for rotary switches & pots

(H:15mm,  Dia.: 24mm)


 No. 2415       RM 1.10

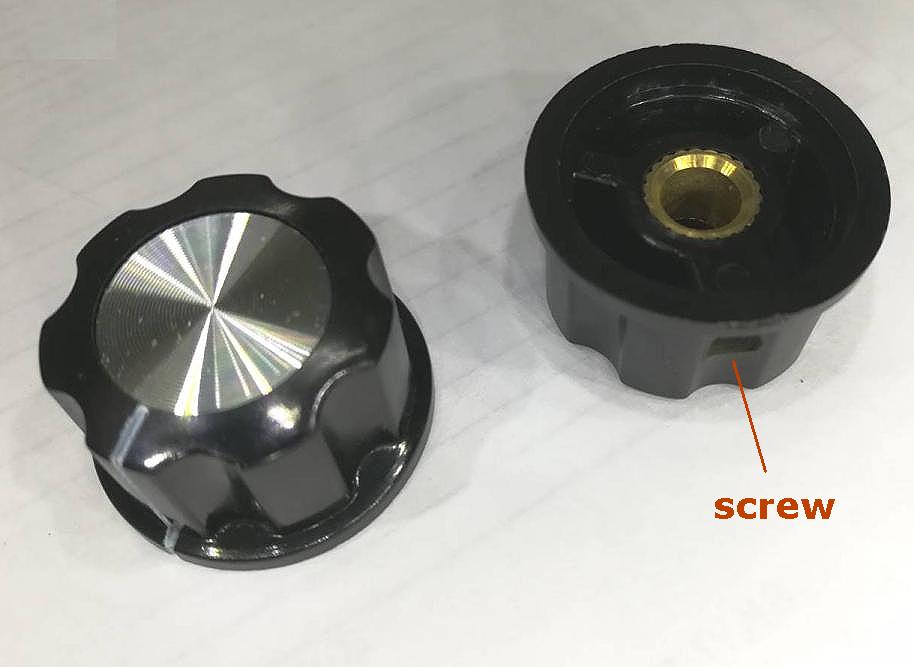

Plastic Knob

for rotary switches & pots
 (H:15mm,  Dia.: 27mm)



No. MFA03     RM 1.20

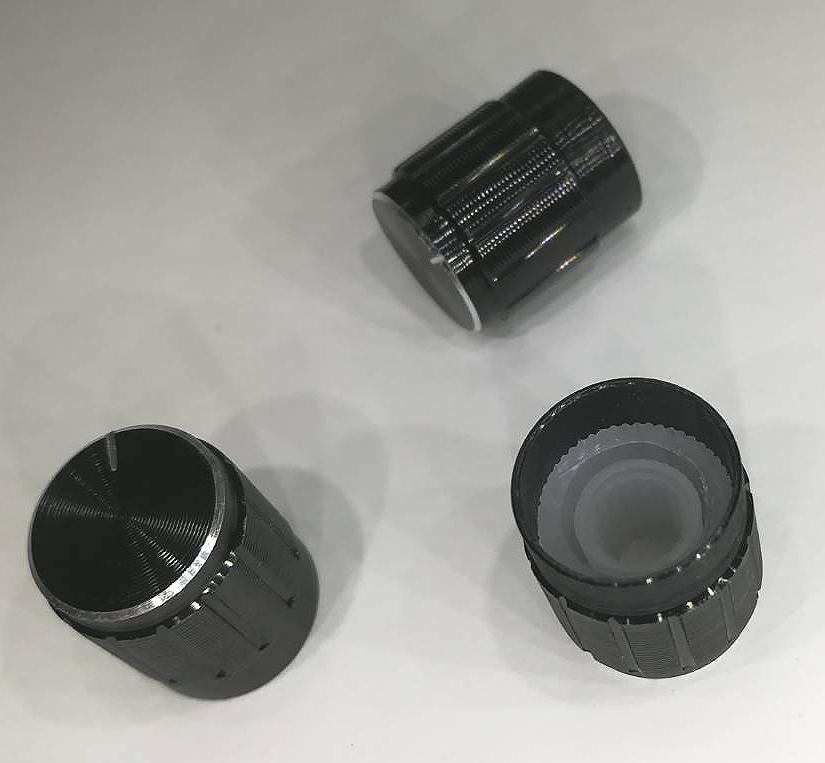

Aluminium Knob

for rotary switches & pots
 (H:17mm,  Dia.: 15mm)


No. A-1517     RM 1.30

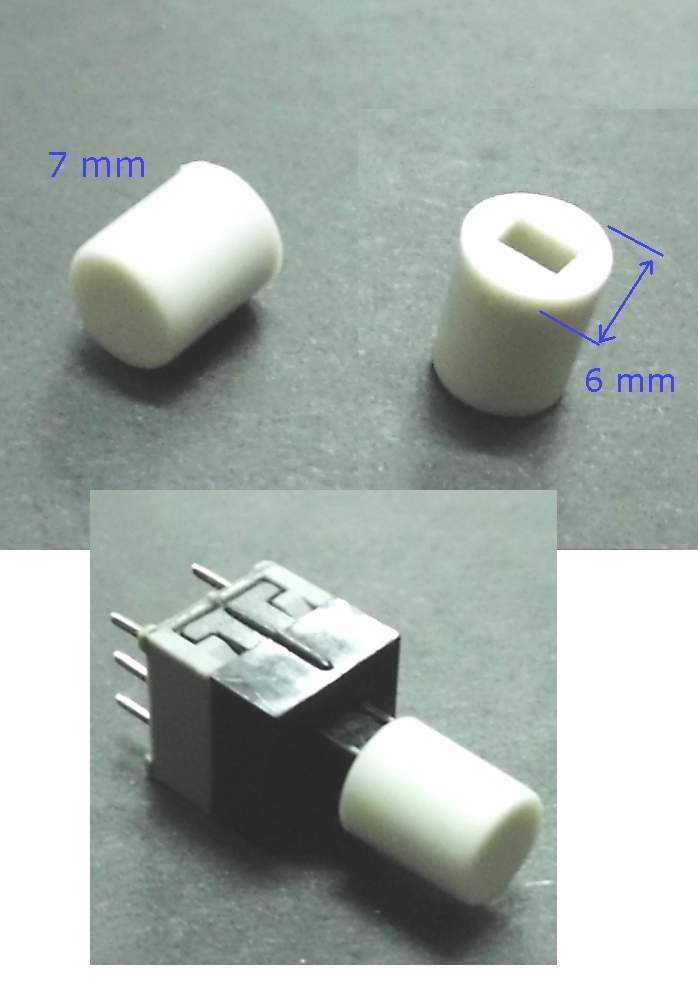

Small Plastic cap
for push switches

No. A06    RM 0.25
(grey color)
