Project  # 01

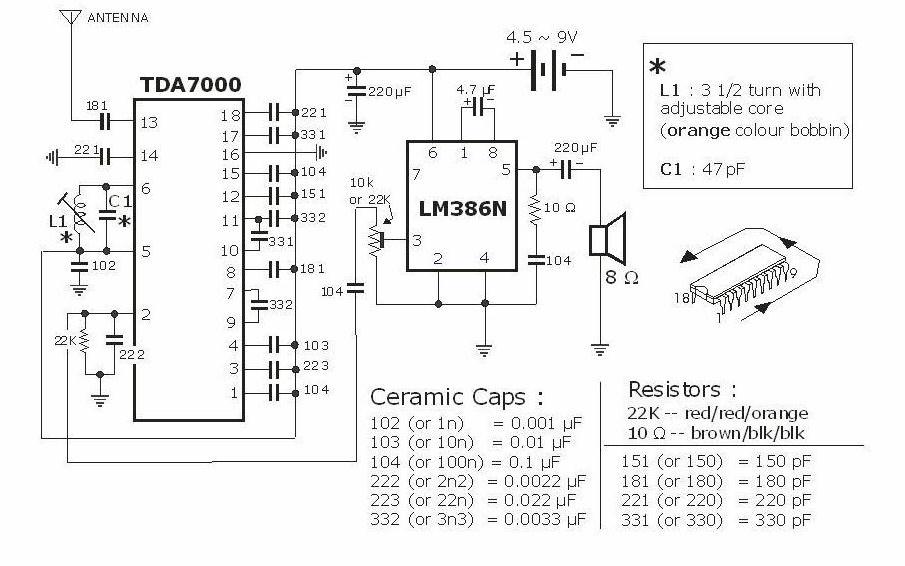

FM Radio Using TDA7000 & LM386 ICs
    MORE projects
$ Price List $

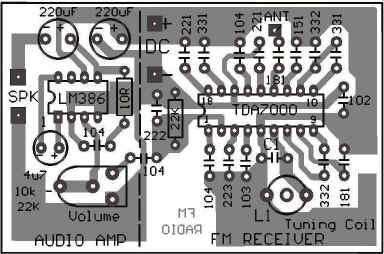

PCB layout as viewed from the component  side
Click on picture to enlarge

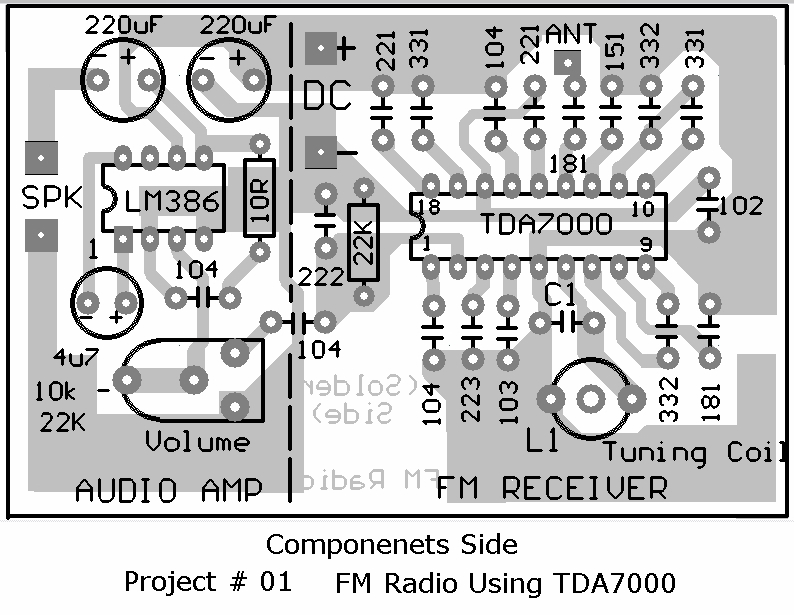

Parts Layout




Click on picture to enlarge

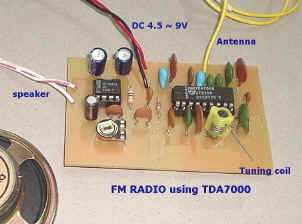

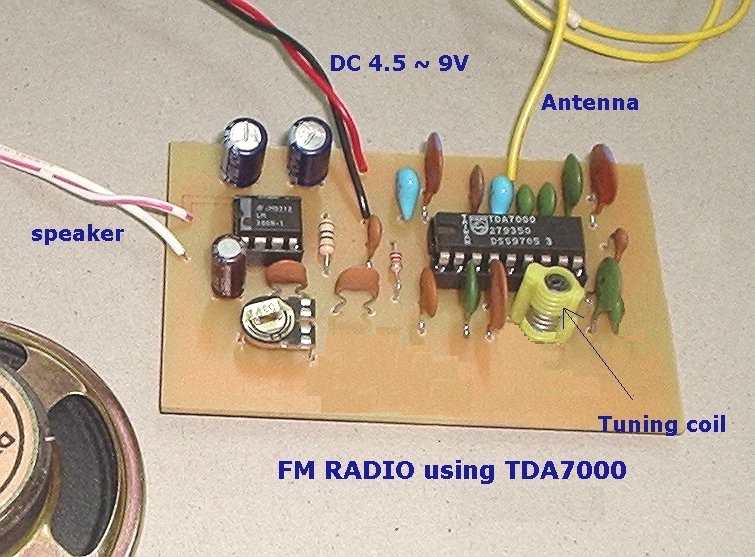

Picture of the completed FM radio

PARTS LIST
(the following components will be included in the package unless otherwise stated)

IC1 : TDA7000  FM Radio IC
IC2 :  LM386 Audio Power Amplifier IC
18-pin socket -- (for TDA7000)
 8-pin socket -- (for LM386)
Ceramic  capacitors :
0.001  uF (#102 or  1n) -- x 1 pc
0.01   uF (#103 or 10n) -- x 1 pc
0.1    uF (#104 or 100n)-- x 4 pcs
0.0022 uF (#222 or 2n2) -- x 1 pc
0.0033 uF (#332 or 3n3) -- x 2 pcs
0.022  uF (#223 or 22n) -- x 1 pc
150 pF    (#151 or 150) -- x 1 pc
180 pF    (#181 or 180) -- x 2 pcs
220 pF    (#221 or 220) -- x 2 pcs
330 pF    (#331 or 330) -- x 2 pcs
Electrolytic capacitors : (10V min)
220uF or 470uF or 1000uF --- x 2 pcs
4.7uF  ------------- X 1 pc
Preset
10K  (or 15K, 20K or 22K)   (trim pot)

C1 --- Ceramic cap  (see
* schematic)
L1 --- Adjustable coil -- for tuning broadcast stations
Resistors
10Ω  1/4W or 1/6W  ---  x 1 pc
22K  1/4W or 1/6W  ---  x 1 pc

Miscellaneous items :

  • 2 ft wire (antenna)
  • 8 Ohm dynamic speaker
  • 9V battery snap ( 9V battery not included )
Download PCB artwork for this project (pdf)
IMPORTANT note on printing the artwork :  Open the pdf file with Acrobat Reader. Use a laser printer to print the artwork on tracing paper *  in true size (i.e., : do not enlarge or shrink the artwork). The printed artwork can be used for direct exposure with UV sensitized pcb such as the Kinsten PP-1530.
(* tracing paper is the type of translucent paper used by architect for drawing plans. It's much cheaper than OHP transparency)



Related links :  About TDA7000 FM radio IC
